TB WOODS 6H Sure-Flex Plus Sleeve Coupling Insert, Size 6, 6000 RPM | AG3EEM 32ZP98

TB WOODS 6H Sure-Flex Plus Sleeve Coupling Insert, Size 6, 6000 RPM

Item: AG3EEMModel: 6HCross Ref: 32ZP98
7 In Stock

Ships within 2 days via

€276.60
10.00% off
€248.94 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Sure-Flex Sleeve
Angular Misalignment 0.25°
Application Compressors, Conveyors, Electric Motors, Fans/Blowers, Mixers, Pumps
Body Style 6H
Coupling Size 6
Features 4-Way Flexing Action Absorbs Shock, Misalignment And End Float, Vibration
For Misalignment Type Angular, Axial, Parallel
Horsepower @ 100 Rpm 2.9 hp
Horsepower @ Rpm 100 Hp @ 3, 500 Rpm, 33 Hp @ 1, 160 Rpm, 50 Hp @ 1, 750 Rpm
Hp Rating @ 100 Rpm 2.9 hp
Hp Rating @ 100 Rpm 2 9/10 hp
Hp Rating @ 1200 Rpm 34.27
Hp Rating @ 1200 Rpm 34 27/100 hp
Hp Rating @ 1800 Rpm 51 hp
Hp Rating @ 3600 Rpm 99 hp
Insert Construction One Piece Solid
Insert Design One-Piece Solid
Insert Material Hytrel
Insert Width 1 7/8"
Material Hytrel
Max. Angular Gap Misalignment 0.016"
Max. Angular Misalignment 0.25°
Max. Parallel Misalignment 0.01"
Max. Speed 6000 RPM
Maximum Operating Temperature 250°F
Minimum Operating Temperature -65°F
Operating Temp. -65°F to +250°F
Outside Diameter 3 3/4"
Parallel Misalignment 0.01"
Rated Torque 1800 lbs.-in.
System Of Measurement Imperial
Torsional Stiffness 10000 lbs.-in./deg.
Width 1 22/25"

Shipping Info:

Ship weight (kg) 0.18
Ship height (cm)5.33
Ship length (cm)11.18
Ship width (cm)10.92
HS code8483608000

Product Details:

    • TB Wood's 6H coupling sleeve designed for transmitting torque and accommodating shaft misalignment in blowers, compressors, pumps & motors
    • Features exceptional torsional flexibility with 4-way flexing action for absorption of shocks, vibrations, misalignments and end floats
    • Features one-piece construction with molded Hytrel (H) for high-torque applications and lubrication-free installation
    • ATEX compliant

Product Variants

ProductModelMax. SpeedRated TorqueCoupling SizeInsert MaterialTorsional StiffnessAngular MisalignmentParallel MisalignmentOutside Dia.Price
TB WOODS 3JNS Sure-Flex Plus Coupling Sleeve Insert, Neoprene, Size 3 | AG3DVX 32ZP84 3JNS9200 RPM78 lbs.-in.3Neoprene229 lbs.-in./deg.1°0.01"1 7/8"€25.35
TB WOODS 4JNS Coupling Sleeve Insert, Neoprene, Max. RPM 7600, O.D. 2-5/16 In, Size 4 | AG3DVY 32ZP85 4JNS7600 RPM156 lbs.-in.4Neoprene458 lbs.-in./deg.1°0.01"2.312"€31.79
TB WOODS 5JNS Coupling Sleeve Insert, Neoprene, Max. RPM 7600, O.D. 2 15/16 In, Size 5 | AG3DVZ 32ZP86 5JNS7600 RPM312 lbs.-in.5Neoprene916 lbs.-in./deg.1°0.015"2.938"€39.18
TB WOODS 6JNS Coupling Sleeve Insert, Neoprene, Max. RPM 6000, O.D. 3 3/4 In, Size 6 | AG3DWA 32ZP87 6JNS6000 RPM585 lbs.-in.6Neoprene1718 lbs.-in./deg.1°0.015"-€77.82

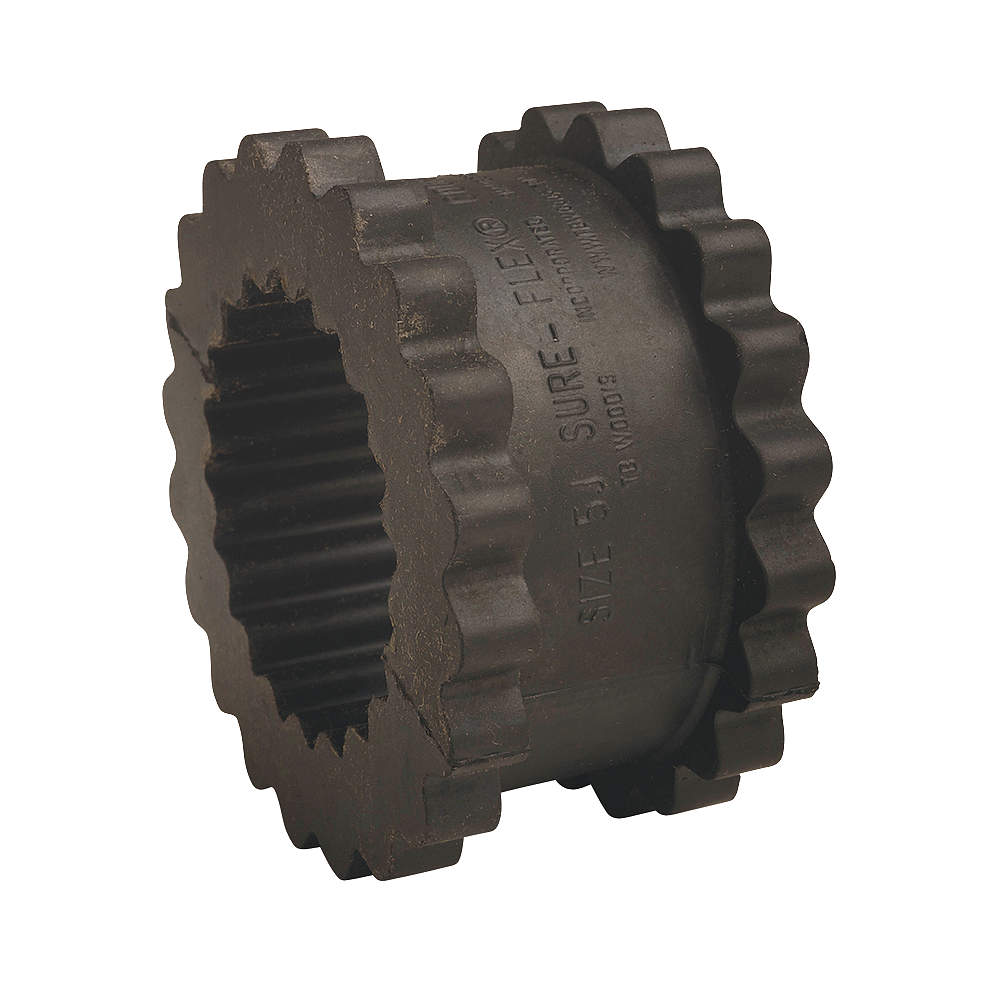

TB WOODS 3J Coupling Sleeve Insert, EPDM, Max RPM 9200, O.D. 1 7/8 In, Rated Torque 78 lb-in | AG3ECW 32ZP54 3J9200 RPM78 lbs.-in.3EPDM229 lbs.-in./deg.1°0.01"1 7/8"€10.28
TB WOODS 4J Coupling Sleeve Insert, EPDM, Max. RPM 7600, O.D. 2-5/16 In, Size 4 | AG3ECX 32ZP55 4J7600 RPM156 lbs.-in.4EPDM458 lbs.-in./deg.1°0.01"2.312"€20.33
TB WOODS 5J Coupling Sleeve Insert, EPDM, Max. RPM 7600, O.D. 2 15/16 In, Size 5 | AG3ECY 32ZP56 5J7600 RPM312 lbs.-in.5EPDM916 lbs.-in./deg.1°0.015"2.938"€40.93
