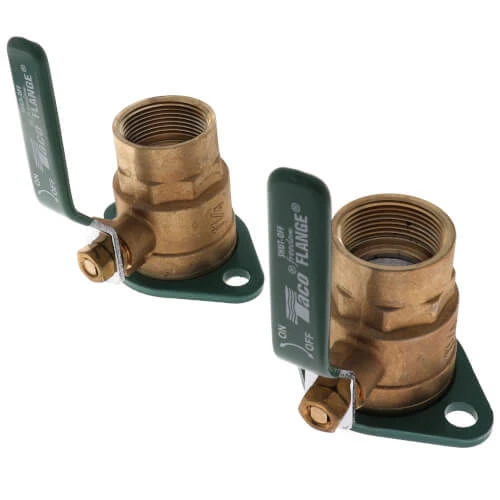

TACO SFL-125T Isolation Flange, 1/4 Inch, Potable Pumps
Item: CU4YATModel: SFL-125TCross Ref: 788GP1
7 In Stock
Ships within 2 days via
10.00% off
€235.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange |
| Compatible Bolt Size | 1/2" |
| Compatible Pipe Size | 1/4" |
| Compatible With Brand | Taco |
| Compatible With Manufacturer Model Number | 0010, 0010-F3-1Ifc, 0011, 0011-F4, 0012, 0013, 0014, 0015, 0015-Mssf3-Ifc, 0015E3, 0018E, 0026E, 0034E, 0034Eplus, 005, 006, 006-Bc7-Ifc, 007, 007E, 008, 008-F6 007-F5, 009, 110, 111, 112, 113, 2400-10, 2400-20, 2400-45, Vb1016-Hy2-4C2A00, Vm1816-Hy2-4C2A00, Vm1816-Hy2-Fc2A00, Vr1816, Vr1816-Hy2-Fc2A00, Vr2218, Vr3452 |
| Compatible With Pump Type | In Line Circulating Pumps |
| Compatible With Series | 0010, 0011, 0012, 0013, 0014, 0015, 0015E3, 0018E, 0026E, 0034E, 0034Eplus, 005, 006, 007, 007E, 008, 009, 110, 111, 112, 113, 2400 10, 2400 20, 2400 45, Vr1816, Vr2218, Vr3452 |
| Compatible With Series Family | 00, 0015E3, 0018E, 0026E, 0034E, 0034Eplus, 007E, 2400, VR1816, VR3452 |
| Fits Brand | Taco |
| Flange Gasket Material | PTFE |
| Flange Material | Brass, Steel |
| Flange To Pipe Connection Type | FNPT |
| Flange Type | Isolation |
| For Pipe Size | 1/4" |
| For Use With Grainger Part No. | 33HM87, 44ZD49, 4JB21, 4JB26, 4PC78, 4PC90, 4PC92, 53VF87, 53VF88, 53VF89, 53VF90 |
| For Use With Mfr. Part No. | 0010, 0010-F3-1IFC, 0011, 0011-F4, 0012, 0013, 0014, 0015, 0015-MSSF3-IFC, 0015E3, 0018E, 0026E, 0034E, 0034EPLUS, 005, 006, 006-BC7-IFC, 007, 007E, 008, 008-F6 007-F5, 009, 110, 111, 112, 113, 2400-10, 2400-20, 2400-45, VB1016-HY2-4C2A00, VM1816-HY2-4C2A00, VM1816-HY2-FC2A00, VR1816, VR1816-HY2-FC2A00, VR2218, VR3452 |
| For Use With Potable Systems | Yes |
| Includes | Bolts, Nuts |
| Max. Ambient Temp. | 240°F |
| Max. Operating Pressure | 150 psi |
| No. Of Mounting Holes | 2 |
| Number Of Mounting Holes | 2 |
| Pump Type | In-Line Circulating Pump |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 1.71 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Model | Pump Type | For Pipe Size | Flange Material | For Use With Potable Systems | Compatible Pipe Size | Max. Ambient Temp. | Flange To Pipe Connection Type | Flange Gasket Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 816009-111K | In-Line Circulating Pump | 1 1/2" | Cast Iron | No | 1 1/2" | 225°F | FNPT | EPDM | 2 | €67.05 | |
| 816009-211K | In-Line Circulating Pump | 1 1/2" | Cast Iron | No | 1 1/2" | 225°F | FNPT | EPDM | 2 | €67.05 | |
| 804301-111K | In-Line Circulating Pump | 1 1/2" | Cast Iron | No | 1 1/2" | 225°F | FNPT | EPDM | 2 | €117.31 | |
| 816009-841K | Inline Circulating Pump | 1 1/2" | Bronze | Yes | 1 1/2" | 225°F | FNPT | EPDM | 2 | - | RFQ
|
| 804300-111K | In-Line Circulating Pump | 1 1/4" | Cast Iron | No | 1 1/4" | 225°F | FNPT | EPDM | 2 | €117.31 | |
| 816011-111K | In-Line Circulating Pump | 1 1/4" | Cast Iron | No | - | 225°F | FNPT | EPDM | 2 | €67.05 | |
| 816011-211K | In-Line Circulating Pump | 1 1/4" | Cast Iron | No | 1 1/4" | 225°F | FNPT | EPDM | 2 | €67.05 |
