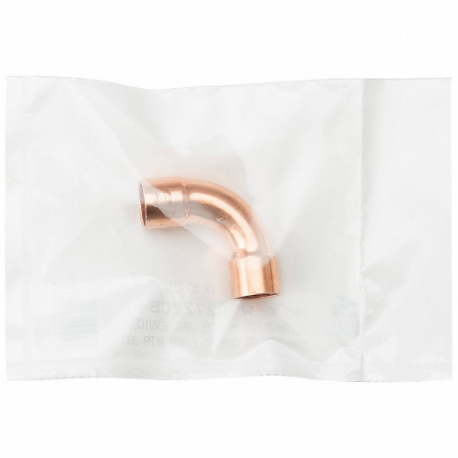

MUELLER STREAMLINE W 02734CB Wrot Copper Pressure Fittings Clean And Bagged, Cup X Cup
Item: CU4TGFModel: W 02734CBCross Ref: 788GY3
7 In Stock
Ships within 2 days via
10.00% off
€14.46 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Medical Gas |
| Fitting Material | Wrot Copper |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 3/4" |
| Fitting Side A Tube Outer Diameter | 7/8" |
| Fitting Side B Connection Type | Cup |
| Fitting Side B Copper Tube Size | 3/4" |
| Fitting Side B Tube Outer Diameter | 7/8" |
| Max. Operating Pressure | 300 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -20°F |
| Overall Length | 2 13/32" |
| Pre-cleaned | Cleaned And Bagged |
| Specific Fitting Shape | 90° Long Radius Elbow |
| Sub-brand | Streamline(R) Fittings |
Shipping Info:
| Ship weight (kg) | 0.57 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overall Length | Fitting Material | Specific Fitting Shape | Max. Operating Pressure | Fitting Side B Connection Type | Fitting Side A Connection Type | Fitting Side B Tube Outer Diameter | Fitting Side A Copper Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| W 40324CB | 31/32" | Cast Bronze | Reducing Tee | 700 psi | Cup | Cup | 3/8" | 1/4" | €20.16 | |
| W 04031CB | 2 13/32" | Cast Bronze | Tee | 700 psi | Cup | Cup | 7/8" | 3/4" | €8.88 | |
| W 04048CB | 3 1/32" | Cast Bronze | Tee | 700 psi | Cup | Cup | 1 1/8" | 1" | €26.43 | |
| W 04043CB | 2 1/4" | Cast Bronze | Reducing Tee | 700 psi | Cup | Cup | 7/8" | 3/4" | €12.68 | |
| W 40102CB | 4 5/8" | Cast Bronze | Tee | 700 psi | Cup | Cup | 2 1/8" | 2" | €87.48 | |
| W 04049CB | 2 5/8" | Cast Bronze | Reducing Tee | 700 psi | Cup | Cup | 1 1/8" | 1" | €26.40 | |
| W 04056CB | 3 5/16" | Cast Bronze | Reducing Tee | 700 psi | Cup | Cup | 1 1/8" | 1" | €32.11 |
