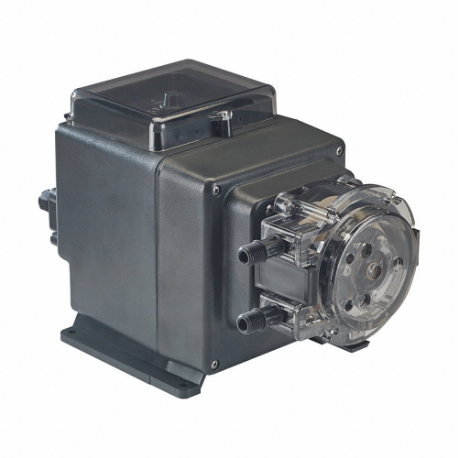

STENNER S3V05AA101NG1 Chemical Metering Pump, 85 gpd
Item: CU4REQModel: S3V05AA101NG1Cross Ref: 790PL6
7 In Stock
Ships within 2 days via
€2,684.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chemical Metering Pump |
| Body Material | Polycarbonate |
| Chemical Metering Pump Type | Peristaltic |
| Compatible Chemicals | Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Phosphoric Acid 100%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water |
| Control Programs | Manual Control |
| Cord Length | 6 ft. |
| Degassing Valve Included | No |
| Discharge Connection Size | 1/4" |
| Discharge Connection Type | Tube |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug In |
| Fitting Material | Polypropylene, PVC |
| Flow Rate Control | Variable |
| Flow Rate Output Control | Variable |
| Frequency | 60 Hz |
| Head Material | Polyethylene, Polypropylene |
| Height | 7" |
| Housing Material | Polycarbonate |
| Hp-pumps | 1/16 hp |
| Included | (2) Additional Latches, (3) 1/4 In Ferrules, (3) Connecting Nuts, 20 ft Roll Of Suction/Discharge Tubing, Injection Fitting 25 psi (1.7 bar) Maximum Or Duckbill Check Valve 100 psi (6.9 bar) max, Mounting Bracket, Pump Tube, Weighted Suction Line Strainer |
| Intake Connection Size | 1/4" |
| Intake Connection Type | Tube |
| Length | 10.9" |
| Max. Ambient Temp. | 104°F |
| Max. Discharge Pressure | 25 psi |
| Max. Flow Rate | 85 GPD |
| Max. Hp | 1/16 hp |
| Max. Media Temp. | 104°F |
| Max. Motor Speed | 45 RPM |
| Max. Pressure | 25 psi |
| Max. Viscosity | 1500 cPS |
| Min. Flow Rate | 4.3 GPD |
| Min. Media Temp. | 32°F |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure | Totally Enclosed |
| Motor Enclosure Design | Totally Enclosed |
| Motor Hp | 1/16 hp |
| Motor Mounting Type | Not Applicable |
| Motor Speed | 45 RPM |
| Motor Type | Brushless DC |
| Nameplate Voltage | 120V AC |
| No. Of Feeds | 1 |
| Number Of Feeds | 1 |
| Overall Height | 7" |
| Overall Length | 6 2/5" |
| Overall Width | 10.9" |
| Phase | 1 |
| Priming | Self Priming |
| Pump Speed | 45 RPM |
| Reproducibility | -2% to +2% |
| Reproducibility | -2.0% to +2.0% |
| Reproducibility-pumps | -2% to +2% |
| Roller Material | Polyethylene |
| Self Priming | Yes |
| Suction Lift | 25 ft. |
| Tubing Material | Santoprene |
| Tubing Material-peristaltic Pumps | Santoprene |
| Turn Down Ratio | 201 , 20:1 |
| Turn Down Ratio | 20:1 |
| Width | 6 2/5" |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 27.69 |
| Country of Origin | US |
Product Variants
| Model | Max. Flow Rate | Overall Width | Overall Height | Motor Hp | Min. Flow Rate | Discharge Connection Size | Max. Discharge Pressure | Intake Connection Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MD1BAASN1A-XXX | 336 GPD | 10" | 20" | 1/2 hp | 33.6 GPD | 1/2" | 150 psi | 1/2" | €5,367.05 | |
| MD3GAASN2C-XXX | 3168 GPD | 19" | 35" | 1/2 hp | 31.68 GPD | 1" | 75 psi | 1" | €17,285.14 | |
| MD2FAASN2C-XXX | 1416 GPD | 19" | 32" | 1/2 hp | 14.16 GPD | 3/4" | 90 psi | 3/4" | €14,551.66 | |
| MD2FAASN1A-XXX | 1416 GPD | 10" | 24" | 1/2 hp | 141.6 GPD | 3/4" | 90 psi | 3/4" | €9,403.52 | |
| MD1AAASN1A-XXX | 168 GPD | 10" | 19" | 1/2 hp | 16.8 GPD | 1/2" | 150 psi | 1/2" | €5,515.63 | |
| MD1BAASN2C-XXX | 336 GPD | 19" | 28" | 1/2 hp | 3.36 GPD | 1/2" | 150 psi | 1/2" | €11,670.41 | |
| MD1DAASN1A-XXX | 696 GPD | 10" | 22" | 1/2 hp | 69.6 GPD | 1/2" | 150 psi | 1/2" | €6,170.09 |
