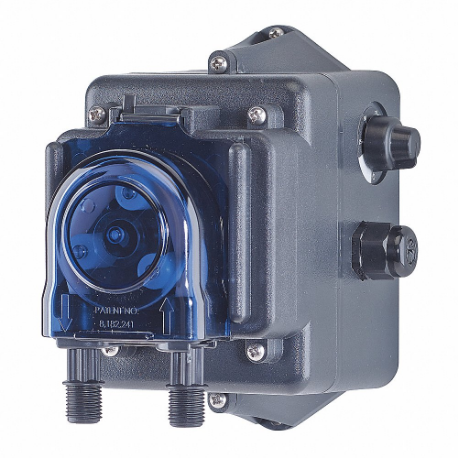

STENNER E20VXHA1S6G1 Chemical Metering Pump, 23.5 gpd
Item: CU4REHModel: E20VXHA1S6G1Cross Ref: 481H75
7 In Stock
Ships within 2 days via
10.00% off
€798.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chemical Metering Pump |
| Body Material | Polycarbonate |
| Chemical Metering Pump Type | Peristaltic |
| Compatible Chemicals | Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Phosphoric Acid 100%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water |
| Control Programs | Manual Control |
| Cord Length | 6 ft. |
| Degassing Valve Included | No |
| Discharge Connection Size | 1/4" |
| Discharge Connection Type | Tube |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug In |
| Features | Compact, Patented Quick Release Pump Head, Variable Output Adjustment |
| Fitting Material | Polypropylene, PVC |
| Flow Rate Control | Variable |
| Flow Rate Output Control | Variable |
| Frequency | 60 Hz |
| Head Material | Polyethylene |
| Height | 5 1/2" |
| Housing Material | Polycarbonate |
| Hp - Pumps | 1/40 hp |
| Includes | (3) 1/4" Connecting Nuts, (3) 1/4" Ferrules, 20 ft. Roll Of Suction/Discharge Tubing, Duckbill Check Valve, Pump Tube, Weighted Suction Line Strainer |
| Intake Connection Size | 1/4" |
| Intake Connection Type | Tube |
| Length | 6" |
| Max. Ambient Temp. | 104°F |
| Max. Discharge Pressure | 80 psi |
| Max. Flow Rate | 23.5 GPD |
| Max. Hp | 1/40 hp |
| Max. Media Temp. | 104°F |
| Max. Motor Speed | 3250 RPM |
| Max. Pressure | 80 psi |
| Max. Viscosity | 100 cPS |
| Max. Viscosity - Pumps | 100 cPS |
| Min. Flow Rate | 2.94 GPD |
| Min. Media Temp. | 32°F |
| Motor Enclosure | Totally Enclosed |
| Motor Enclosure Design | Totally Enclosed |
| Motor Hp | 1/40 hp |
| Motor Mounting Type | Not Applicable |
| Motor Type | Brushed DC |
| Nameplate Voltage | 120V AC |
| No. Of Feeds | 1 |
| Number Of Feeds | 1 |
| Overall Height | 5.9" |
| Overall Length | 4 2/5" |
| Overall Width | 5 1/5" |
| Phase | Single |
| Phase - Pumps | 1 |
| Priming | Self Priming |
| Pump Rpm | 44 RPM |
| Reproducibility | -5% to +5% |
| Reproducibility | -5.0% to +5.0% |
| Reproducibility - Pumps | -5% to +5% |
| Roller Material | Polyethylene |
| Seal Material | Santoprene |
| Seals And O-rings - Pumps | Santoprene |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Lift | 25 ft. |
| Tubing Material | Santoprene |
| Tubing Material - Peristaltic Pumps | Santoprene |
| Turn Down Ratio | 8:1 |
| Turn Down Ratio - Pumps | 81 |
| Width | 3 3/4" |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 11.18 |
| Ship width (cm) | 13.21 |
| Country of Origin | US |
Product Variants
| Model | Nameplate Voltage | Max. Flow Rate | Turn Down Ratio | Max. Discharge Pressure | Fitting Material | Reproducibility | Head Material | Max. Viscosity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MD1BAASN1A-XXX | 115/230V AC | 336 GPD | 10:1 | 150 psi | Stainless Steel | -2% to +2% | Stainless Steel | - | €5,367.05 | |
| MD3GAASN2C-XXX | 115/230V AC | 3168 GPD | 100:1 | 75 psi | Stainless Steel | -2% to +2% | Stainless Steel | 500 cPS | €17,285.14 | |
| MD2FAASN2C-XXX | 115/230V AC | 1416 GPD | 100:1 | 90 psi | Stainless Steel | -2% to +2% | Stainless Steel | 1000 cPS | €14,551.66 | |
| MD2FAASN1A-XXX | 115/230V AC | 1416 GPD | 10:1 | 90 psi | Stainless Steel | -2% to +2% | Stainless Steel | 1000 cPS | €9,403.52 | |
| MD1AAASN1A-XXX | 115/230V AC | 168 GPD | 10:1 | 150 psi | Stainless Steel | -2% to +2% | Stainless Steel | 1000 cPS | €5,515.63 | |
| MD1BAASN2C-XXX | 115/230V AC | 336 GPD | 100:1 | 150 psi | Stainless Steel | -2% to +2% | Stainless Steel | 1000 cPS | €11,670.41 | |
| MD1DAASN1A-XXX | 115/230V AC | 696 GPD | 10:1 | 150 psi | Stainless Steel | -2% to +2% | Stainless Steel | 500 cPS | €6,170.09 |
