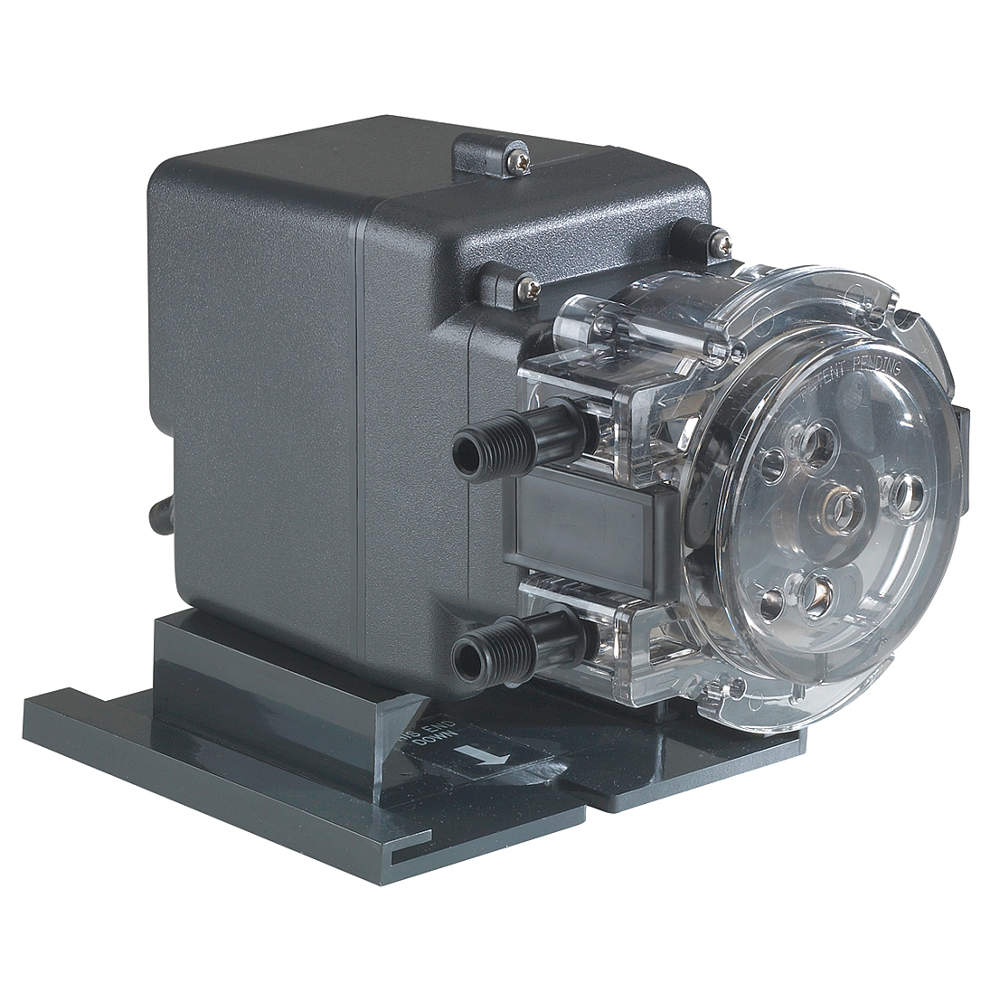

STENNER 85MFL5A1SUG1 Metering Pump 85 Gpd 25 Psi
Item: AD9ZJBModel: 85MFL5A1SUG1Cross Ref: 4VZG7
7 In Stock
Ships within 2 days via
10.00% off
€908.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chemical Metering Pump |
| Body Material | Polycarbonate |
| Cc/min. | 223.4 |
| Chemical Metering Pump Type | Peristaltic |
| Compatible Chemicals | Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Phosphoric Acid 100%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water |
| Control Programs | Manual Control |
| Cord Length | 6 ft. |
| Degassing Valve Included | No |
| Discharge Connection Size | 1/4" |
| Discharge Connection Type | Tube |
| Discharge Size | 1/4" |
| Discharge Type | Tube |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug In |
| Features | Fixed Rate Single Head, Nonclogging Design, Valveless |
| Fitting Material | Polypropylene, PVC |
| Flow Rate | 223.4 cc/min. |
| Flow Rate Control | Fixed |
| Flow Rate Of Water Output Control | Fixed |
| Flow Rate Output Control | Fixed |
| Frequency | 60 Hz |
| Head And Fitting Material | Polycarbonate/PVC |
| Head Material | Polyethylene, Polypropylene |
| Height | 6" |
| Housing Material | Polycarbonate |
| Hp - Pumps | 1/30 hp |
| Includes | (2) Additional Latches, (3) 1/4" Ferrules, (3) Connecting Nuts, 20 ft Roll Of Suction/Discharge Tubing,"jection Check Valve 100 psi (6.9 bar) Maximum Or 1"jection Fitting 25 psi (1.7 bar) max, Mounting Bracket, Pump Tube, Weighted Suction Line Strainer |
| Includes Degassing Valve | No |
| Inlet Size | 1/4" |
| Inlet Type | Tube |
| Intake Connection Size | 1/4" |
| Intake Connection Type | Tube |
| Length | 8" |
| Material | Polycarbonate |
| Max. Ambient Temperature | 125°F |
| Max. Discharge Pressure | 25 psi |
| Max. Flow Rate | 85 GPD |
| Max. Hp | 1/30 hp |
| Max. Media Temp. | 125°F |
| Max. Pressure | 25 psi |
| Max. Viscosity | 1500 cPS |
| Maximum Motor Speed | 44 RPM |
| Min. Flow Rate | 85 GPD |
| Min. Flow Rate | Not Applicable |
| Min. Media Temp. | 32°F |
| Motor Hp | 1/30 hp |
| Motor Mounting Type | Not Applicable |
| Motor Rpm | 44 RPM |
| Motor Type | Shaded Pole |
| No. Of Feeds | 1 |
| Number Of Feeds | 1 |
| Overall Height | 6" |
| Overall Length | 5.3" |
| Overall Width | 8" |
| Phase | 1 |
| Phase - Pumps | 1 |
| Power Cord | 6 ft. |
| Priming | Self Priming |
| Pump Type | Peristaltic |
| Reproducibility | -2% to +2% |
| Reproducibility | -2.0% to +2.0% |
| Reproducibility - Pumps | -2% to +2% |
| Roller Material | Polyethylene |
| Seal Material | Santoprene |
| Seals And O-rings | Santoprene |
| Seals And O-rings - Pumps | Santoprene |
| Self Priming | Yes |
| Self-priming | Yes |
| Series | Classic Series |
| Suction Lift | 25 ft. |
| Tube Material | Santoprene |
| Tubing Material | Santoprene |
| Tubing Material - Peristaltic Pumps | Santoprene |
| Type | Fixed Rate Single Head |
| Voltage | 120V AC |
| Width | 5 5/16" |
Shipping Info:
| Ship weight (kg) | 3.22 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 20.32 |
| HS code | 8413810040 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Max. Viscosity | Reproducibility | Max. Discharge Pressure | Fitting Material | Turn Down Ratio | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VSP | Resin | 20 GPD | 300 cPS | -2% to +2% | 25 psi | PVC | 7.7:1 | - | €768.86 | |
 |
D50 | Resin | 60 GPD | 300 cPS | -2% to +2% | 25 psi | PVC | 10:1 | - | €700.82 | |
 |
XP007LAHXG19 | ABS | 7 GPD | 300 cPS | -2% to +2% | - | PVC | 10:1 | - | €1,290.85 | |
|
XP009LAHXG19 | ABS | 9 GPD | 300 cPS | -2% to +2% | 110 psi | PVC | 10:1 | - | €1,270.75 | |
|
XP015LAHXG19 | ABS | 15 GPD | 300 cPS | -2% to +2% | 110 psi | PVC | 20:1 | - | €1,197.89 | |
|
XP030LAHXG19 | ABS | 30 GPD | 300 cPS | -2% to +2% | 80 psi | PVC | 20:1 | CSPE | €1,270.75 | |
 |
XP007LFHXG19 | ABS | 7 GPD | 300 cPS | -2% to +2% | 125 psi | PVC | - | - | €863.59 |
