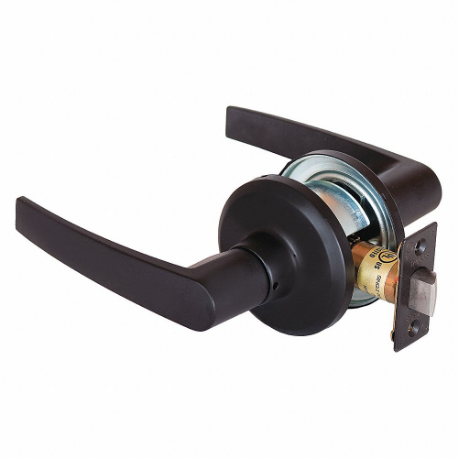

STANLEY QTL230A613SA118F Lever Lockset, Grade 2, Oil Rubbed Bronze, Keyless
Item: CU4JCDModel: QTL230A613SA118FCross Ref: 45DH72
7 In Stock
Ships within 2 days via
5.00% off
€130.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lever Lockset |
| Ada Compliant | Yes |
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Passage |
| Backset | 2 3/8" |
| Bolt Type | Latch Bolt |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Electrical/mechanical | Mechanical |
| Features | Limited Lifetime Mechanical Warranty |
| Finish | Dark Oxidized Satin Bronze, Oil Rubbed |
| Fire Rating | 3 hrs. |
| For Use With | Various Door Types |
| Function | Passage |
| General Lockset Function | Passage Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Zinc |
| Handle Type | Lever |
| Includes | Hardware |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keyway Type | None |
| Knob/handle Material | Bronze |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Commercial, Multiple Family Residential |
| Lock Assembly Type | Cylindrical |
| Lockset Function Ansi Code | F75 |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Heavy Duty |
| Lockset Style | QTL Slate |
| Lockset Type | Mechanical |
| Mortise / Cylindrical | Cylindrical |
| Number Of Keys | 0 |
| Number Of Pins | 6 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 2 |
| Pins | 0 |
| Required Door Thickness | 1 3/8" to 1 3/4" |
| Strike Dim. | 1 1/8" x 2 1/4" |
| Strike Plate Height | 2 1/4" |
| Strike Plate Width | 1 1/8" |
| Strike Type | ASA Strike |
| Style | QTL230 Slate |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Backset | Key Type | Visual Indicator Message | Style | Number Of Keys | Keyway Type | Number Of Pins | Lockset Performance Strength | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QCL120M626 | 2 3/4" | Not Keyed | No Message | Summit | - | Not Available | 6 | Heavy Duty | €150.89 | |
| QCL130M626S4478S | 2 3/4" | Not Keyed | No Message | Summit | 2 | Not Available | 6 | Heavy Duty | €354.51 | |
| QCL140M626S4478S | 2 3/4" | Not Keyed | No Message | Summit | 2 | Not Available | 6 | Heavy Duty | €425.79 | |
| QCL151M626S4478SLC | 2 3/4" | - | - | Summit | 2 | Less Cylinder | - | Heavy Duty | €508.52 | |
| QCL161M626S4478SLC | 2 3/4" | Not Keyed | No Message | Summit | 2 | Less Cylinder | 6 | Heavy Duty | €379.20 | |
| QCL171M626S4478SLC | 2 3/4" | - | No Message | Summit | - | Less Cylinder | - | Heavy Duty | €424.56 | |
| QCL220M626 | 2 3/4" | Not Keyed | No Message | Summit | - | Not Available | 6 | Standard Duty | €70.70 |
