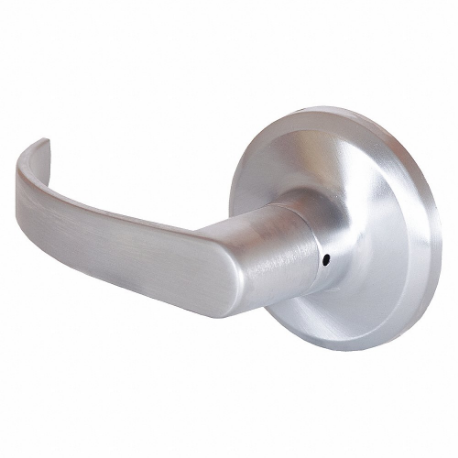

STANLEY QTL220M626 Lever Lockset, Grade 2, Qtl220 Su mmit, Satin Chrome
Item: CU4JBYModel: QTL220M626Cross Ref: 45DH70
7 In Stock
Ships within 2 days via
5.00% off
€53.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lever Lockset |
| Ada Compliant | Yes |
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Dummy |
| Backset | 2 3/8" |
| Bolt Type | Latch Bolt |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Electrical/mechanical | Mechanical |
| Features | Tubular Locks |
| Finish | Satin Chrome |
| Fire Rating | 3 hrs. |
| For Use With | Various Door Types |
| Function | Dummy |
| General Lockset Function | Dummy Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Zinc |
| Handle Type | Lever |
| Includes | Hardware |
| Inside Locking Access | Not Lockable |
| Key Material | Nickel Silver |
| Key Type | Keyed Alike |
| Keyway Type | Schlage SC4 |
| Knob/handle Material | Cast Zinc |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Commercial, Multiple Family Residential |
| Lock Assembly Type | Cylindrical |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Heavy Duty |
| Lockset Style | QTL Summit |
| Lockset Type | Mechanical |
| Mortise / Cylindrical | Cylindrical |
| Number Of Keys | 0 |
| Number Of Pins | 6 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 2 |
| Pins | 6 |
| Required Door Thickness | 1 3/8" to 1 3/4" |
| Strike Dim. | 1 1/8" x 2 1/4" |
| Strike Plate Height | 57 mm |
| Strike Plate Width | 44.375 mm |
| Strike Type | Full Lip |
| Style | QTL220 Summit |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Backset | Key Type | Visual Indicator Message | Style | Number Of Keys | Keyway Type | Number Of Pins | Lockset Performance Strength | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QCL120M626 | 2 3/4" | Not Keyed | No Message | Summit | - | Not Available | 6 | Heavy Duty | €150.89 | |
| QCL130M626S4478S | 2 3/4" | Not Keyed | No Message | Summit | 2 | Not Available | 6 | Heavy Duty | €354.51 | |
| QCL140M626S4478S | 2 3/4" | Not Keyed | No Message | Summit | 2 | Not Available | 6 | Heavy Duty | €425.79 | |
| QCL151M626S4478SLC | 2 3/4" | - | - | Summit | 2 | Less Cylinder | - | Heavy Duty | €508.52 | |
| QCL161M626S4478SLC | 2 3/4" | Not Keyed | No Message | Summit | 2 | Less Cylinder | 6 | Heavy Duty | €379.20 | |
| QCL171M626S4478SLC | 2 3/4" | - | No Message | Summit | - | Less Cylinder | - | Heavy Duty | €424.56 | |
| QCL220M626 | 2 3/4" | Not Keyed | No Message | Summit | - | Not Available | 6 | Standard Duty | €70.70 |
