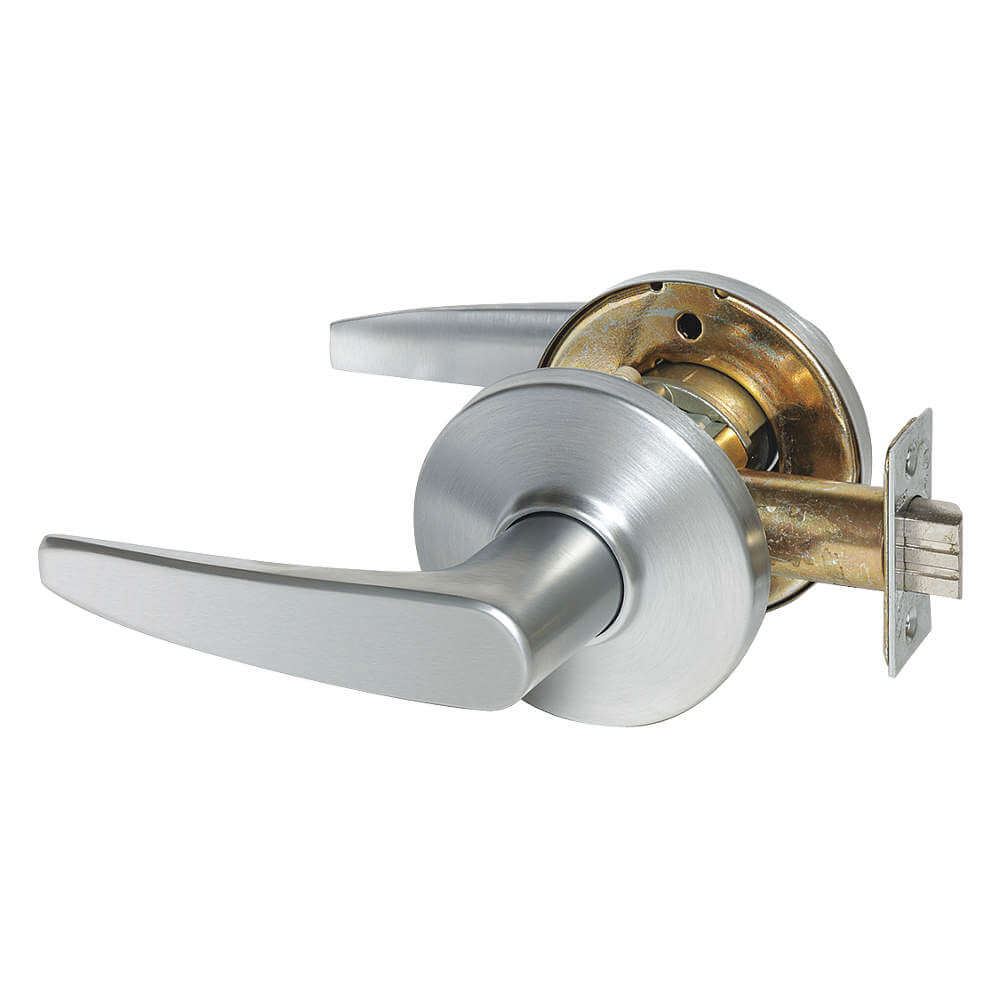

STANLEY SECURITY SOLUTIONS 9K30N16DS3626 Lever Passage Straight Satin Chrome
Item: AH9MGHModel: 9K30N16DS3626Cross Ref: 40KD06
7 In Stock
Ships within 2 days via
13.00% off
€486.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lever |
| Ada Compliant | Yes |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Passage |
| Backset | 2 3/4" |
| Bolt Type | Dead Latch |
| Core Type | Not Included |
| Cylinder Core Type | Large Format Interchangeable Core Cylinder |
| Finish | Satin Chrome |
| Fire Rating | 3 hrs. |
| Function | Passage |
| General Lockset Function | Passage Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Zinc |
| Handle Type | Lever |
| Included Core | No |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keyway Type | None |
| Knob/handle Material | Zinc Alloy |
| Ligature Resistance | Not Ligature Resistant |
| Location Type | Commercial |
| Lock Assembly Type | Cylindrical |
| Lockset Function | Passage |
| Lockset Function Ansi Code | F75 |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Extra Heavy Duty |
| Lockset Style | Curved No Return |
| Lockset Type | Mechanical |
| Max. Door Thickness | 2 1/4" |
| Min. Door Thickness | 1 3/4" |
| Mounting Style | Thru Bolt |
| No. Of Keys | 0 |
| No. Of Pins | 6 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 1 |
| Pins | 0 |
| Properties | Impact Resistant |
| Required Door Thickness | 1 3/4" to 2 1/4" |
| Strike Dim. | 4 7/8" x 1 1/4" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Width | 1 1/4" |
| Strike Type | ASA |
| Style | 9K Straight |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 16.51 |
| Country of Origin | US |
Product Details:
- Electrical/Mechanical : Mechanical
- Ligature Resistant : No
- Mortise/Cylindrical : Cylindrical
Product Variants
| Product | Model | Strike Plate Height | Knob/handle Material | Style | Function | Strike Dim. | Strike Plate Width | Lockset Style | No. Of Pins | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9K30L14DS3625 | - | - | 9K Curved | Privacy | 4 7/8" x 1 1/4" | - | - | - | €774.89 | |
 |
9K30L14DS3626 | 4 7/8" | Zinc Alloy | 9K Curved | Privacy | 4 7/8" x 1 1/4" | 1 1/4" | Curved Return | 6 | €643.65 | |
 |
9K30L15DS3612 | 4 7/8" | Zinc Alloy | 9K Angled | Privacy | 4 7/8" x 1 1/4" | 1 1/4" | Contour Angle Return | 6 | €726.47 | |
 |
9K30L15DS3626 | 4 7/8" | Zinc Alloy | 9K Angled | Privacy | 4 7/8" x 1 1/4" | 1 1/4" | Contour Angle Return | 6 | €651.83 | |
|
9K30L15DSTK626 | 2 3/4" | Zinc Alloy | 9K Angled | Privacy | 2 3/4" x 1 1/8" | 1 1/8" | Contour Angle Return | 6 | €673.01 | |
 |
9K30L16DS3626 | 4 7/8" | Zinc Alloy | 9K Straight | Privacy | 4 7/8" x 1 1/4" | 1 1/4" | Curved No Return | 6 | €684.75 | |
 |
9K30LL15DS3626 | 4 7/8" | Zinc Alloy | 9K Angled | Privacy | 4 7/8" x 1 1/4" | 1 1/4" | Contour Angle Return | 6 | €713.85 |
