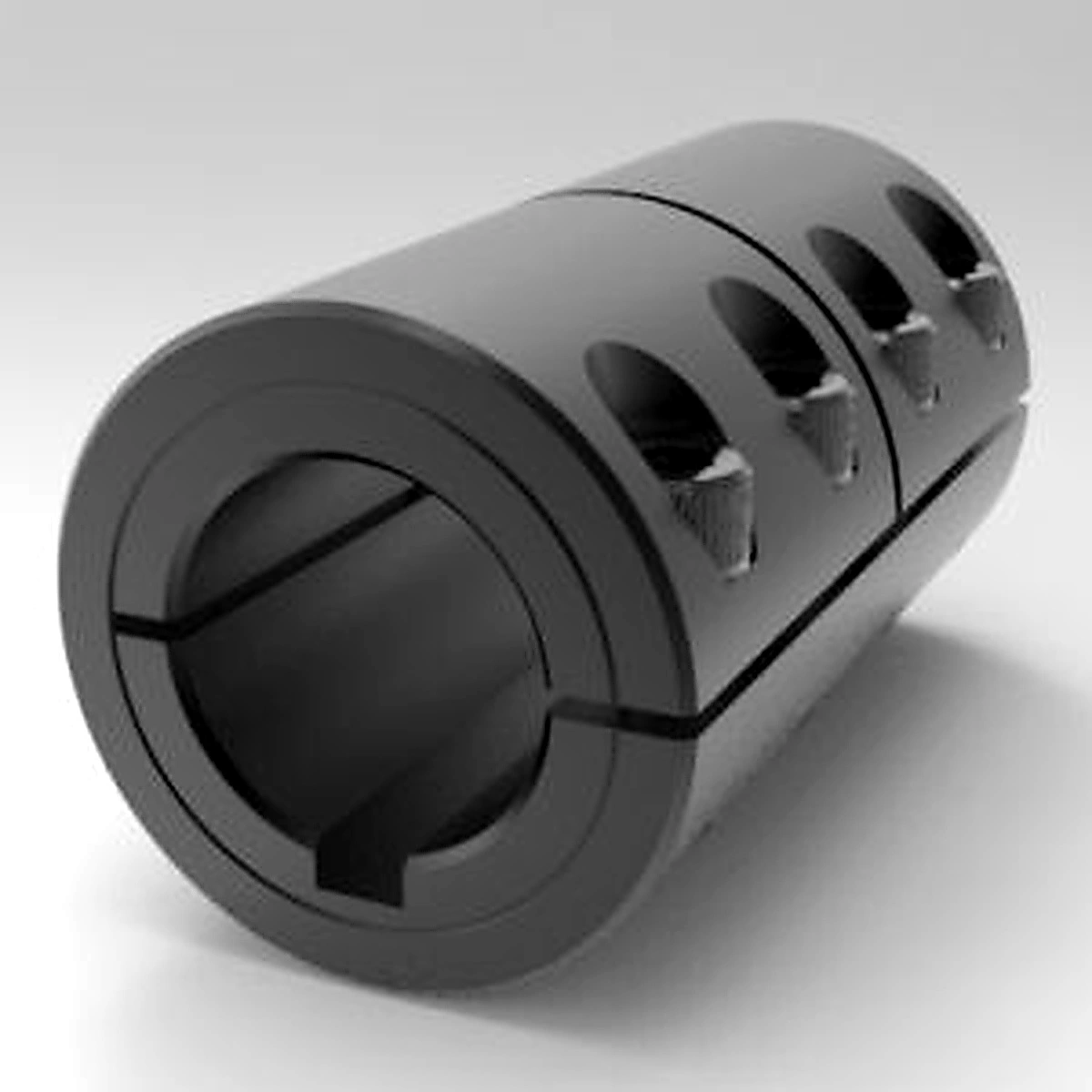

STAFFORD MFG 5LM045045K Rigid Shaft Coupling, Keyway, 1 Piece Split, Clamp Type, 45 x 45mm Bore, Steel
Get it by Monday, Aug 17
€140.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Shaft Coupling |
| Bore Size | 45 mm |
| Bore Size A | 45 mm |
| Bore Size B | 45 mm |
| Finish | Black Oxide |
| Key Way Size | 14 mm |
| Keyway A | 14 mm |
| Keyway B | 14 mm |
| Material | Steel |
| Outside Dia. | 73 mm |
| Recessed Screw | No |
| Screw Material | Alloy, Steel |
| Screw Size | M8 x 1.25 x 25 |
| Total Length | 105 mm |
| Type | Low Profile |
Shipping Info:
| Ship weight (kg) | 2 |
| Ship height (cm) | 7.3 |
| Ship length (cm) | 10.5 |
| Ship width (cm) | 7.3 |
| Country of Origin | USA |
Product Variants
| Model | Type | Torque | Screw Size | Bore Size A | Bore Size B | Recessed Screw | Bore Size | Keyway A | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5L004004 | High Strength | 50 lbs.-in. | #4-40 x 3/8 | 1/4" | 1/4" | Yes | 1/4" | - | €42.25 | |
| 5L006004 | High Strength | 80 lbs.-in. | #6-32 x 3/8 | 3/8" | 1/4" | Yes | - | - | €18.57 | |
| 5L006006 | High Strength | 120 lbs.-in. | #6-32 x 3/8 | 3/8" | 3/8" | Yes | 3/8" | - | €28.43 | |
| 5L008006 | High Strength | 150 lbs.-in. | #8-32 x 1/2 | 1/2" | 3/8" | Yes | - | - | €39.80 | |
| 5L008008 | High Strength | 200 lbs.-in. | #8-32 x 1/2 | 1/2" | 1/2" | Yes | 1/2" | - | €29.82 | |
| 5L010008 | High Strength | 400 lbs.-in. | #10-32 x 5/8 | 5/8" | 1/2" | Yes | - | - | €31.60 | |
| 5L010010 | High Strength | 500 lbs.-in. | #10-32 x 5/8 | 5/8" | 5/8" | Yes | 5/8" | - | €31.04 |
