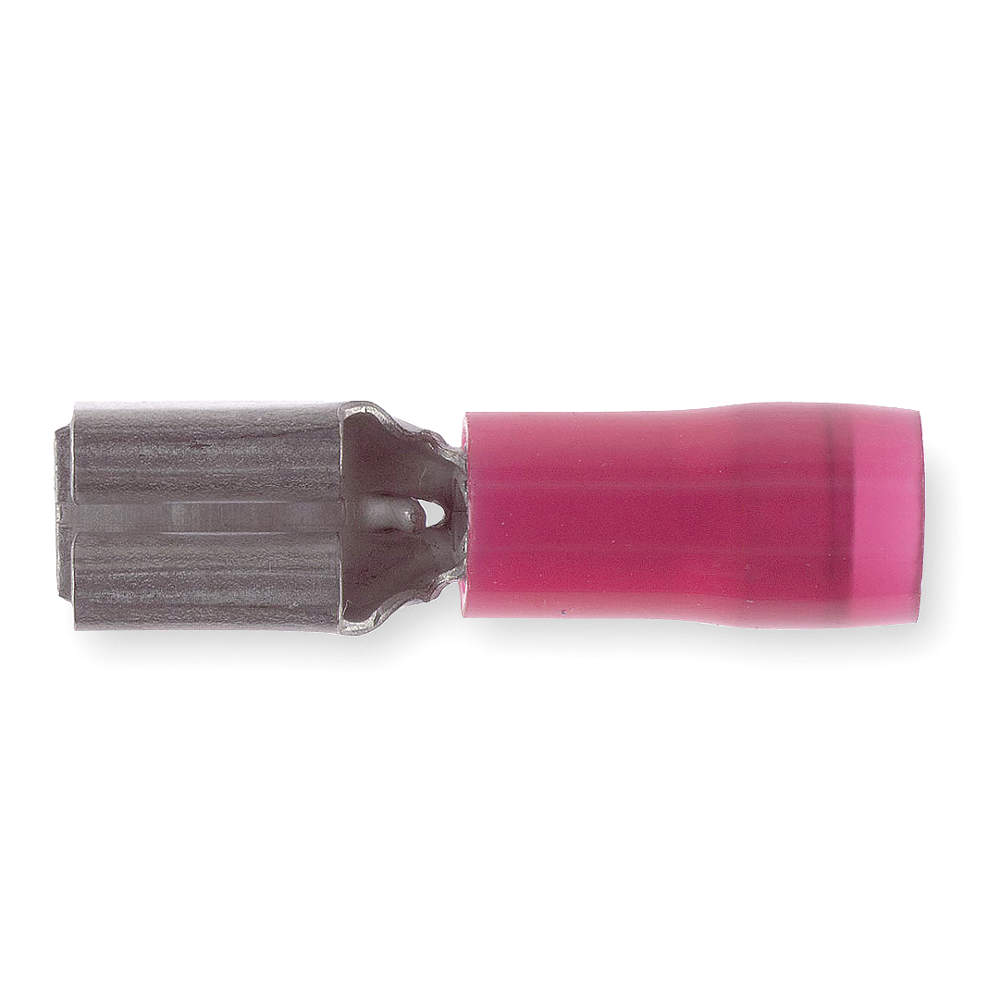

STA-KON RAD18-182 Female Disconnect, Long Barrel Type, 22 To 18 Awg Conductor, Red
Item: AC9UTQModel: RAD18-182Cross Ref: 3KG20
7 In Stock
Ships within 2 days via
10.00% off
€141.58 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Disconnect |
| Barrel Inside Dia. | 0.06" |
| Barrel Size | Long |
| Barrel Style | Funnel Entry |
| Color Code | Red |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Flammability Rating | Not Rated |
| Insulation | Partial |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 0.83" |
| Rohs Compliant | Yes |
| Seam Style | Overlapped |
| Special Features | Quick, Reliable Method Of Connection To Terminal Blocks And Boards Without The Use Of Tools, Unique Construction Of The Female Disconnect Offers Long-Term Dependability |
| Standards | Ul E66716 |
| Tab Size | 0.02" x 0.187" |
| Tab Thickness | 0.02" |
| Tab Width | 0.187" |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Wire Size | 22 AWG to 18 AWG |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 0.58 |
| Ship length (cm) | 2.11 |
| Ship width (cm) | 6.35 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wire Size | Insulation Color | Insulation Material | Insulation | Barrel Inside Dia. | Insulation Type | Overall Length | Tab Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10RC-2577 | 12 AWG to 10 AWG | Yellow | Nylon | Full | 0.133" | Nylon | 1 1/25" | 0.032" x 0.25" | 50 | €148.61 | |
 |
14RB-2577 | 16 AWG to 14 AWG | Blue | Nylon | Full | 0.086" | Nylon | 1.01" | 0.032" x 0.25" | 100 | €169.60 | |
 |
14RBD-18277 | 16 AWG to 14 AWG | Blue | Nylon | Full | 0.086" | Nylon | 0.89" | 0.02" x 0.187" | 100 | €328.75 | |
|
14RBD-18377 | 16 AWG to 14 AWG | Blue | Nylon | Full | 0.086" | Nylon | 0.89" | 0.032" x 0.187" | 100 | €337.85 | |
 |
18RA-2577 | 22 AWG to 18 AWG | Red | Nylon | Full | 0.06" | Nylon | 1.01" | 0.032" x 0.25" | 100 | €194.54 | |
 |
18RAD-18277 | 22 AWG to 18 AWG | Red | Nylon | Full | 0.06" | Nylon | 0.89" | 0.02" x 0.187" | 100 | €283.47 | |
|
18RAD-18377 | 22 AWG to 18 AWG | Red | Nylon | Full | 0.06" | Nylon | 0.89" | 0.032" x 0.187" | 100 | €251.69 |
