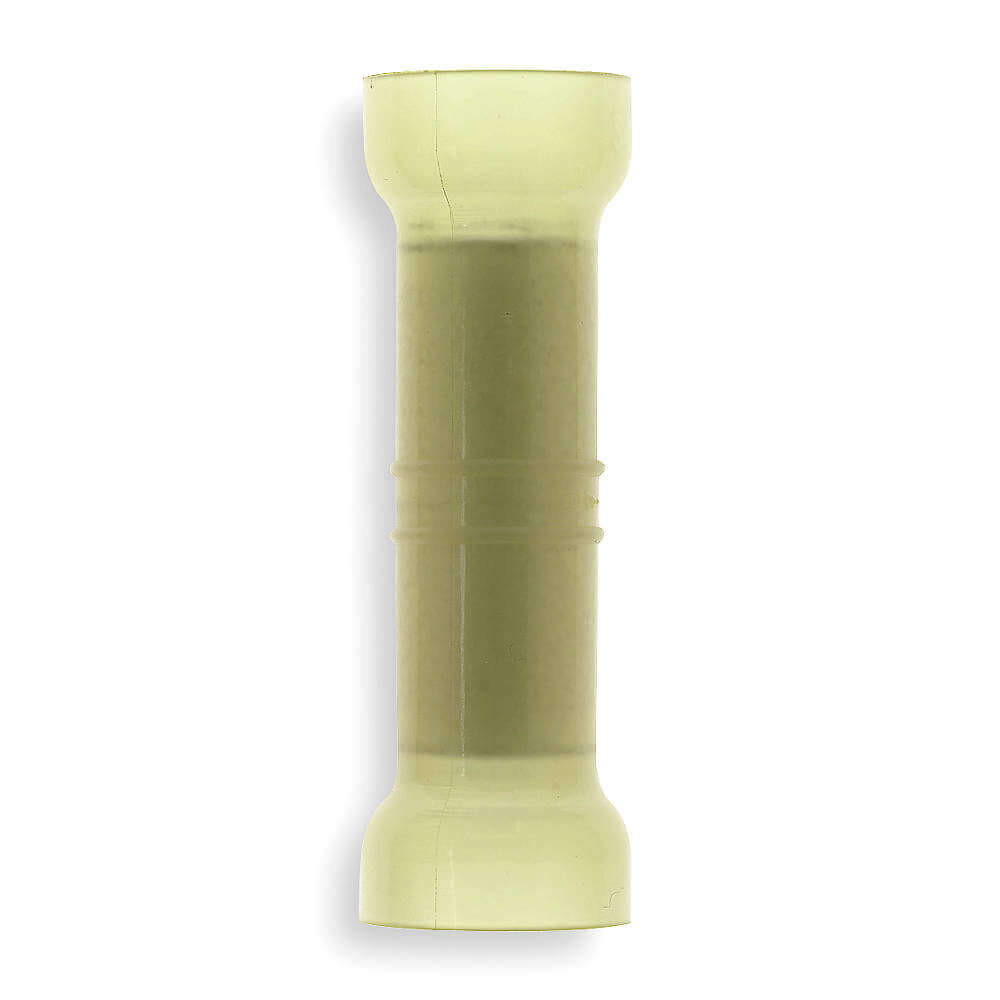

STA-KON 2RF4 Butt Splice Connector, 4 Awg Conductor, 105 Deg C Temp Range, Nylon Insulated Type
Item: AH9JZCModel: 2RF4Cross Ref: 3KF27
7 In Stock
Ships within 2 days via
10.00% off
€68.78 /pkg. of 15
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Splice Connector |
| Barrel Inside Dia. | 0.51" |
| Body Finish | Tin Plated |
| Body Material | Copper |
| Combo Termination And Material | Crimp/Nylon |
| Compatible Installation Tool Model No. | TBM6, TBM6S |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connector Type | Butt Splice |
| For Maximum Wire Insulation Diameter | 0.51" |
| Insulation Color | Yellow |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 4 AWG |
| Minimum Wire Size | 4 AWG |
| Overall Width | 13/25" |
| Seam Style | Overlapped |
| Standards | Mil-T-7928, Ul E9809 |
| Termination Style | Crimp |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 1.32 |
| Ship width (cm) | 7.37 |
| Country of Origin | MX |
Product Variants
| Product | Model | Insulation Color | Insulation Material | Insulation Type | Connection Material | Barrel Inside Dia. | Seam Style | Termination Style | Max. Voltage | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

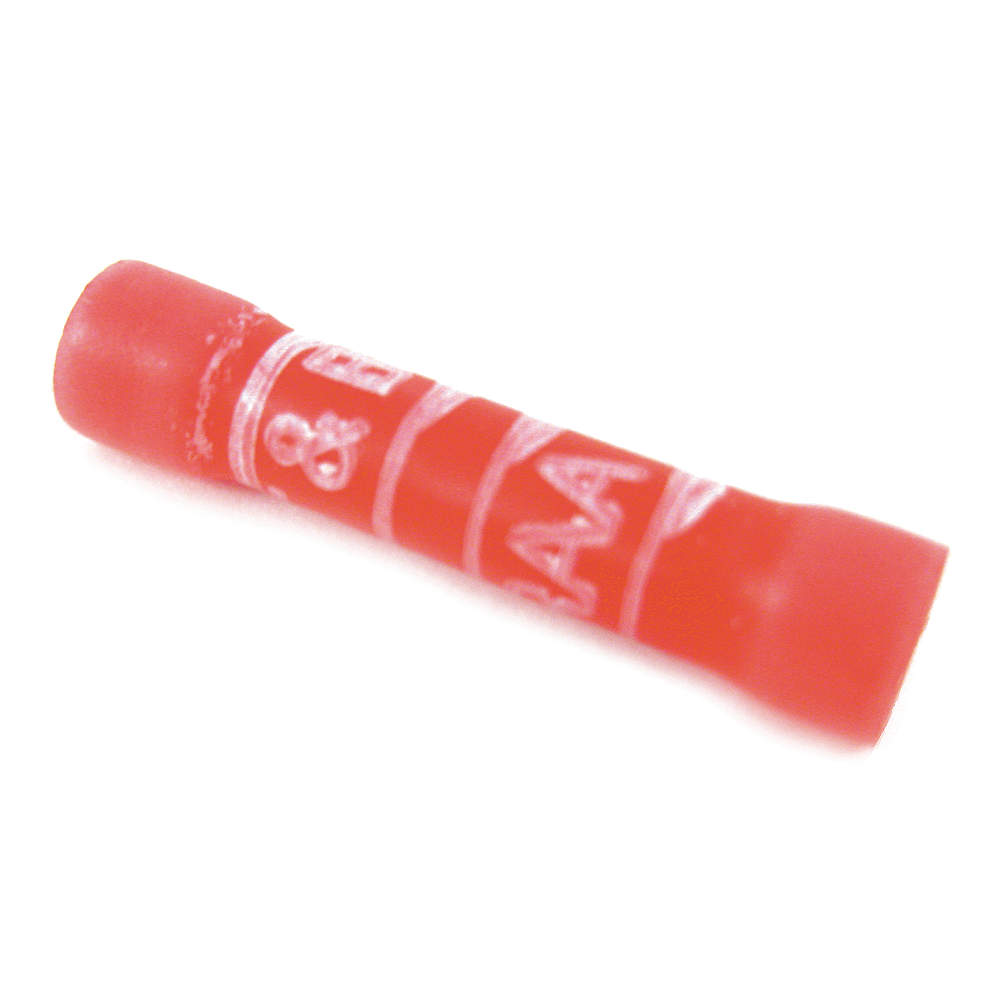

2RA18X | Red | Vinyl | Vinyl | Brass | 0.17" | Brazed | Crimp | 600V | 100 | €83.40 |
