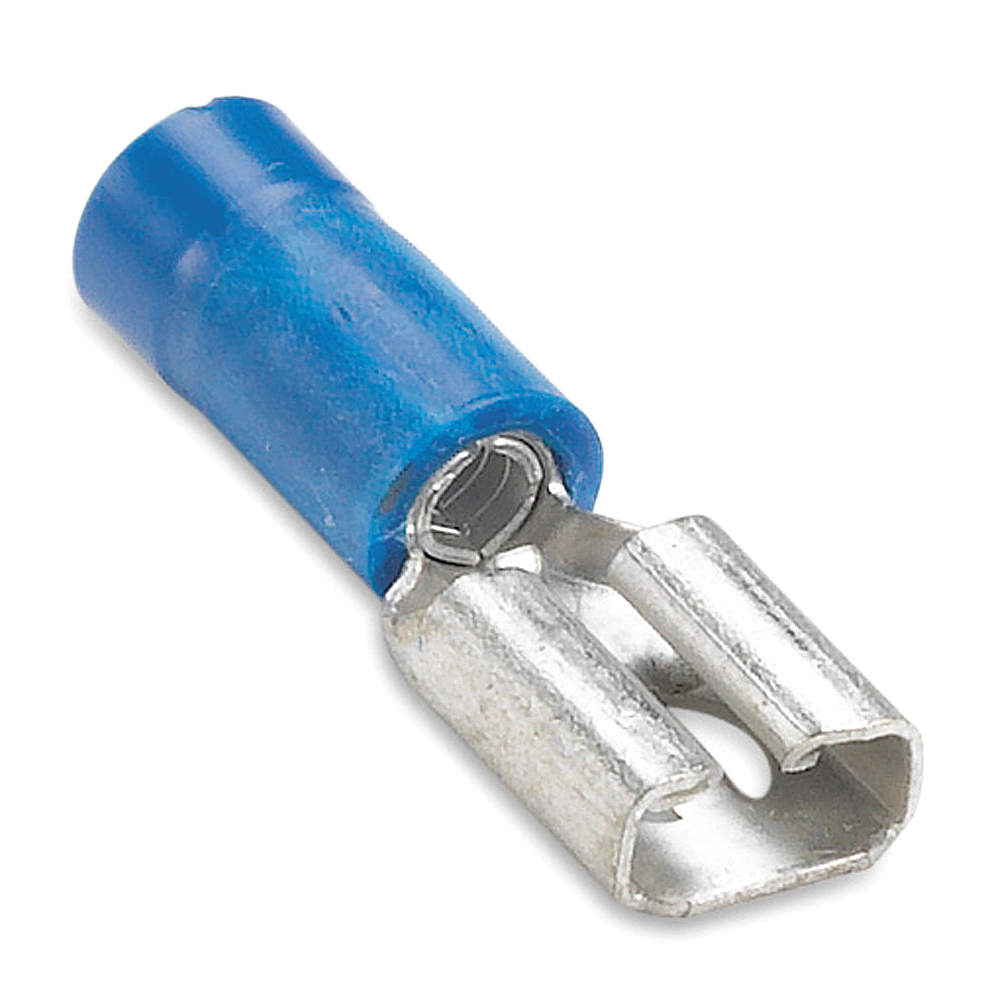

STA-KON 14RBD-182 Female Disconnect, Long Barrel Type, 16 To 14 Awg Conductor, Blue
Item: AJ2HGJModel: 14RBD-182Cross Ref: 4RHD8
7 In Stock
Ships within 2 days via
10.00% off
€108.96 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Disconnect |
| Barrel Inside Dia. | 0.086" |
| Barrel Size | Long |
| Barrel Style | Funnel Entry |
| Connection Material | Brass |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Brass |
| Flammability Rating | Not Rated |
| Insulation | Partial |
| Insulation Color | Blue |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Overall Length | 0.85" |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Quick, Reliable Method Of Connection To Terminal Blocks And Boards Without The Use Of Tools, Unique Construction Of The Female Disconnect Offers Long-Term Dependability |
| Standards | Ul E66716 |
| Tab Size | 0.187" x 0.02" |
| Tab Thickness | 0.02" |
| Tab Width | 0.187" |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Wire Size | 16 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 0.58 |
| Ship length (cm) | 2.16 |
| Ship width (cm) | 4.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Wire Size | Insulation Color | Max. Voltage | Barrel Inside Dia. | Tab Size | Overall Length | Insulation Material | Insulation | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
18RA-250F | 22 AWG to 18 AWG | Yellow | 600V | 0.06" | 0.25" x 0.032" | 24/25" | Vinyl | Partial | 100 | €84.98 | |
|
18RAD-183 | 22 AWG to 18 AWG | Yellow | 600V | 0.06" | 0.25" x 0.032" | 0.85" | Vinyl | Partial | 100 | €102.11 | |
|
14RB-250F | 16 AWG to 14 AWG | Blue | 600V | 0.086" | 0.25" x 0.032" | 24/25" | Vinyl | Partial | 100 | €87.31 | |
|
14RBD-183 | 16 AWG to 14 AWG | Blue | 600V | 0.086" | 0.187" x 0.032" | 0.85" | Vinyl | Partial | 100 | €116.03 | |
 |
10RC-250F | 12 AWG to 10 AWG | Yellow | 300V | 0.133" | 0.25" x 0.032" | 1.03" | Vinyl | Partial | 50 | €135.14 |
