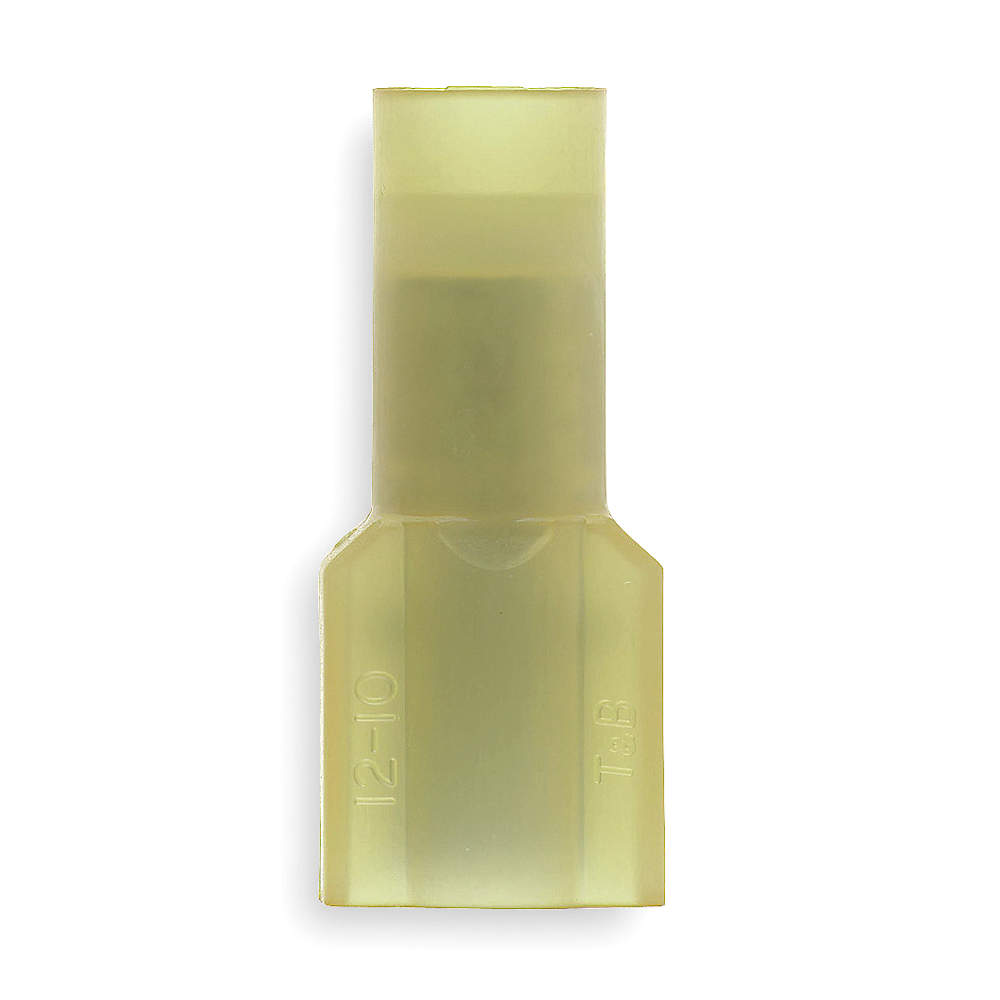

STA-KON 10RC-251T Male Tab, 12 To 10 Awg Conductor, Electro Plated Tin Finish, 300 VAC
Item: AC9UNQModel: 10RC-251TCross Ref: 3KF05
7 In Stock
Ships within 2 days via
10.00% off
€77.57 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Disconnect |
| Barrel Inside Dia. | 0.133" |
| Barrel Size | Long |
| Barrel Style | Funnel Entry |
| Color Code | Yellow |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Disconnect Style | Tab |
| Flammability Rating | Not Rated |
| Insulation | Full |
| Insulation Color | Yellow |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 300V |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Overall Length | 1.17" |
| Seam | Overlapped |
| Seam Style | Overlapped |
| Standards | Ul E66716 |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Tab |
| Termination Style | Crimp |
| Wire Size | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.14 |
| Ship length (cm) | 2.97 |
| Ship width (cm) | 3.56 |
| HS code | 8536904000 |
| Country of Origin | US |
