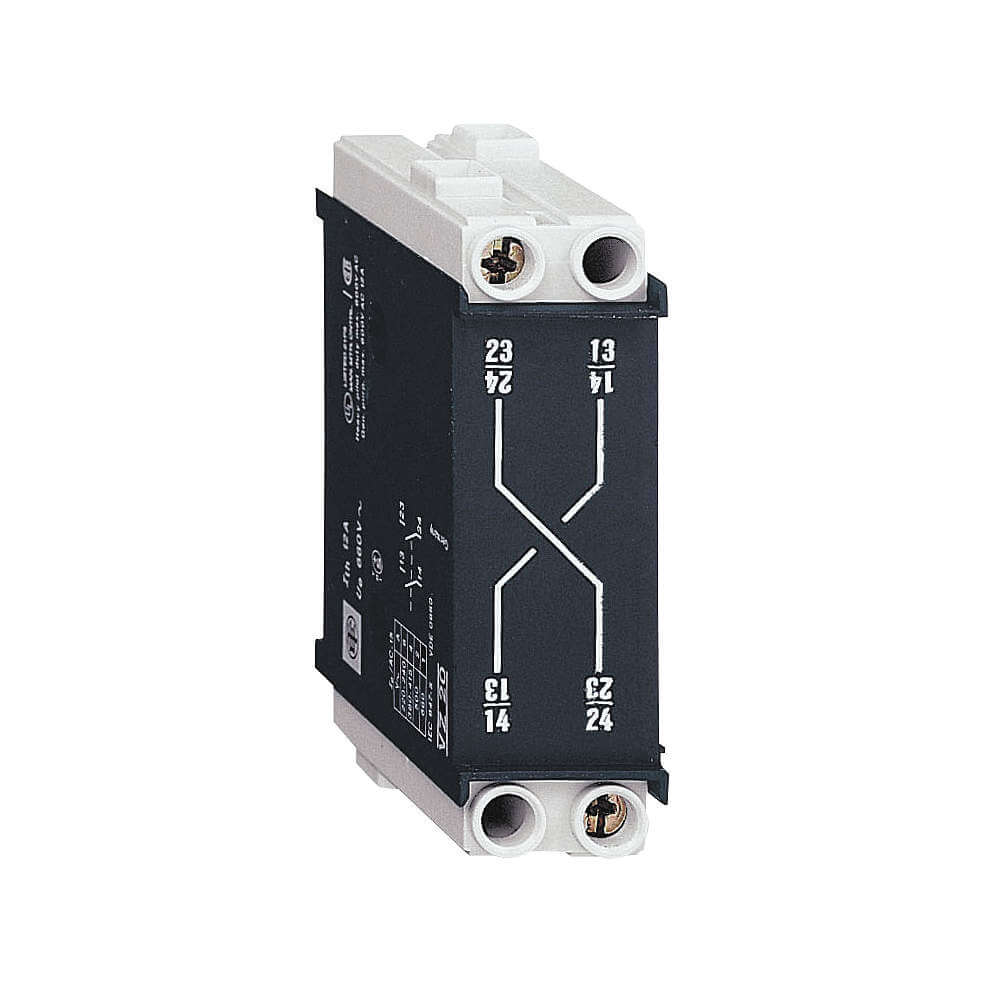

SQUARE D VZ20 Auxiliary Contact 690VAC/250VDC
Item: AH2NVRModel: VZ20Cross Ref: 2FL68
7 In Stock
Ships within 2 days via
5.00% off
€76.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Auxiliary Contact Block |
| Ambient Air Temp. For Operation | -4°F to +122°F |
| Amps | 10A |
| Component Type | Auxiliary Contact Block |
| Connections Terminals | Screw Clamp Terminals 2 0.001 In Sq. To 0.002 sq. in. Flexible With Cable End, Screw Clamp Terminals 2 0.002 In Sq. To 0.004 sq. in. Solid |
| Contact Type And Composition | 1 NO + 1 NO |
| Conventional Enclosed Thermal Current | 10A |
| Conventional Free Air Thermal Current | 12A |
| Current Rating | 10A |
| Depth | 1.9" |
| Electrical Durability | 30000 Cycles |
| Fire Resistance | 1760°F |
| For Use With | Tesys Vario Series |
| Height | 2 3/5" |
| Includes | 2 NO |
| Ip Degree Of Protection | IP20 |
| Material | Non-Metallic |
| Mechanical Durability | 100000 Cycles |
| Mounting Location | Left, Right |
| Mounting Style | DIN Rail |
| Network Frequency | 50/60 Hz |
| Network Type | DC, AC |
| Performance Level | High Performance |
| Product Compatibility | V3, V01, V2, V0, V6, V4, V1, V5, V02 |
| Product Type | Auxiliary Contact Block |
| Protective Treatment | TC |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Voltage | 690V |
| Returnability | Yes |
| Tightening Torque | 0.7 N-m |
| Voltage | 690V AC |
| Voltage Rating | 690V AC |
| Width | 0.8" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 8.99 |
| Ship width (cm) | 5.51 |
| Country of Origin | CZ |
Product Details:
- Special Features: 2NO
