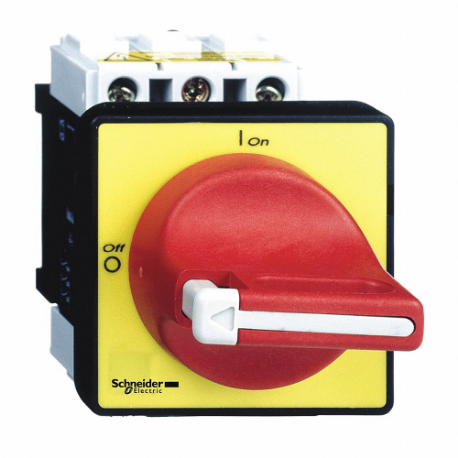

SQUARE D VCF0 20A sw Kit with 4Hole Mtgred/Yellow Oper
Item: CU4FXDModel: VCF0Cross Ref: 48U427
7 In Stock
Ships within 2 days via
5.00% off
€300.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Ambient Air Temp. For Operation | -4°F to +122°F |
| Amps Rating | 20/25A |
| Base Dimensions | 60 mm x 60 mm |
| Breaking Capacity | 200A 400V AC, 21A, 200A 400V AC, 22A, 200A 400V AC, 23A |
| Comm Code Enhanced | 41510 |
| Compatibility Code | Main Switch disconnector |
| Connections Terminals | Power Circuit Screw Clamp Terminals 10-10 Sq. Mm Solid, Power Circuit Screw Clamp Terminals 6-6 Sq. Mm Flexible-With Cable End |
| Contact Form | 3no |
| Contact Type And Composition | 3 NO |
| Control Type | Rotary Handle |
| Conventional Enclosed Thermal Amps | 20A |
| Conventional Free Air Thermal Amps | 25A |
| Degree Of Protection | IP20 Conforming To IEC 60529, IP65 |
| Device Composition | Switch, Handle |
| Device Short Name | Vcf |
| Discount Schedule | 0CP1 |
| Electrical Durability | 100000 Cycles , 100000 Cycles Ac-21, 30000 Cycles Dc-1 To 5 |
| Enclosure Type | Enclosed |
| Family Series | Square D Disconnect Switches |
| Fire Resistance | 1760°F , 1760°F IEC 60695-2-1 |
| Fixing Mode | By 4 Screws Handle |
| Fused | Fused |
| Handle Color | Red |
| Handle Front Plate Color | Yellow |
| Handle Front Plate Colour | Yellow |
| Height | 2.9" |
| Ie Rated Operational Amps | 14.5A AC-23 Ue 400V |
| Iec Rated Operational Power In W | 11 kW 500V AC-23A), 11 kW 690V AC-3), 15 kW 690V AC-23A), 4 kW 230...240V AC-3), 5.5 kW 400...415V AC-3), 7.5 kW 500V AC-3), 5.5 kW 230...240V AC-23A), 7.5 kW 400...415V AC-23A) |
| Iec Terminal Connection | Power Circuit Screw Clamp Terminals 0.02 sq. in. Solid Power Circuit Screw Clamp Terminals 0.009 sq. in. Flexible - With Cable End |
| Includes | Handle |
| Intermittent Duty Class | 30 , Class 30 |
| Ithe Conventional Enclosed Thermal Amps | 20A |
| Making Capacity | 250A @ 400V AC-21A, 250A @ 400V AC-22A, 250A @ 400V AC-23A |
| Making Capacity ( I Rms) | 250A 400VAC, 21A, 250A 400VAC, 22A, 250A 400VAC, 23A |
| Mechanical Durability | 100000 Cycles |
| Mechanical Robustness | Vibrations 10-150 Hz 1 gn IEC 60068-2-6, Shocks 11 ms 30 Gn IEC 60068-2-27 |
| Mounting | Door |
| Mounting Method | By 4 Screws Handle |
| Mounting Support | Handle Door, Switch Door |
| Nema Rating | 1, 12 |
| Network Type | AC, DC |
| No. Of Poles | 3 , 3P |
| Overall Height (decimal Inch) | 2.91" |
| Overall Width | 2 9/25" |
| Performance Level | High Performance |
| Product Or Component Type | Emergency Stop Switch Disconnector |
| Protective Treatment | TC |
| Range | Tesys |
| Rated Conditional Short Circuit Amps | 10 kA 400V, 25A AM, 10 kA 400V, 25A GG , 10A, 400V, 25A |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Amps | 14.5A |
| Rated Operational Power In W | 11 kW @ 500V (AC-23A), 11 kW @ 690V (AC-3), 15 kW @ 690V (AC-23A), 4 kW @ 230-240V (AC-3), 5.5 kW @ 400-415V (AC-3), 7.5 kW @ 500V (AC-3), 5.5 kW @ 230-240V (AC-23A), 7.5 kW @ 400-415V (AC-23A) |
| Rated Operational Voltage | 690V |
| Rated Short Circuit Making Capacity | 1 kA 400V At Ipeak |
| Rated Short Time Withstand Amps | 300A @ 400V @ 1 sec. |
| Returnability | Yes |
| Rotary Handle Mounting Style | Direct |
| Rotary Handle Padlocking | 1 to 3 Padlocks , 1 To 3 Padlocks 0.2°C 0.3 In (4°C 8 Mm) |
| Suitability For Isolation | Yes |
| Terminal Connection | Power Circuit Screw Clamp Terminals 0.02 sq. in. Solid, Power Circuit Screw Clamp Terminals 0.009 sq. in. Flexible With Cable End |
| Tightening Torque | Power Circuit 18.6 lbf.-in. Screw Clamp Terminals |
| Ue Iec Rated Operational Voltage | 690V AC, 50/60 Hz |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 690V AC |
| Width | 2.4" |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 7.4 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 6 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Height | Amps | Returnability | Comm Code Enhanced | Handle Color | Handle Front Plate Colour | Rotary Handle Padlocking | Device Short Name | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VCFN12GE | 5 1/5" | 8 mA | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Vcfn | €306.24 | |
 |
KCF2PZ | 2 2/5" | - | Yes | - | Red | Yellow | 1 to 3 Padlocks | Kcf2 | €79.44 | |
 |
KAF1PZ | 2 2/5" | - | Yes | 41510 | Black | Black | 1 to 3 Padlocks | Kaf1 | €69.26 | |
 |
KCF1PZ | 2 2/5" | - | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Kcf1 | €78.80 | |
 |
KAF2PZ | 2 2/5" | - | Yes | 41530 | Black | Black | 1 to 3 Padlocks | Kaf2 | €70.70 | |
|
KCD1PZ | 2 2/5" | - | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Kcd1 | €70.70 | |
|
KAD1PZ | 2 2/5" | - | Yes | 41530 | Black | Black | 1 to 3 Padlocks | Kad1 | €70.70 |
