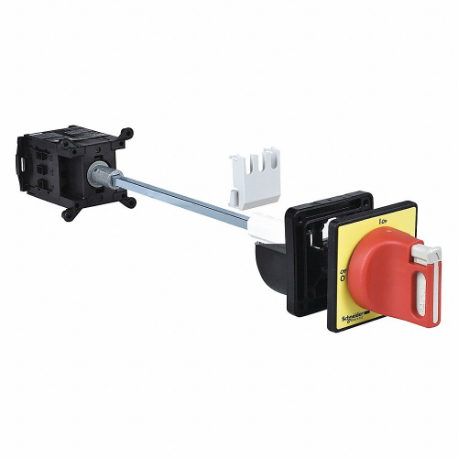

SQUARE D VCCDN20 Main Emergswitch | CV4NFM 48U436

SQUARE D VCCDN20 Main Emergswitch

Item: CV4NFMModel: VCCDN20Cross Ref: 48U436
7 In Stock

Ships within 2 days via

€276.52
5.00% off
€262.69 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Manual Motor Switch
Amps Rating 16/20A
Breaking Capacity 200 kA 400V AC, 21A, 200 kA 400V AC, 22A, 200 kA 400V AC, 23A
Comm Code Enhanced 41510
Component Type Emergency Stop Switch Disconnector
Connections Terminals Power Circuit Screw Clamp Terminals 0.006 sq. in. Flexible With Cable End, Power Circuit Screw Clamp Terminals 0.006 sq. in. Solid , Power Circuit Screw Clamp Terminals 0.006" (4 mm) Flexible-With Cable End Power Circuit Screw Clamp Terminals 0.006" (4 mm) Solid
Contact Form 3NO
Contact Type And Composition 3 NO
Control Type Rotary Handle
Conventional Enclosed Thermal Amps 16A
Conventional Free Air Thermal Amps 20A
Device Composition Shaft Extension, Handle, Switch
Device Short Name Vccdn
Discount Schedule 0CP1
Electrical Durability 30000 Cycles , 30000 Cycles Dc-1 To 5, 50000 Cycles Ac-21
Enclosure Type Enclosed
Fixing Mode Hole 0.9" (22.5 mm) Handle, By Clips Switch , Hole 0.9" Handle, By Clips Switch
Fused Fused
Handle Color Red
Handle Front Plate Colour Yellow
Handle Front Plate Dimension 60 mm x 60 mm
Height 2 2/5"
Icm Rated Short-circuit Making Capacity 0.5 kA 400V At Ipeak
Ie Rated Operational Amps 11A AC-23 Ue 400V
Includes Shaft Extension, Handle
Intermittent Duty Class 30 , Class 30
Ip Degree Of Protection IP65
Ithe Conventional Enclosed Thermal Amps 16A
Making Capacity 200A @ 400V AC-21A, 200A @ 400V AC-22a, 200 A @ 400V AC-23A
Making Capacity ( I Rms) 200A 400VAC, 21A, 200A 400VAC, 22A, 200A 400VAC, 23A
Mechanical Durability 50000 Cycles
Mechanical Robustness Shocks 11 ms 15 gn IEC 60068-2-27, Vibrations 10-150 Hz 1 gn IEC 60068-2-6
Mounting Support Handle Door, Switch Symmetrical Rail
Nema Rating 1, 12
Network Type DC, AC
No. Of Poles 3
Performance Level Standard
Product Or Component Type Emergency Stop Switch Disconnector
Protective Treatment TC
Range Tesys
Rated Conditional Short Circuit Amps 6 kA 400V, 20A aM, 6 kA 400V, 20A gG
Rated Operational Amps 11A
Rated Operational Power In W 4 kW 230-240V AC-23A, 5.5 kW 400-415V AC-23A, 7.5 kW 500V AC-23A, 11 kW 690V AC-23A, 3 kW 230-240V AC-3, 4 kW 400-415V AC-3, 5.5 kW 500V AC-3, 5.5 kW 690V AC-3
Rated Short Circuit Making Capacity 0.5 kA @ 400V At Ipeak
Rated Short-time Withstand Rms Amps 140A @ 400V
Returnability Yes
Rotary Handle Mounting Style Extended
Rotary Handle Padlocking 1 to 3 Padlocks , 1 To 3 Padlocks 0.2°C 0.3 In (4°C 8 Mm)
Suitability For Isolation Yes
Tightening Torque 0.7 N-m
Voltage 690V AC
Width 2.4"

Shipping Info:

Ship weight (kg) 0.31
Ship height (cm)6
Ship length (cm)2.54
Ship width (cm)6
Country of OriginCZ

Product Variants

ProductModelHeightAmpsReturnabilityComm Code EnhancedHandle ColorHandle Front Plate ColourRotary Handle PadlockingDevice Short NamePrice

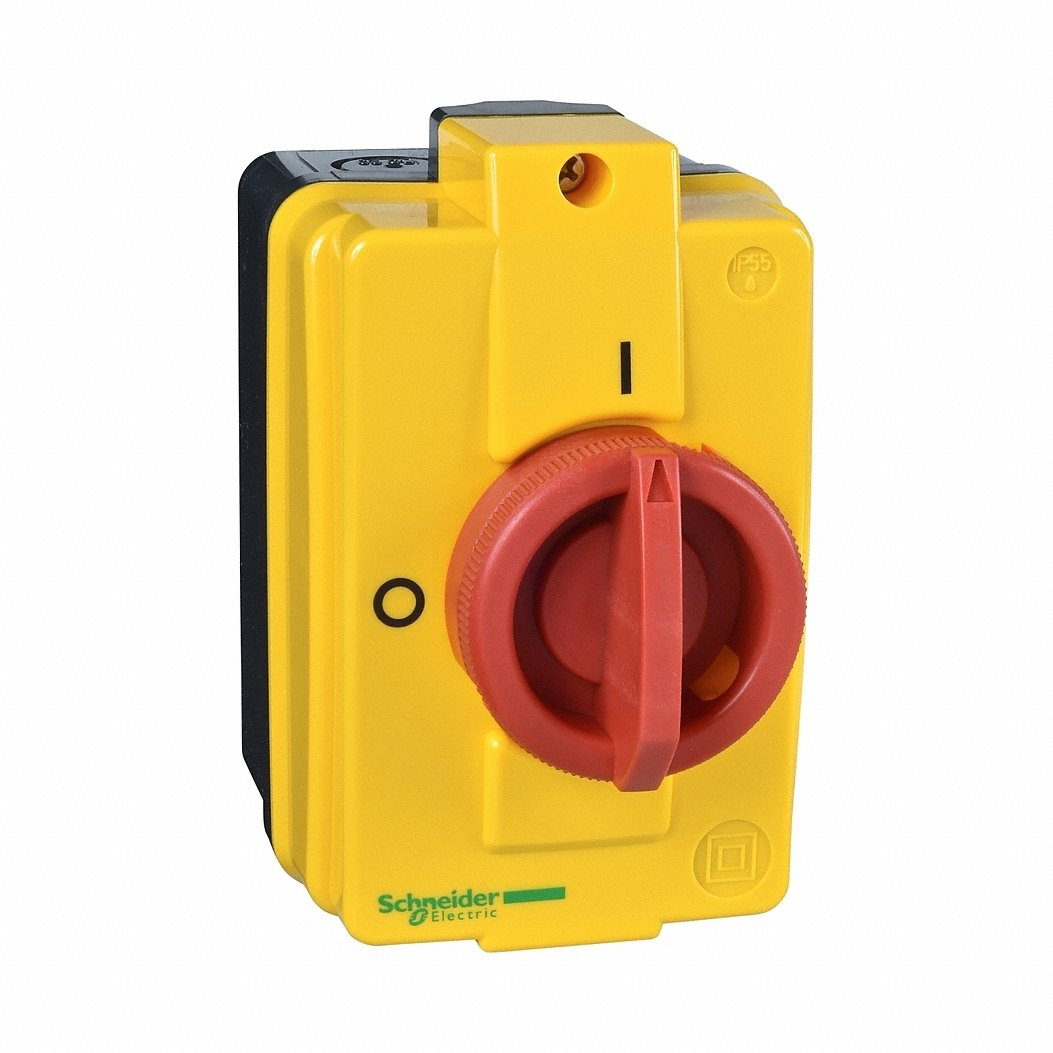

SQUARE D VCFN12GE Emerg switch Enclosure, 10 A | CU4FDX 48U433 VCFN12GE5 1/5"8 mAYes41510RedYellow1 to 3 PadlocksVcfn€306.24

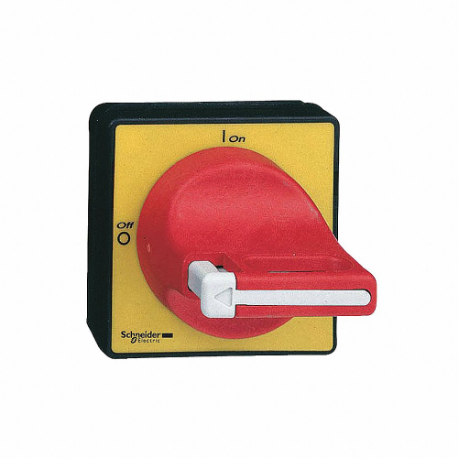

SQUARE D KCF2PZ Handle Assembly | CU4FFR 48U437 KCF2PZ2 2/5"-Yes-RedYellow1 to 3 PadlocksKcf2€79.44
SQUARE D KAF1PZ Handle | CU4FGA 48U445 KAF1PZ2 2/5"-Yes41510BlackBlack1 to 3 PadlocksKaf1€69.26

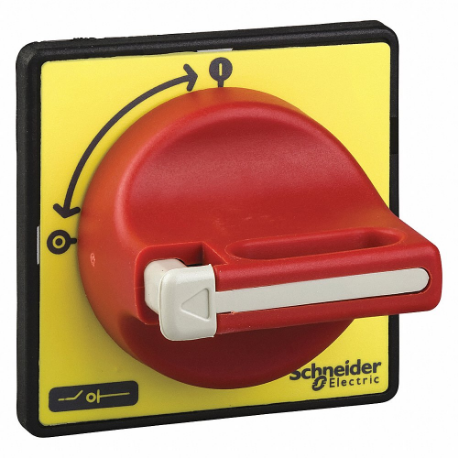

SQUARE D KCF1PZ Handle | CU4FGB 48U448 KCF1PZ2 2/5"-Yes41510RedYellow1 to 3 PadlocksKcf1€78.80

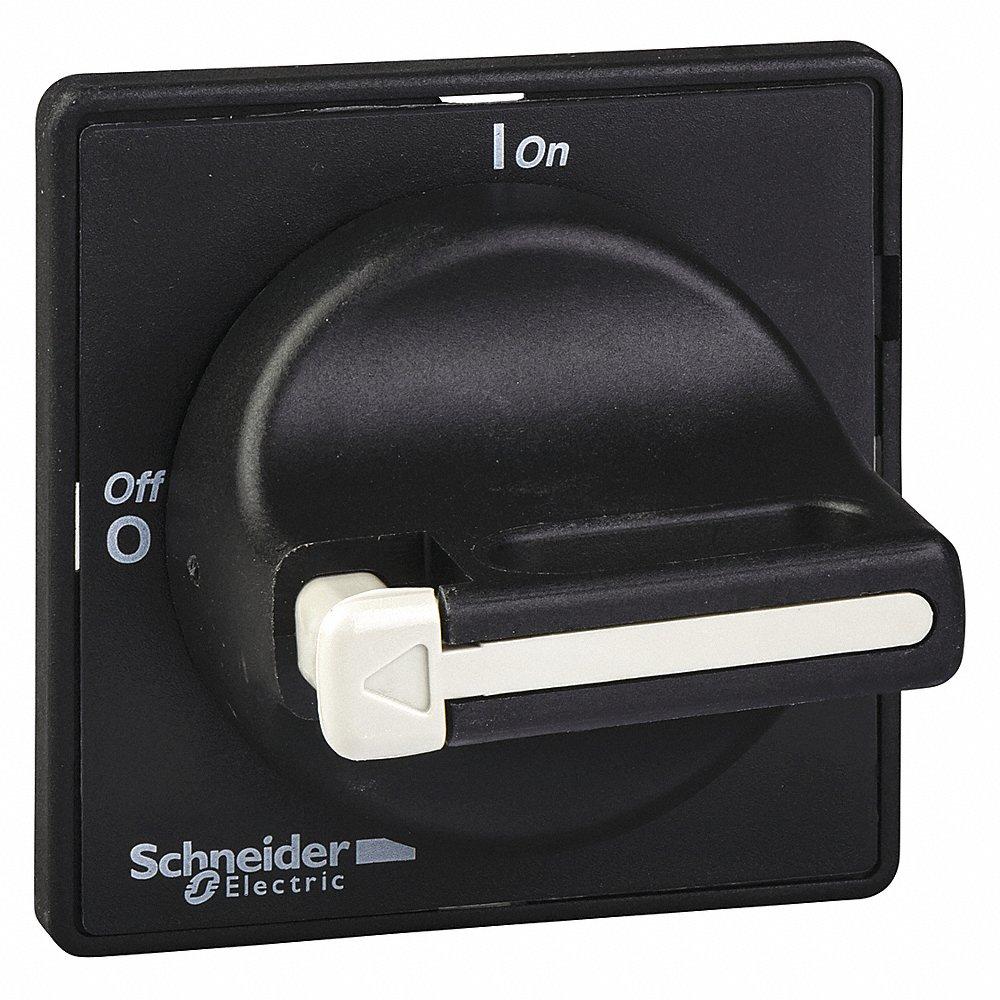

SQUARE D KAF2PZ Handle | CU4FGC 48U446 KAF2PZ2 2/5"-Yes41530BlackBlack1 to 3 PadlocksKaf2€70.70
SQUARE D KCD1PZ Handle | CU4FGD 48U447 KCD1PZ2 2/5"-Yes41510RedYellow1 to 3 PadlocksKcd1€70.70
SQUARE D KAD1PZ Handle | CU4FGE 48U444 KAD1PZ2 2/5"-Yes41530BlackBlack1 to 3 PadlocksKad1€70.70
