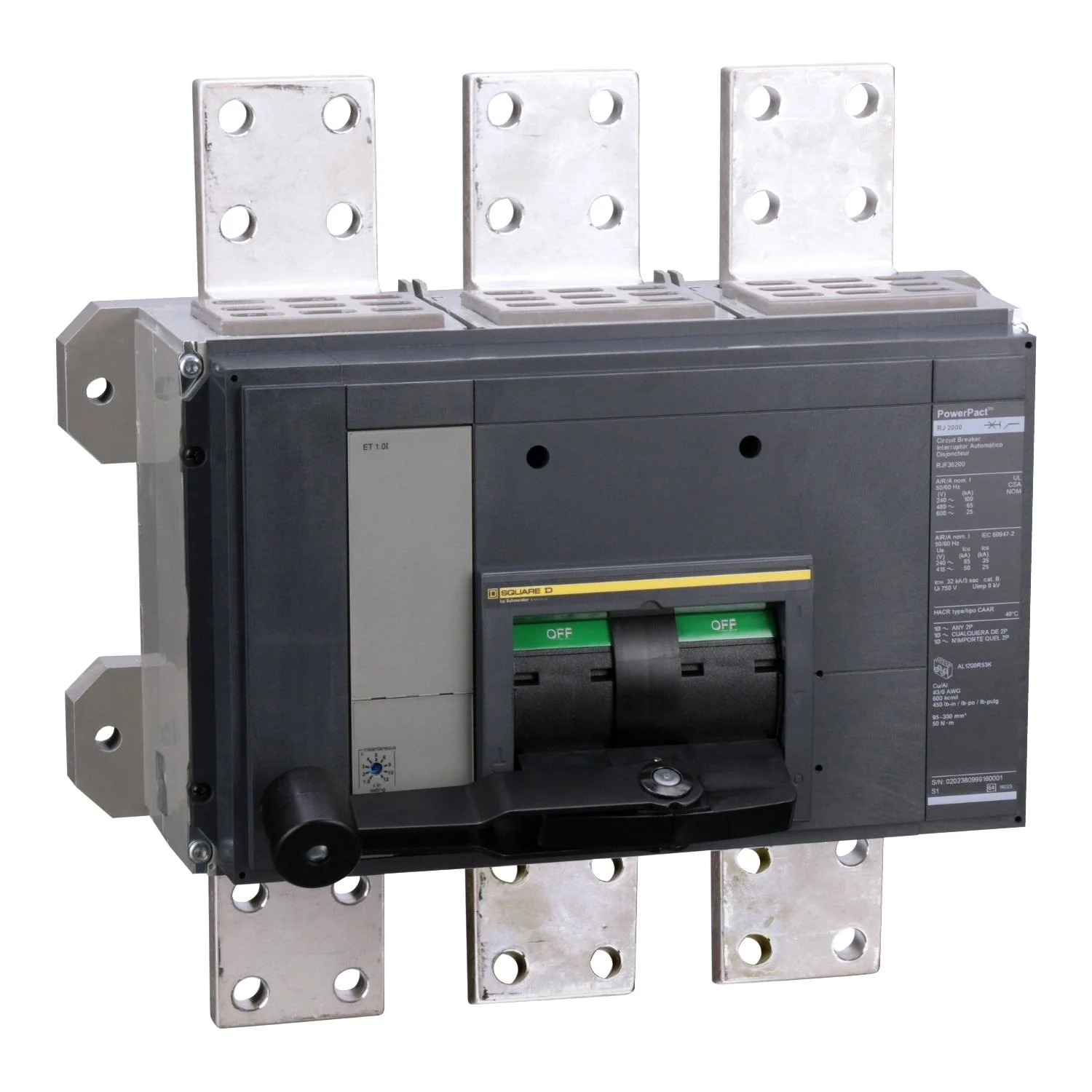

SQUARE D RJF36200 Circuit Breaker, 2000A, 600V, 3 Pole
Item: EC2QGBModel: RJF36200
In Stock : 3 Units Get it by Wednesday, Aug 19
5.00% off
€12,062.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Breaking Capacity Code | J |
| Comm Code Enhanced | 32713 |
| Connection Type | Bolt-On |
| Continuous Amps | 80% |
| Control Type | Operating Handle |
| Discount Schedule | 0DE2 |
| Frame Type | Rjf |
| Height | 16 6/25" |
| Ics Rated Service Breaking Capacity | 35 kA 240V AC 50/60 Hz, 25 kA 380/415V AC 50/60 Hz |
| Interrupt Rating | 65 kA @ 480V |
| Ip Degree Of Protection | IP40 |
| Local Signalling | Trip Indicator |
| Magnetic Tripping Amps | 3000/24000A |
| Mounting Mode | Unit Mount Busbar |
| Mounting Support | Busbar |
| Mounting Type | Unit |
| No. Of Poles | 3P |
| No. Of Slots | 4 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 13123.36 ft. (4000m) With Derating |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1 2/5" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Series | RJF Series |
| Suitability For Isolation | Yes |
| Terminal Connection | Line And Load |
| Terminal Identifier | AL2500RK |
| Terminal Type | Bus Bar |
| Type | Molded Case, Electronic Trip |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Width | 16.53" |
Shipping Info:
| Ship weight (kg) | 32.2 |
| Ship height (cm) | 41.25 |
| Ship length (cm) | 36.8 |
| Ship width (cm) | 42.01 |
| Country of Origin | MX |
