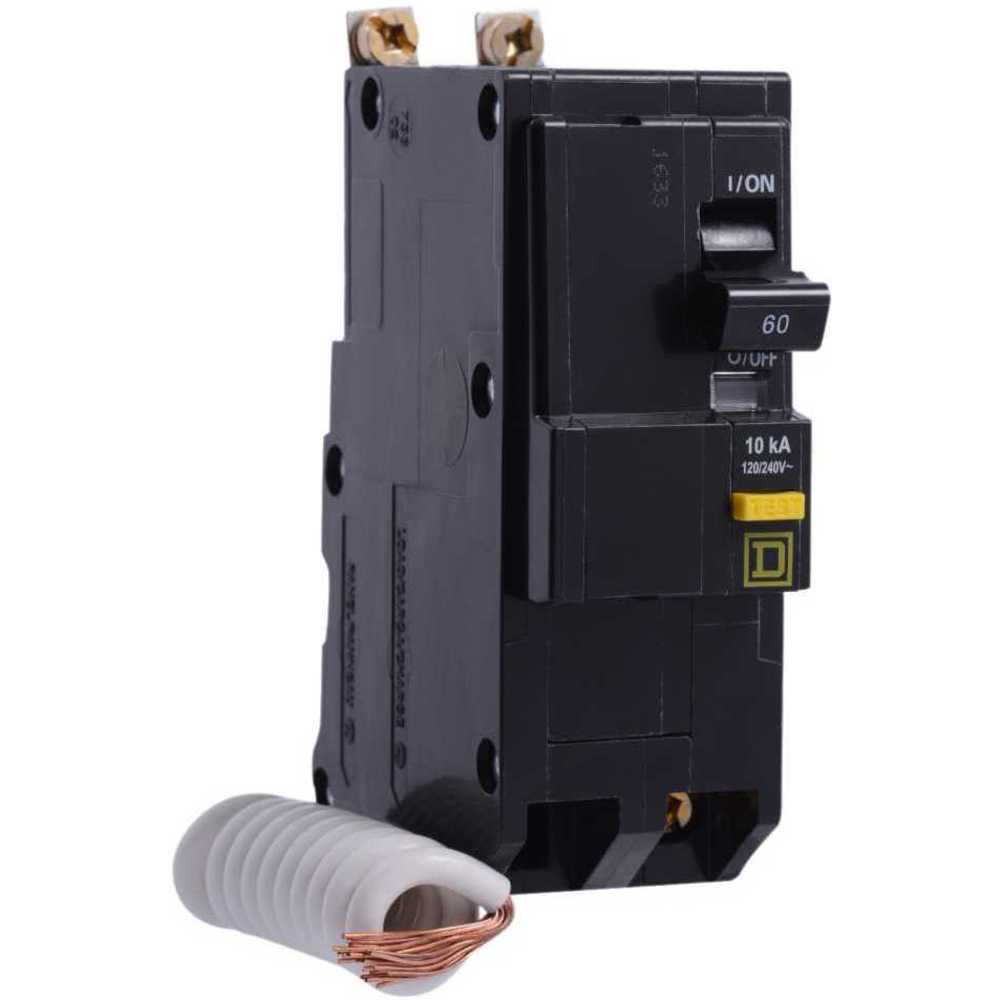

SQUARE D QOB260GFI Circuit Breaker Bolt-on 2 Pole 60a
Item: AF9GUZModel: QOB260GFICross Ref: 2GLJ1
7 In Stock
Ships within 2 days via
5.00% off
€363.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Ambient Rating | 104°F |
| Amps | 60A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Ground Fault Circuit Interrupter , Ground Fault Protecting Class A 6 mA |
| Compatible Panelboard/load Center Series | NQ, QO |
| Dc Voltage | Not Rated |
| Depth | 2.9" , 2.91" |
| Electrical Connection | Box Lugs |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A/QO |
| Height | 4.1" |
| Interrupt Rating | 10 kA @ 120/240V AC |
| Length | 4.12" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 4 AWG, 6 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 12 AWG, 14 AWG |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 2 |
| No. Of Poles | 2 |
| Phase | 1 |
| Rating | Not Rated |
| Returnability | Yes |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 44.3 lbf.in. @ 0.006 sq. in. to 0.03 sq. in. @ 12 AWG to 4 AWG |
| Voltage | 120/240V AC |
| Width | 1 1/2" , 1.5" |
| Wire Size | 12 AWG to 4 AWG, 14 AWG to 6 AWG |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 10.46 |
| Ship width (cm) | 3.81 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Voltage | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Min. Wire Size | Terminal Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 15A | 120V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | 12 AWG, 14 AWG | Screw Clamp | €260.08 | |
 |
QOB120CAFI | 20A | 120V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | 12 AWG, 14 AWG | Screw Clamp | €260.08 | |
 |
QOB120VHCAFI | 20A | 120V AC | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | 12 AWG, 14 AWG | Screw Clamp | €505.96 | |
 |
QOB110 | 10A | 120/240V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | 14 AWG | Screw Clamp | €28.96 | |
 |
QOB115 | 15A | 120/240V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | 14 AWG | Screw Clamp | €28.07 | |
 |
QOB120 | 20A | 120/240V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | 14 AWG | Screw Clamp | €30.58 | |
 |
QOB130 | 30A | 120/240V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | 14 AWG | Screw Clamp | €31.57 |
