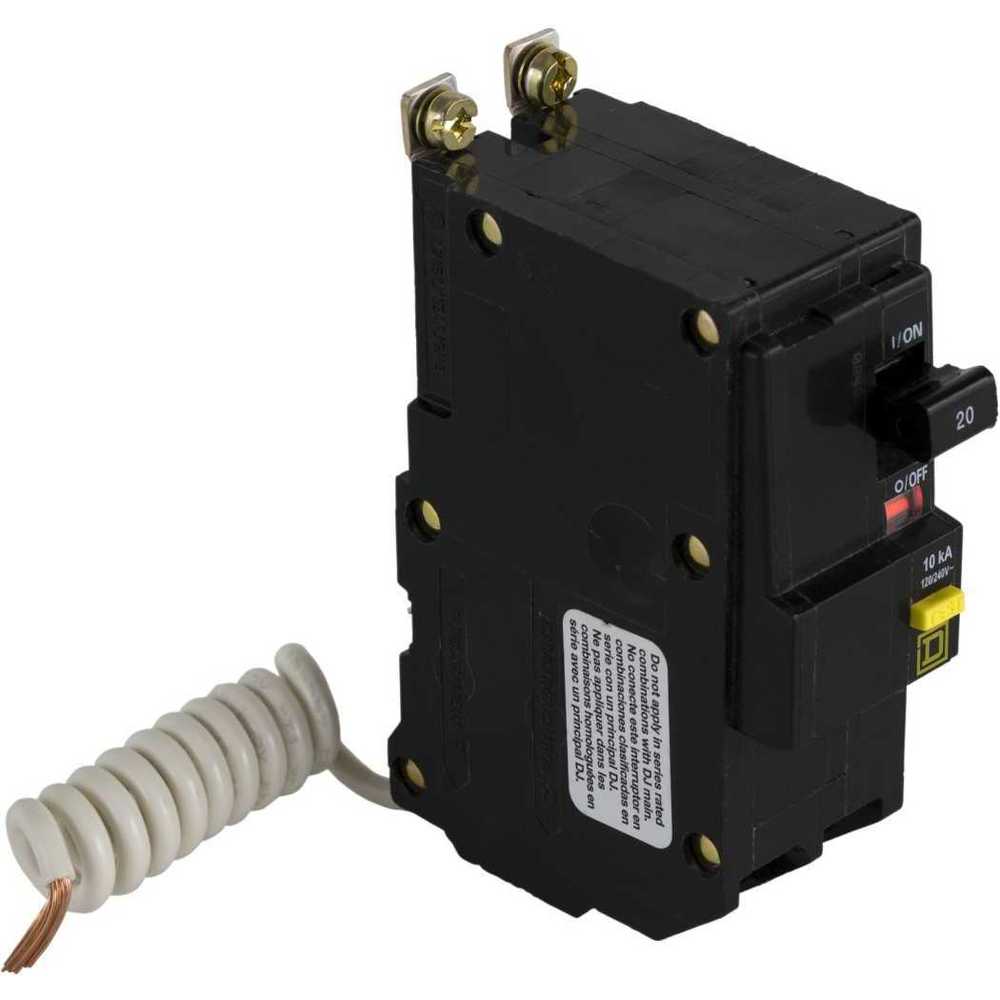

SQUARE D QOB220GFI Circuit Breaker 20 A
Item: AF9FPGModel: QOB220GFICross Ref: 2DH05
7 In Stock
Ships within 2 days via
5.00% off
€363.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Ambient Rating | 104°F |
| Amps | 20A |
| Circuit Breaker Type | Ground Fault Circuit Interrupter , Ground Fault Protecting Class A 6 mA |
| Dc Voltage | Not Rated |
| Depth | 2.9" , 2.91" |
| Electrical Connection | Pressure Plate |
| Frame Size | 100A/QO |
| Height | 4.1" |
| Interrupt Rating | 10 kA @ 120/240V AC, 10 kA @ 120V AC |
| Length | 3" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA |
| Min. Wire Size | 14 AWG |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 2 |
| No. Of Poles | 2 |
| Rating | Not Rated |
| Returnability | Yes |
| Terminal Connection | Screw Clamp |
| Terminal Connection Type | Screw Clamp |
| Tightening Torque | 35.4 lbf.in. @ 0.006 sq. in. to 0.03 sq. in. @ 12 AWG to 4 AWG |
| Voltage | 120/240V AC |
| Width | 1 1/2" , 1.5" |
| Wire Size | 14 AWG to 8 AWG, 12 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 13.72 |
| Ship width (cm) | 8.89 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Voltage | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Min. Wire Size | Terminal Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 15A | 120V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | 12 AWG, 14 AWG | Screw Clamp | €260.08 | |
 |
QOB120CAFI | 20A | 120V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | 12 AWG, 14 AWG | Screw Clamp | €260.08 | |
 |
QOB120VHCAFI | 20A | 120V AC | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | 12 AWG, 14 AWG | Screw Clamp | €505.96 | |
 |
QOB110 | 10A | 120/240V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | 14 AWG | Screw Clamp | €28.96 | |
 |
QOB115 | 15A | 120/240V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | 14 AWG | Screw Clamp | €28.07 | |
 |
QOB120 | 20A | 120/240V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | 14 AWG | Screw Clamp | €30.58 | |
 |
QOB130 | 30A | 120/240V AC | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | 14 AWG | Screw Clamp | €31.57 |
