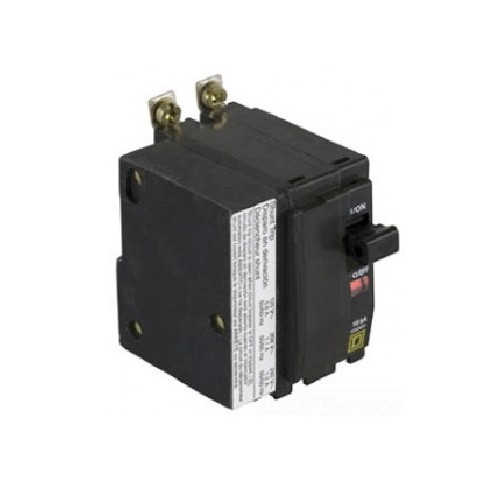

SQUARE D QOB2100VH-1021 Miniature Circuit Breaker, 22kAIC at 240V, 1 Phase, 100A
Item: CE6HTRModel: QOB2100VH-1021
7 In Stock
Ships within 2 days via
5.00% off
€611.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ambient Rating | 104°F |
| Amps | 100A |
| Amps Rating | 100A |
| Circuit Breaker Type | Standard |
| Depth | 2.9" |
| Electrical Connection | Box Lugs |
| Frame Type | QOB |
| Height | 3 1/2" |
| Interrupt Rating | 22 kA @ 120/240V AC, 22 kA @ 240V AC, 22 kA @ 120V AC |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 3 |
| No. Of Poles | 2 |
| Number Of Poles | 2 |
| Options | Shunt Trip 120/208/240V AC |
| Ratings | HACR Rated |
| Returnability | No |
| Tightening Torque | 49.6 lbf.-in. |
| Voltage | 240V |
| Voltage Rating | 120/240V AC |
| Voltage Type | AC |
| Width | 2.2" |
| Wire Size | 4 AWG to 2/0 AWG |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 7.39 |
| Ship width (cm) | 5.69 |
| Country of Origin | US |
Product Details:
- Square D QOB2100VH-1021 QOB Series circuit breaker used for disrupting the electrical circuit during current inrush and overload conditions
- Visi-Trip indicator allows clear identification of the tripped circuit breaker
- Bolt-on mounting facility with box lugs connection provide easy installation and wire arrangements
- Accommodates copper or aluminium wire of sizes ranging from 4 to 2 AWG
- Meets CSA and UL specifications
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Terminal Connection Type | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120CAFI | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120VHCAFI | 1 | 20A | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €505.96 | |
 |
QOB110 | 1 | 10A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.96 | |
 |
QOB115 | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.07 | |
 |
QOB120 | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €30.58 | |
 |
QOB130 | 1 | 30A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €31.57 |
