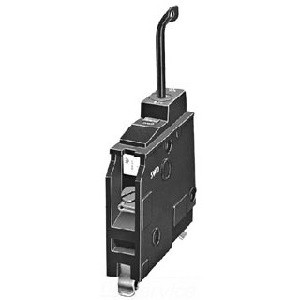

SQUARE D QOB120K Bolt-On Circuit Breaker, 1P, Key Operated, 10kA @120 / 240V
Item: CE6HRGModel: QOB120K
7 In Stock
Ships within 2 days via
5.00% off
€134.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ambient Rating | 104°F |
| Amps Rating | 20A |
| Circuit Breaker Type | Key Operated |
| Depth | 2.9" |
| Electrical Connection | Pressure Plate |
| Frame Type | QOB |
| Height | 3" |
| Interrupt Rating | 10 kA @ 120/240V AC |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 1 |
| No. Of Poles | 1 |
| Number Of Poles | 1 |
| Ratings | HACR Rated |
| Returnability | No |
| Tightening Torque | 35.4 lbf.-in. |
| Voltage Rating | 120/240V AC |
| Voltage Type | AC |
| Width | 0.7" |
| Wire Size | 14 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 8.64 |
| Ship width (cm) | 8.38 |
| Country of Origin | US |
Product Details:
- Square D QOB120K QOB Series circuit breaker designed for overcurrent protection and for switching on AC and DC systems
- Bolt-on mounting facility allows quick and secure field installations with NQD and NQOD panelboards
- Features a trip-free toggle mechanism with quick make, quick break action to freely move from its end position to the trip position
- Standard thermal-magnetic trip unit for delivering both instantaneous and time-delayed current limiting functions
- Comes equipped with a Visi-Trip indicator to display the tripped status of the breaker
- Calibrated at 40 degrees C and suitable for switching 120 VAC fluorescent lighting loads
- Features a key-operated mechanism which allows manual setting of the circuit breaker in ON, OFF or reset position
- UL-listed and CSA-certified
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Terminal Connection Type | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120CAFI | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120VHCAFI | 1 | 20A | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €505.96 | |
 |
QOB110 | 1 | 10A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.96 | |
 |
QOB115 | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.07 | |
 |
QOB120 | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €30.58 | |
 |
QOB130 | 1 | 30A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €31.57 |
