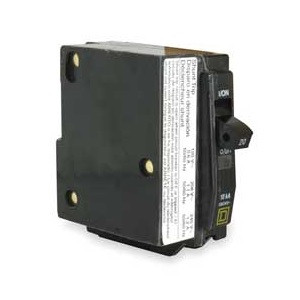

SQUARE D QOB120-1044 Miniature Circuit Breaker, 12 / 24 VDC Shunt Trip, 1 Phase
Get it by Monday, Apr 6
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ambient Rating | 104°F |
| Amps Rating | 20A |
| Circuit Breaker Type | Standard |
| Depth | 2.9" |
| Electrical Connection | Pressure Plate |
| Frame Type | QOB |
| Height | 3" |
| Interrupt Rating | 10 kA @ 120/240V AC, 10 kA @ 120V AC |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 2 |
| No. Of Poles | 1 |
| Number Of Poles | 1 |
| Options | Shunt Trip 12/24V AC/DC |
| Ratings | HACR and Switching Duty Rated |
| Returnability | No |
| Tightening Torque | 35.4 lbf.-in. |
| Voltage Rating | 120/240V AC |
| Voltage Type | AC |
| Width | 1.5" |
| Wire Size | 14 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 7.37 |
| Country of Origin | US |
Product Details:
- Square D QOB120-1044 circuit breaker designed to protect an electrical circuit from damages caused by excessive current flows
- Thermal-magnetic trip mechanism provides both long-time and instantaneous current limiting functions
- Pressure plate terminals to facilitate single- or two-wire terminations in 60 or 75 deg Celsius conductors
- Bolt-on mount facility allows easy installation on panels or switchboards in both horizontal and vertical directions
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Terminal Connection Type | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120CAFI | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120VHCAFI | 1 | 20A | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €505.96 | |
 |
QOB110 | 1 | 10A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.96 | |
 |
QOB115 | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.07 | |
 |
QOB120 | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €30.58 | |
 |
QOB130 | 1 | 30A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €31.57 |
