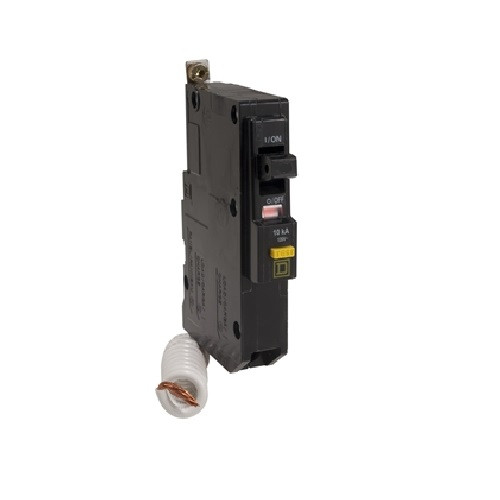

SQUARE D QOB115DF Miniature Circuit Breaker, 15A, Bolt-On Mount, 1Pole
Item: CE6HTJModel: QOB115DF
7 In Stock
Ships within 2 days via
5.00% off
€357.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ambient Rating | 104°F |
| Amps Rating | 15A |
| Circuit Breaker Type | Combination Arc-Fault And Ground Fault |
| Connections Terminals | Pigtail Neutral |
| Depth | 2.9" |
| Electrical Connection | Pressure Plate |
| Frame Type | QOB |
| Height | 4 4/5" |
| Interrupt Rating | 10 kA @ 120V AC |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 1 |
| No. Of Poles | 1 |
| Number Of Poles | 1 |
| Ratings | HACR Rated |
| Returnability | No |
| Tightening Torque | 35.4 lbf.-in. |
| Voltage Rating | 120V AC |
| Voltage Type | AC |
| Width | 0.7" |
| Wire Size | 14 AWG to 8 AWG, 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 12.09 |
| Ship length (cm) | 7.39 |
| Ship width (cm) | 1.91 |
| Country of Origin | MX |
Product Details:
- Square D QOB115DF QOB Series circuit breaker provides protection against electrical fires caused by arc faults and overload conditions
- Featuresa combination arc fault protection facility against both parallel arcing and series arcing conditions
- Bolt-on mounting configuration for quick installation and accommodating copper or aluminium wires with sizes ranging from 8 to 2 AWG
- CSA-certified
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Terminal Connection Type | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120CAFI | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120VHCAFI | 1 | 20A | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €505.96 | |
 |
QOB110 | 1 | 10A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.96 | |
 |
QOB115 | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.07 | |
 |
QOB120 | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €30.58 | |
 |
QOB130 | 1 | 30A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €31.57 |
