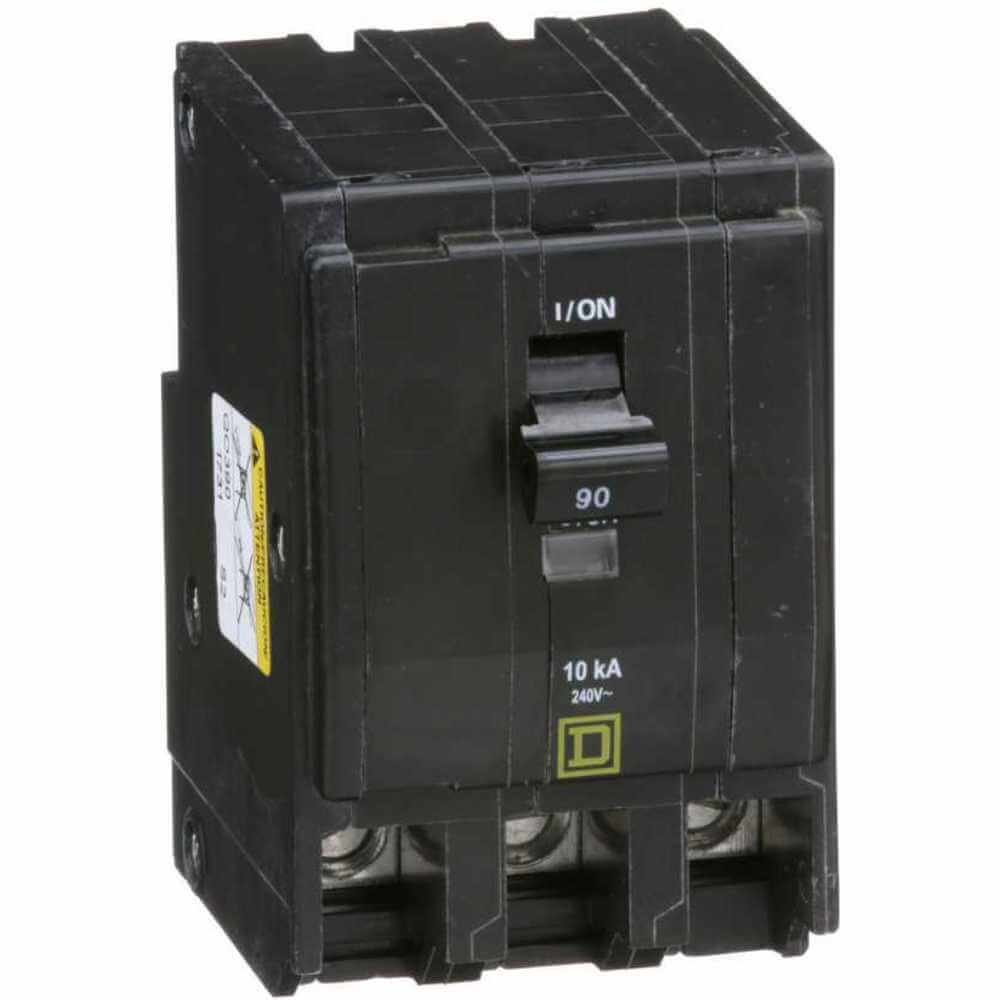

SQUARE D QO390 Plug In Circuit Breaker 90a 3p 10ka 240v
Item: AA9GHLModel: QO390Cross Ref: 1D331
7 In Stock
Ships within 2 days via
10.00% off
€559.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Air @ 120v Ac | 10 kA |
| Air @ 240vac | 10 kA |
| Air @ 48v Dc | 5 kA |
| Amps | 90A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | 48V DC |
| Dc Voltage Rating | 48V |
| Depth | 2.91" |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A, QO |
| Length | 3 1/2" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 2 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 4 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Terminal Connection | Lug |
| Terminal Connection Type | Box Lug |
| Width | 2 1/4" |
| Wire Size | 2/0 AWG |
Shipping Info:
| Ship weight (kg) | 0.48 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 8.64 |
| HS code | 8536200040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Number Of Poles | Max. Air Rating | Ac Voltage Rating | Phase | Depth | Dc Voltage | Terminal Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO115 | 15A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €36.62 | |
 |
QO115HM | 15A | 1 | 10 kA At 120V AC | - | Single | 2.91" | 48V DC | Screw Clamp | €45.17 | |
 |
QO120 | 20A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €41.42 | |
 |
QO120HM | 20A | 1 | 10 kA At 120/240V AC | 120V AC | Single | 2.91" | Not Rated | Screw Clamp | €45.17 | |
 |
QO120VH | 20A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €103.15 | |
 |
QO130 | 30A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €33.86 | |
|
QO130VH | 30A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | Not Rated | Screw Clamp | €130.91 |
