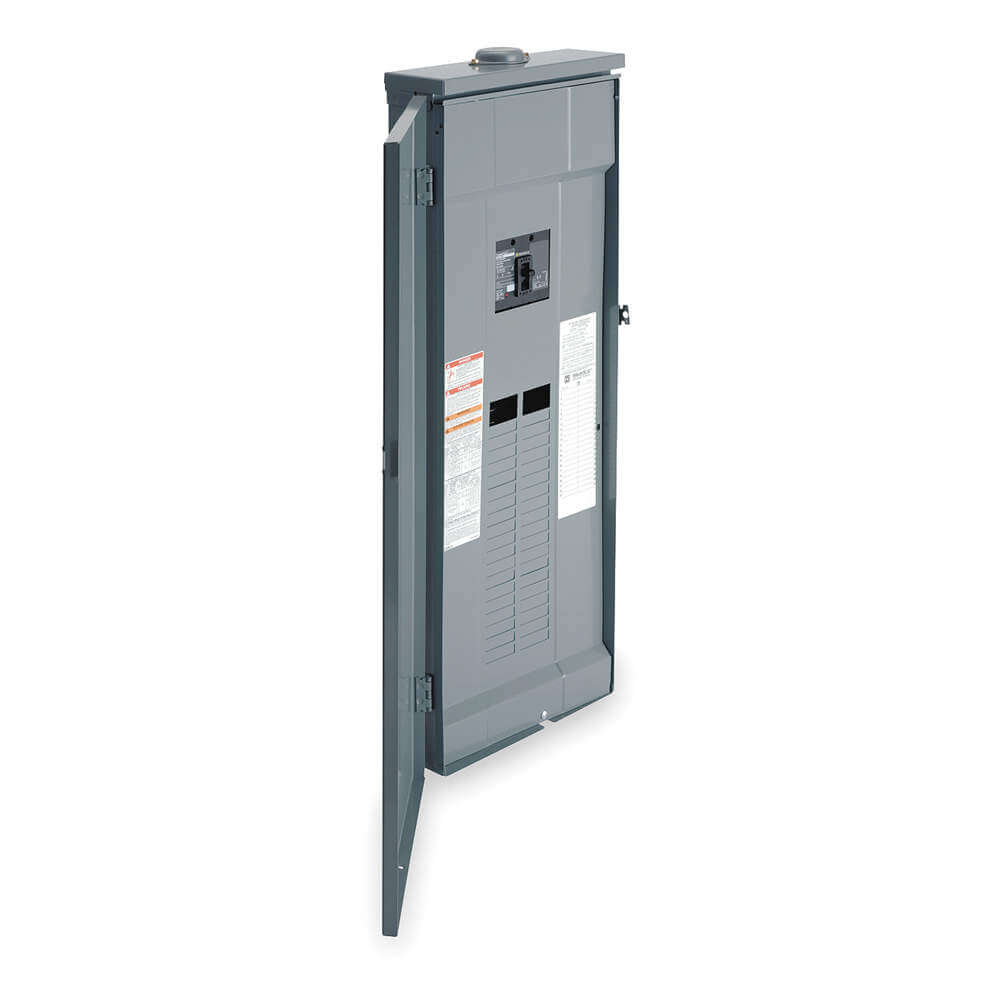

SQUARE D QO342MQ225RB Load Center CB 225A 208Y/120VAC 3-Phase
Get it by Thursday, Aug 20
5.00% off
€3,285.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps | 225A |
| Box No. | 14R |
| Bus Material | Tin Plated Copper |
| Busbar Material | Copper |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | QO |
| Color | Gray |
| Cover Attachment Style | Side Hinge |
| Cover Closure Method | Door Latch |
| Cover Type | Surface Cover |
| Electrical Connection | Lugs |
| Enclosure Material | Galvanized Steel , Welded Steel |
| Enclosure Nema Rating | 3R |
| Enclosure Rating | NEMA 3R Weatherproof Enclosure |
| Enclosure Surface Finish | Enamel |
| Feed Location | Bottom/Top |
| For Use With | Square D QO Circuit Breaker |
| Ground Bar | Grounding Bar (Ordered Separately) |
| Height | 39.38" , 39.4" |
| Included Enclosure Cover | Surface Cover |
| Location | Outdoor |
| Main Circuit Breaker Or Main Lug | Convertible, Main Circuit Breaker |
| Max. No. Of Single Pole Circuits | 42 |
| Max. No. Of Tandem Breakers | 0 |
| Max. Operating Temp. | 104°F |
| Max. Short Circuit Amps | 25 kA |
| Min. Operating Temp. | 23°F |
| No. Of Phase | 3 |
| No. Of Spaces | 42 |
| Number Of Spaces | 42 |
| Phase | 3 |
| Pon Convertible Mains Lugs | Main Breaker |
| Recommended Ground Bar Kit | 1D371 |
| Recommended Surface Cover | Included |
| Returnability | Yes |
| Short Circuit Amps | 25 kA |
| Short Circuit Current Rating | 25kA |
| Surface Finish | Baked Enamel Gray |
| Voltage | 208/120/240V AC , 208/240/120V AC |
| Width | 14.77" , 14.8" |
| Wire Size | 4 AWG to 300 kcmil |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 100.03 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 37.52 |
| Country of Origin | US |
Product Details:
- Enclosure NEMA Rating : 3R
- Main Circuit Breaker or Main Lug : Main Circuit Breaker, Convertible
- Max. No. of Tandem Breakers : 0
- Recommended Surface Cover : Included
- Bus Material : Shielded Tin Plated Copper
- Recommended Ground Bar Kit : 1D371
- Special Features: Top or Bottom Feed
Product Variants
| Product | Model | Height | Amps | Phase | Voltage | Bus Material | Enclosure Material | Short Circuit Amps | No. Of Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO24L70RB | 9 2/5" | 70A | 1 | 120/240V AC | Tin Plated Aluminum | Galvanized Steel | 10 kA | 1 | €188.04 | |
 |
QO312L125GRB | 18.9" | 125A | 3 | 208/120/240V AC | Tin Plated Copper | Galvanized Steel | 65 kA | 3 | €752.38 | |
|
QO318L200GRB | 29.84" | 200A | 3 | 208/120/240V AC | Tin Plated Copper | Galvanized Steel | 65 kA | 3 | €1,044.54 | |
|
QO320L125GRB | 22 1/2" | 125A | 3 | 208/120/240V AC | Tin Plated Copper | Galvanized Steel | 65 kA | 3 | €966.95 | |
|
QO330L200GRB | 29.84" | 200A | 3 | 208/120/240V AC | Tin Plated Copper | Galvanized Steel | 65 kA | 3 | €1,302.38 | |
 |
QO342L225GRB | 38" | 225A | 3 | 208/120/240V AC | Tin Plated Copper | Galvanized Steel | 65 kA | 3 | €2,277.28 | |
|
QO403L60NRB | 13.19" | 60A | 3 | 208/120/240V AC | Tin Plated Aluminum | Galvanized Steel | 65 kA | 3 | €321.71 |
