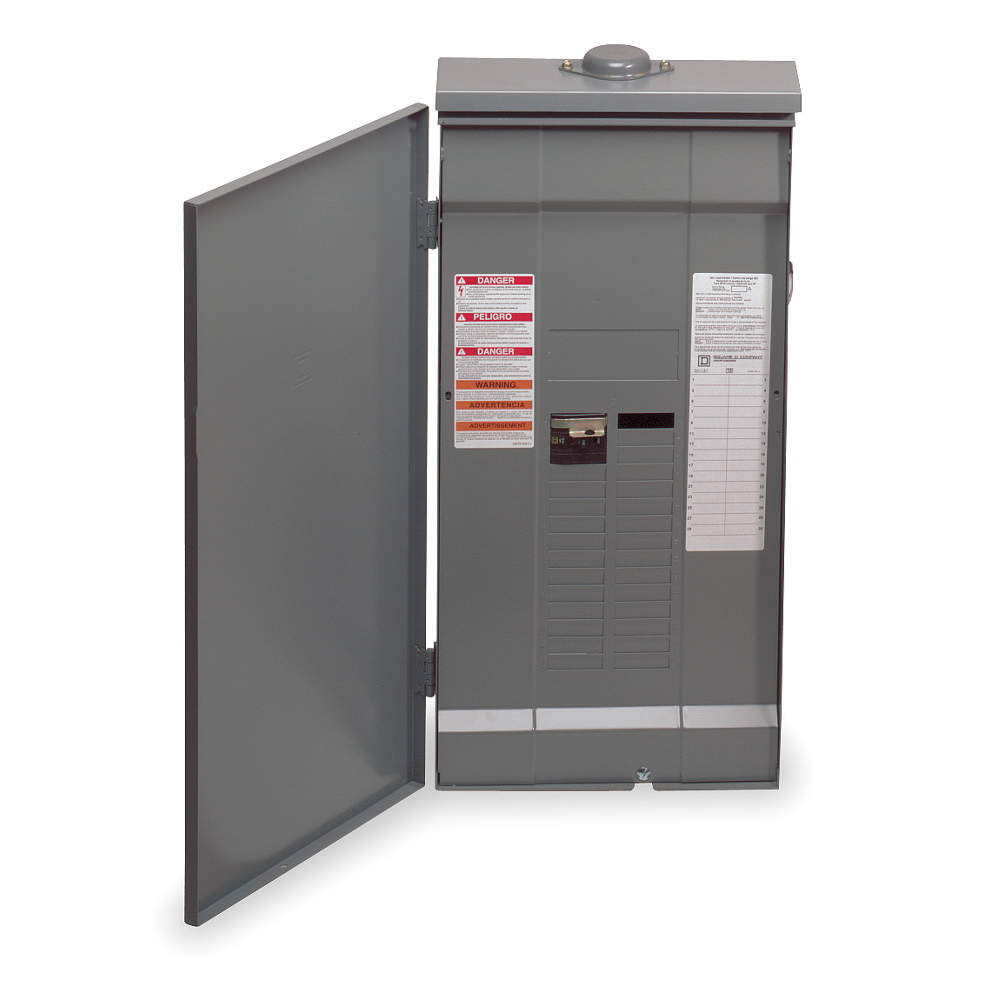

SQUARE D QO327M100RB Load Center CB 100A 208Y/120VAC 3-Phase
Get it by Thursday, Dec 18
10.00% off
€1,625.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Amps | 100A |
| Bus Material | Tin Plated Copper |
| Circuit Breaker Type | QO |
| Color | Gray |
| Cover Attachment Style | Side Hinge |
| Cover Closure Method | Door Latch |
| Depth | 4 1/2" |
| Enclosure Material | Galvanized Steel |
| Enclosure Nema Rating | 3R |
| Enclosure Surface Finish | Enamel |
| Feed Location | Bottom/Top |
| For Use With | Square D QO Circuit Breakers |
| Height | 29.84" |
| Included Enclosure Cover | Surface Cover |
| Location | Outdoor |
| Main Circuit Breaker Or Main Lug | Convertible, Main Circuit Breaker |
| Max. No. Of Tandem Breakers | 0 |
| Max. Operating Temp. | 104°F |
| Min. Operating Temp. | 23°F |
| Number Of Spaces | 27 |
| Phase | 3 |
| Recommended Ground Bar Kit | 1D369 |
| Recommended Surface Cover | Included |
| Short Circuit Amps Rating | 25 kA |
| Short Circuit Current Rating | 22 kA |
| Short Circuit Current Rating | 25kA |
| Special Features | Mercury Free |
| Standards | Rohs Compliant, Ul Listed |
| Voltage | 208/120/240V AC |
| Width | 14.77" |
Shipping Info:
| Ship weight (kg) | 14.92 |
| Ship height (cm) | 75.79 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 37.52 |
| Country of Origin | US |
Product Details:
- Enclosure NEMA Rating : 3R
- Main Circuit Breaker or Main Lug : Main Circuit Breaker, Convertible
- Max. No. of Tandem Breakers : 0
- Recommended Surface Cover : Included
- Bus Material : Shielded Tin Plated Copper
- Recommended Ground Bar Kit : 1D369
- Special Features: Top or Bottom Feed
Product Variants
| Product | Model | Height | Phase | Amps | Voltage | Enclosure Material | Bus Material | Recommended Ground Bar Kit | Max. No. Of Tandem Breakers | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO24L70RB | 9 2/5" | 1 | 70A | 120/240V AC | Galvanized Steel | Tin Plated Aluminum | 5B718 | 2 | €188.04 | |
 |
QO312L125GRB | 18.9" | 3 | 125A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | €752.38 | |
|
QO318L200GRB | 29.84" | 3 | - | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | €1,044.54 | |
|
QO320L125GRB | 22 1/2" | 3 | 125A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | €966.95 | |
|
QO330L200GRB | 29.84" | 3 | 200A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | €1,302.38 | |
 |
QO342L225GRB | 38" | 3 | 225A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | €2,277.28 | |
|
QO403L60NRB | 13.19" | 3 | 60A | 208/120/240V AC | Galvanized Steel | Tin Plated Aluminum | 5B718 | - | €321.71 |
