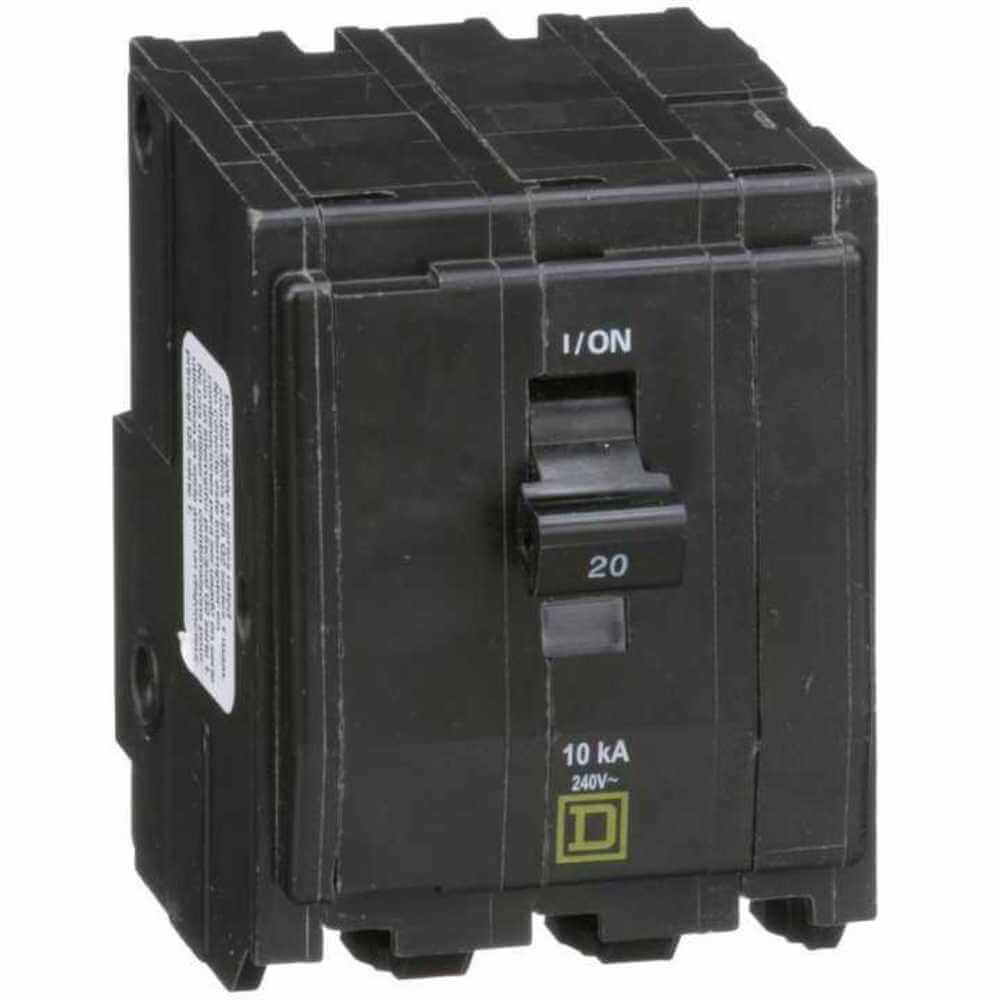

SQUARE D QO320 Plug In Circuit Breaker 20a 3p 10ka 240v
Item: AA9GHCModel: QO320Cross Ref: 1D322
7 In Stock
Ships within 2 days via
5.00% off
€123.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Air @ 120v Ac | 10 kA |
| Air @ 240v | 10 kA |
| Air @ 48v | 5 kA |
| Ambient Rating | 104°F |
| Amps | 20A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | 48V , 48V DC |
| Depth | 2.9" , 2.91" |
| Electrical Connection | Pressure Plate |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A, QO |
| Height | 3" |
| Interrupt Rating | 10 kA @ 120/240V AC, 10 kA @ 240V AC, 10 kA @ 120V AC |
| Length | 3" |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Air Rating | 10kA |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 14 AWG |
| Mounting Type | Plug In |
| No. Of Panel Spaces | 3 |
| No. Of Poles | 3 |
| Phase | 3 |
| Rating | HACR Rated |
| Returnability | Yes |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Screw Clamp |
| Tightening Torque | 35.4 lbf.-in. |
| Voltage | 120/240V AC |
| Width | 2 1/4" , 2.2" |
| Wire Size | 14 AWG , 14 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.59 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | No. Of Poles | Amps | Voltage | Depth | No. Of Panel Spaces | Returnability | Height | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO115 | 1 | 15A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €16.63 | |
 |
QO115HM | 1 | 15A | 120V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €33.73 | |
 |
QO120 | 1 | 20A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €16.63 | |
 |
QO120HM | 1 | 20A | 120V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €33.73 | |
 |
QO120VH | 1 | 20A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €43.81 | |
 |
QO130 | 1 | 30A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €17.18 | |
|
QO130VH | 1 | 30A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €43.81 |
