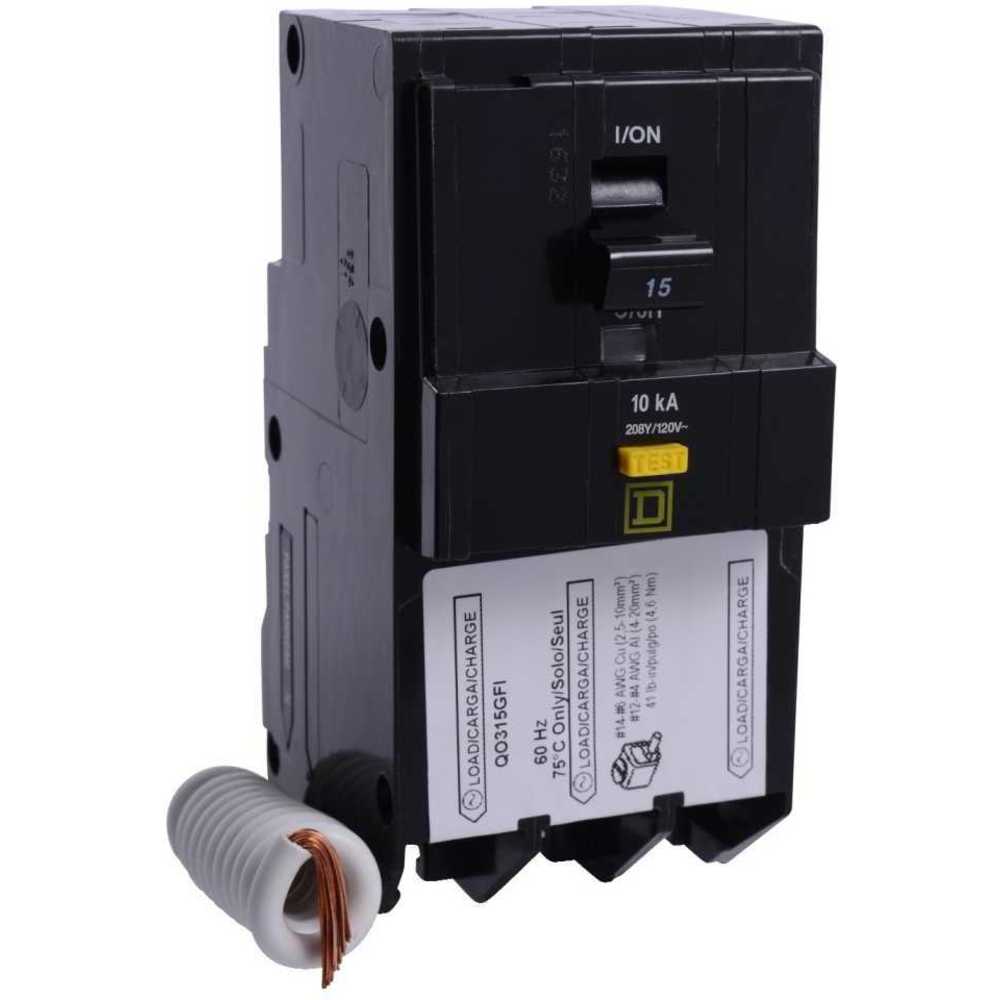

SQUARE D QO315GFI Plug In Circuit Breaker, 120 VAC, Toggle, Pressure Plate
Item: AG7GAUModel: QO315GFICross Ref: 6RHG1
7 In Stock
Ships within 2 days via
5.00% off
€927.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ac Voltage Rating | 120V AC |
| Ambient Rating | 104°F |
| Amps | 15A |
| Amps Rating | 15A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Ground Fault Circuit Interrupter (Class A-5 Ma) |
| Compatible Panelboard/load Center Series | NQ, QO |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 2.9" , 2.91" |
| Electrical Connection | Pressure Plate |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A, QO |
| Height | 4.1" |
| Interrupt Rating | 10 kA @ 208/120V AC |
| Length | 4.12" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120V AC |
| Max. Wire Size | 8 AWG |
| Minimum Wire Size | 12 AWG, 14 AWG |
| Mounting Type | Plug In |
| No. Of Panel Spaces | 3 |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Phase | Three |
| Ratings | Not Rated |
| Returnability | Yes |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Box Lug |
| Tightening Torque | 35.4 lbf.in. @ 0.006 sq. in. to 0.03 sq. in. @ 12 AWG to 4 AWG |
| Voltage Rating | 208/120V AC |
| Width | 2 1/4" , 2.2" |
| Wire Size | 12 AWG , 14 AWG to 8 AWG, 12 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.78 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 10.46 |
| Ship width (cm) | 5.72 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Compact and easy to handle circuit breaker widely used in the protection of electrical devices, system wiring and sensitive electronic components
- Provided with ground fault protection for load level detection
- Adheres to CSA and UL standards
Product Variants
| Product | Model | Number Of Poles | Amps | Ac Voltage Rating | Max. Air Rating | Phase | Depth | Terminal Connection Type | Dc Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO115GFI | 1 | 15A | 120V AC | 10 kA At 120V AC | Single | 2.91" | Screw Clamp | Not Rated | €109.42 | |
 |
QO120GFI | 1 | 20A | 120V AC | 10 kA | - | 2.91" | Screw Clamp | 48V DC | €109.42 | |
 |
QO130GFI | 1 | 30A | 120V AC | 10 kA At 120V AC | Single | 2.91" | Screw Clamp | 48V DC | €109.42 | |
 |
QO215GFI | 2 | 15A | 120/240V AC | 10 kA At 120/240V AC | Single | 2.91" | Screw Clamp | Not Rated | €215.53 | |
 |
QO220GFI | 2 | 20A | 120/240V AC | 10 kA At 120/240V AC | Single | 2.91" | Screw Clamp | 48V DC | €217.16 | |
 |
QO230GFI | 2 | 30A | 120/240V AC | 10 kA At 120/240V AC | Single | 2.91" | Screw Clamp | 48V DC | €210.49 | |
 |
QO240GFI | 2 | 40A | 120/240V AC | 10 kA At 120/240V AC | Single | 2.91" | Box Lug | 48V DC | €217.16 |
