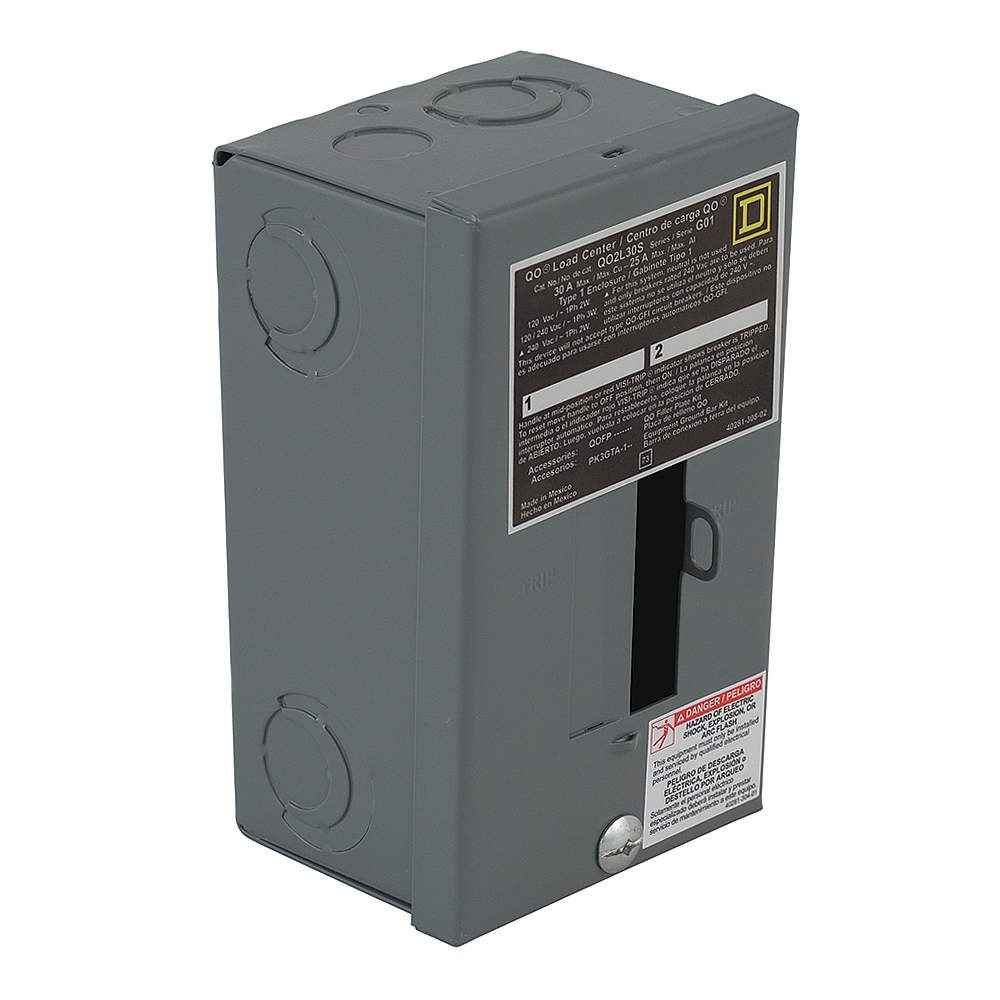

SQUARE D QO2L30S Load Center Lug 30A 120/240VAC 1-Phase
Item: AJ2HNRModel: QO2L30SCross Ref: 5B755
7 In Stock
Ships within 2 days via
5.00% off
€67.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Load Center |
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps | 30A |
| Amps Rating | 30A |
| Box No. | 1 |
| Bus Material | Tin Plated Aluminum |
| Busbar Material | Aluminium |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | QO |
| Color | Gray |
| Cover Attachment Style | Clip, Screw On |
| Cover Closure Method | Lift Off |
| Cover Type | Surface Cover |
| Depth | 3" |
| Electrical Connection | Lugs |
| Enclosure Material | Steel , Welded Sheet Steel |
| Enclosure Nema Rating | 1 |
| Enclosure Rating | NEMA 1 Indoor Enclosure |
| Enclosure Surface Finish | Enamel |
| Feed Location | Bottom/Top |
| For Use With | Square D QO Circuit Breakers |
| Ground Bar | Grounding Bar (Ordered Separately) |
| Height | 6.7" , 6.73" |
| Included Enclosure Cover | Surface Cover |
| Location | Indoor |
| Main Circuit Breaker Or Main Lug | Main Lug |
| Max. No. Of Single Pole Circuits | 2 |
| Max. No. Of Tandem Breakers | 0 |
| Max. Operating Temp. | 104°F |
| Max. Short Circuit Amps Rating | 10 kA |
| Min. Operating Temp. | 23°F |
| No. Of Spaces | 2 |
| Number Of Phases | 1 |
| Number Of Spaces | 2 |
| Phase | 1 |
| Pon Convertible Mains (lugs) | Fixed Mains (Lugs) |
| Recommended Ground Bar Kit | 5B717 |
| Recommended Surface Cover | Included |
| Returnability | Yes |
| Short Circuit Amps Rating | 10 kA |
| Short Circuit Current Rating | 10kA |
| Special Features | Mercury Free |
| Standards | Rohs Compliant, Ul Listed |
| Surface Finish | Baked Enamel Gray |
| Tightening Torque | Main Lugs 35 lbs.-in., 14 AWG to 10, Aluminium, Copper, Main Lugs 35 lbs.-in., 12 AWG to 10, Aluminium, Copper |
| Voltage | 120/240V AC |
| Voltage Rating | 120/240V AC |
| Width | 3.8" , 3.81" |
| Wire Size | 14 AWG to 10 AWG, 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.94 |
| Ship height (cm) | 10.69 |
| Ship length (cm) | 19.81 |
| Ship width (cm) | 10.9 |
| Country of Origin | MX |
Product Details:
- Enclosure NEMA Rating : 1
- Main Circuit Breaker or Main Lug : Main Lug
- Max. No. of Tandem Breakers : 0
- Recommended Surface Cover : Included
- Bus Material : Shielded Plated Copper
- Recommended Ground Bar Kit : 5B717
- Special Features: Top or Bottom Feed
Product Variants
| Product | Model | Height | Phase | Amps | Voltage | Enclosure Material | Max. No. Of Tandem Breakers | Short Circuit Amps Rating | Bus Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO24L70F | 9.3" | 1 | 70A | 120/240V AC | Steel | 2 | 10 kA | Tin Plated Aluminum | €124.58 | |
 |
QO24L70S | 9.3" | 1 | 70A | 120/240V AC | Steel | 2 | 10 kA | Tin Plated Aluminum | €110.41 | |
 |
QO312L125G | 17.9" | 3 | 125A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Copper | €472.65 | |
|
QO318L200G | 29.84" | 3 | 200A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Copper | €685.49 | |
|
QO320L125G | 20.9" | 3 | 125A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Copper | €690.18 | |
|
QO330L200G | 30" | 3 | 200A | 120/208V/120/240V AC | Steel | - | 65 kA | - | €701.67 | |
|
QO403L60NF | 13.1" | 3 | 60A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Aluminum | €213.16 |
