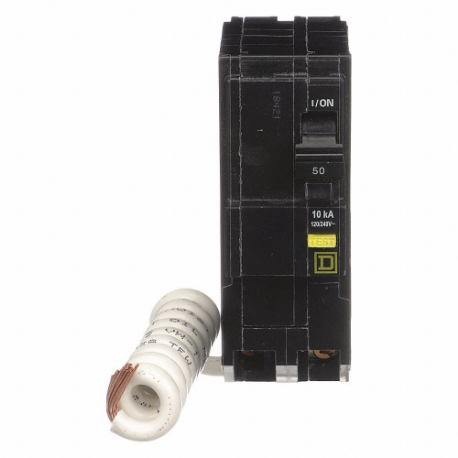

SQUARE D QO250GFIC Miniature Circuit Breaker 120/240V 50A
Item: CU4FWEModel: QO250GFICCross Ref: 48M334
7 In Stock
Ships within 2 days via
5.00% off
€592.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 120/240VAC |
| Ambient Rating | 104°F |
| Amps | 50A |
| Circuit Breaker Mounting Style | Plug-In |
| Circuit Breaker Type | Ground Fault Protecting Class A 6 mA |
| Comm Code Enhanced | 32132 |
| Curve Type | A |
| Depth | 2.9" |
| Discount Schedule | DE2A |
| Electrical Connection | Box Lugs |
| Height | 4.1" |
| Interrupt Rating | 10 kA @ 120/240V AC, 10 kA @ 120V AC |
| Max. Wire Size | 4 AWG, 6 AWG |
| Mfr. Series | QO |
| Min. Wire Size | 12 AWG, 14 AWG |
| Mounting Type | Plug In |
| No. Of Panel Spaces | 2 |
| No. Of Poles | 2 , 2P |
| Range | Qo |
| Rating | Not Rated |
| Returnability | Yes |
| Series | QO Series |
| Terminal Connection | Box Lugs |
| Terminal Type | Box Lug |
| Tightening Torque | 44.3 lbf.in. @ 0.006 sq. in. to 0.03 sq. in. @ 12 AWG to 4 AWG |
| Trip Sensitivity | 4-6 mA |
| Type | Thermal Magnetic, Co Mmon Trip, Equipment Protector |
| Type Of Packing | Clam |
| Voltage | 120/240V AC |
| Width | 1 1/2" , 1.5" |
| Wire Size | 12 AWG to 4 AWG, 14 AWG to 6 AWG |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 10.5 |
| Ship length (cm) | 7.4 |
| Ship width (cm) | 3.8 |
| Country of Origin | MX |
Product Variants
| Product | Model | No. Of Poles | Amps | Voltage | Depth | No. Of Panel Spaces | Returnability | Height | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO115 | 1 | 15A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €16.63 | |
 |
QO115HM | 1 | 15A | 120V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €33.73 | |
 |
QO120 | 1 | 20A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €16.63 | |
 |
QO120HM | 1 | 20A | 120V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €33.73 | |
 |
QO120VH | 1 | 20A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €43.81 | |
 |
QO130 | 1 | 30A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €17.18 | |
|
QO130VH | 1 | 30A | 120/240V AC | 2.91" | 1 | Yes | 3" | Pressure Plate | €43.81 |
