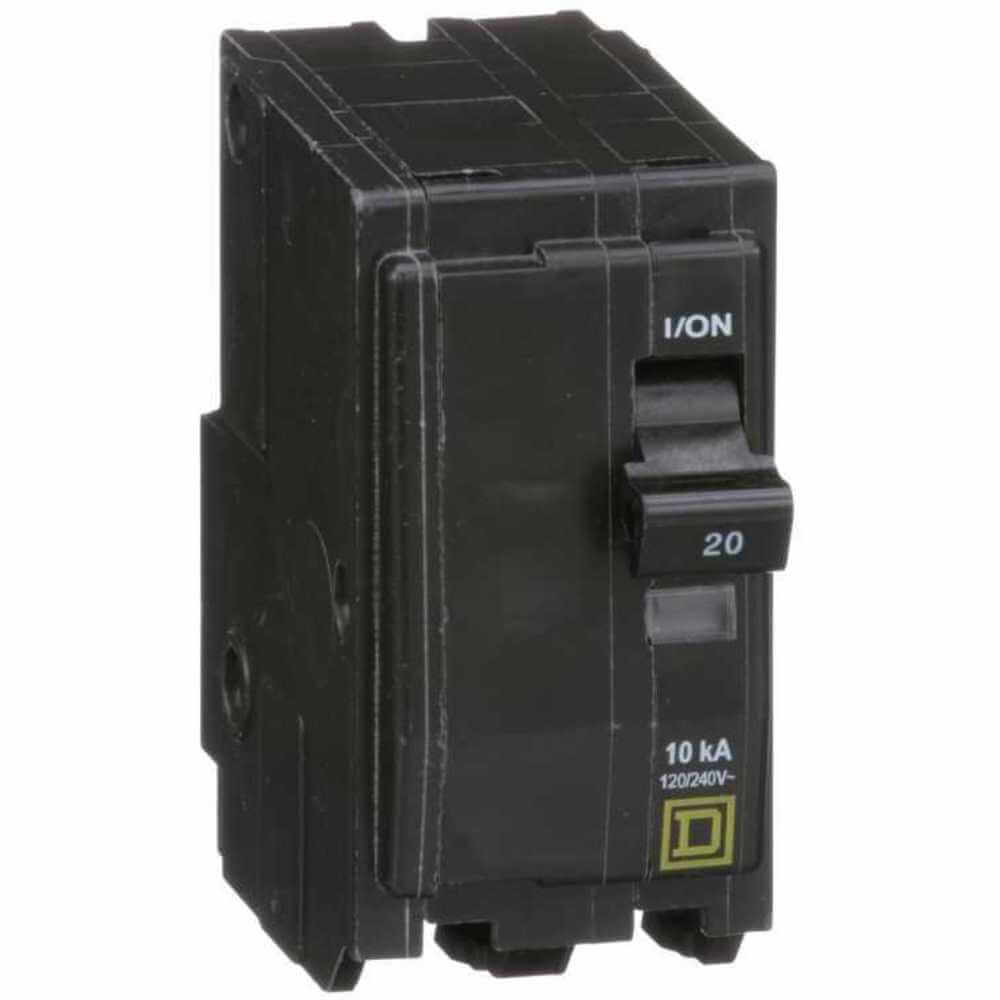

SQUARE D QO220 Miniature Circuit Breaker, 20 A, 120 / 240 V, 2 P, 1 Phase
Item: AA9GGFModel: QO220Cross Ref: 1D301
7 In Stock
Ships within 2 days via
10.00% off
€34.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Air @ 120v Ac | 10 kA |
| Air @ 240vac | 10 kA |
| Air @ 48v Dc | 5 kA |
| Amps | 20A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | 48V DC |
| Dc Voltage Rating | 48V |
| Depth | 2.91" |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A, QO |
| Length | 3" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 14 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Screw Clamp |
| Width | 1 1/2" |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 8.38 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- QO Series mini circuit breaker used for overload and short-circuit protection in electrical systems and other sensitive equipment
- ANSI-certified and UL-listed unit
- Interrupting capacity of 10 kAIC at 120 VAC and 5 kAIC at 48 VDC
- Equipped with a Visi-Trip indicator for easy identification of the tripping / breaking status
- Plug-in design reduces installation downtime
- Suitable for use with QO load centers; and CSED / NQOD panel boards
- Accommodates copper and aluminium wire sizes of 14 - 8 AWG
Product Variants
| Product | Model | Amps | Number Of Poles | Max. Air Rating | Ac Voltage Rating | Phase | Depth | Dc Voltage | Terminal Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO115 | 15A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €15.25 | |
 |
QO115HM | 15A | 1 | 10 kA At 120V AC | - | Single | 2.91" | 48V DC | Screw Clamp | €30.92 | |
 |
QO120 | 20A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €15.25 | |
 |
QO120HM | 20A | 1 | 10 kA At 120/240V AC | 120V AC | Single | 2.91" | Not Rated | Screw Clamp | €30.92 | |
 |
QO120VH | 20A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €40.16 | |
 |
QO130 | 30A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €15.74 | |
|
QO130VH | 30A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | Not Rated | Screw Clamp | €40.16 |
