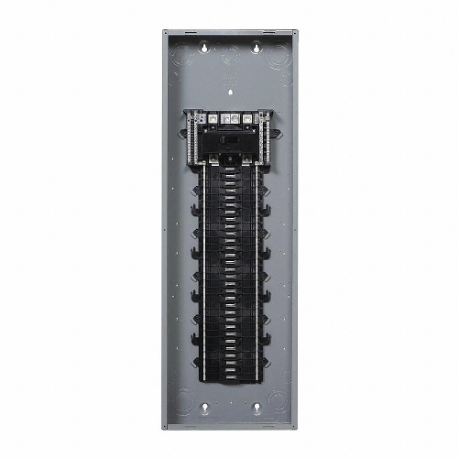

SQUARE D QO160M200PC Load Center, 200 A, 120/240 Vac, Flush Cover
Get it by Thursday, Apr 2
5.00% off
€1,304.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps | 200A |
| Amps Rating | 200A |
| Box No. | 24 |
| Bus Material | Tin Plated Copper |
| Busbar Material | Copper |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | QO |
| Color | Gray |
| Cover Attachment Style | Screw On |
| Cover Closure Method | Lift Off |
| Cover Type | Combination Flush/Surface Cover |
| Depth | 3 3/4" |
| Electrical Connection | Lugs |
| Enclosure Material | Steel , Welded Sheet Steel |
| Enclosure Nema Rating | 1 |
| Enclosure Rating | NEMA 1 Indoor Enclosure |
| Enclosure Surface Finish | Enamel |
| Feed Location | Bottom/Top |
| For Use With | Square D QO Circuit Breakers |
| Ground Bar | Grounding Bar (Ordered Separately) |
| Height | 43 4/25" , 43.1" |
| Included Enclosure Cover | Flush Cover |
| Location | Indoor |
| Main Circuit Breaker Or Main Lug | Convertible, Main Circuit Breaker |
| Max. No. Of Single Pole Circuits | 72 |
| Max. No. Of Tandem Breakers | 0 , 12 |
| Max. Operating Temp. | 104°F |
| Max. Short Circuit Amps Rating | 22 kA |
| Min. Operating Temp. | 23°F |
| No. Of Spaces | 60 |
| Number Of Phases | 1 |
| Number Of Spaces | 60 |
| Phase | 1 |
| Pon Convertible Mains (lugs) | PoN Convertible Mains (Breaker) |
| Recommended Flush Cover | Included |
| Recommended Ground Bar Kit | Mfr. No. PK23GTA |
| Recommended Surface Cover | Included |
| Returnability | Yes |
| Short Circuit Amps Rating | 22 kA |
| Special Features | Mercury Free |
| Standards | Rohs Compliant, Ul Listed |
| Surface Finish | Baked Enamel Gray |
| Tightening Torque | 20 lbs.-in. |
| Voltage | 120/240V AC |
| Voltage Rating | 120/240V AC |
| Width | 14 1/4" , 14.3" |
| Wire Size | 4 AWG to 250 kcmil |
Shipping Info:
| Ship weight (kg) | 17.78 |
| Ship height (cm) | 109.63 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 36.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Phase | Amps | Max. No. Of Tandem Breakers | Voltage | Short Circuit Amps Rating | Location | Enclosure Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOC30UFWG | 31.06" | - | - | - | - | - | - | - | €188.37 | |
 |
QOC32UF | 27 6/25" | - | - | - | - | - | - | - | €63.95 | |
 |
QO112M100PC | 14.9" | 1 | 100A | 12 | 120/240V AC | 22 kA | Indoor | 1 | €348.18 | |
 |
QO112M100P | 14.9" | 1 | 100A | 12 | 120/240V AC | 22 kA | Indoor | 1 | €380.52 | |
|
QO116M100P | 17.9" | 1 | 100A | 8 | 120/240V AC | 22 kA | Indoor | 1 | €364.17 | |
|
QO116M100PC | 17.94" | 1 | 100A | 8 | 120/240V AC | 22 kA | Indoor | 1 | - | RFQ
|
 |
QO120M100P | 17.9" | 1 | 100A | 4 | 120/240V AC | 22 kA | Indoor | 1 | €352.13 |
