SQUARE D
See our 856 reviews on

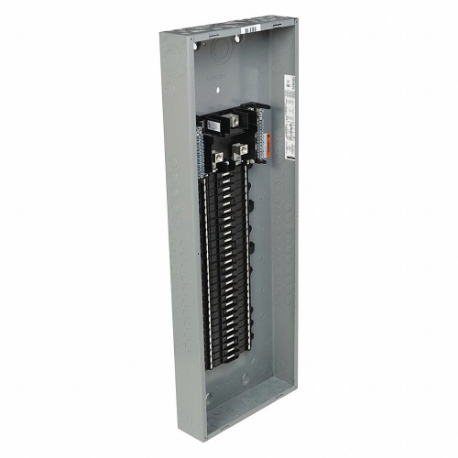

SQUARE D QO154L225PG Load Center, 225 A, 120/240 Vac, 54 Spaces, 65 Ka, 0 Max. No. Of Tandem Breakers | CU4FRW 30YE86

SQUARE D QO154L225PG Load Center, 225 A, 120/240 Vac, 54 Spaces, 65 Ka, 0 Max. No. Of Tandem Breakers

Item: CU4FRWModel: QO154L225PGCross Ref: 30YE86
Check Availability
In Stock

Get it by Wednesday, Apr 1

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€843.79
5.00% off
€801.59 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Load Center
Ambient Air Temp. For Operation 23°F, 104°F
Amps 225A
Amps Rating 225A
Box No. 12
Bus Material Tin Plated Copper
Busbar Material Copper
Busbar Material Finish Tin Plated
Circuit Breaker Type QO
Color Gray
Cover Type Order Separately
Depth 3 3/4"
Electrical Connection Lugs
Enclosure Material Steel , Welded Sheet Steel
Enclosure Nema Rating 1
Enclosure Rating NEMA 1 Indoor Enclosure
Feed Location Bottom/Top
Ground Bar Grounding Bar Included (Not Installed)
Height 39.38" , 39.4"
Included Enclosure Cover Order Separately
Location Indoor
Main Circuit Breaker Or Main Lug Convertible, Main Lug
Max. No. Of Single Pole Circuits 64
Max. No. Of Tandem Breakers 0 , 10
Max. Operating Temp. 104°F
Max. Short Circuit Amps Rating 65 kA
Min. Operating Temp. 23°F
No. Of Spaces 54
Number Of Phases 1
Number Of Spaces 54
Phase 1
Pon Convertible Mains (lugs) PoN Convertible Mains (Lugs)
Recommended Flush Cover Mfr. No. QOC54UF
Recommended Ground Bar Kit Included
Recommended Surface Cover Mfr. No. QOC54US
Returnability Yes
Short Circuit Amps Rating 65 kA
Special Features Mercury Free
Standards Rohs Compliant, Ul Listed
Surface Finish Baked Enamel Gray
Tightening Torque Main Lugs 250 lbs.-in., 4 AWG to 250 kcmil, Aluminium, Copper, Cover 20 lbs.-in.
Voltage 120/240V AC
Width 14 1/4" , 14.3"
Wire Size 6 AWG to 300 kcmil

Shipping Info:

Ship weight (kg) 9.86
Ship height (cm)100.03
Ship length (cm)9.53
Ship width (cm)36.2
Country of OriginUS

Product Variants

ProductModelHeightPhaseAmpsMax. No. Of Tandem BreakersVoltageShort Circuit Amps RatingLocationEnclosure Nema RatingPrice
SQUARE D QOC30UFWG Load Center | CU4FFQ 48R721 QOC30UFWG31.06"-------€188.37
SQUARE D QOC32UF Load Center | CU4FQB 48R742 QOC32UF27 6/25"-------€63.95
SQUARE D QO112M100PC Load Center, 100 A, 120/240 Vac, 12 Spaces, 22 Ka, 12 Max. No. Of Tandem Breakers | CU4FQE 60UM10 QO112M100PC14.9"1100A12120/240V AC22 kAIndoor1€348.18
SQUARE D QO112M100P Load Center, 100 A, 120/240 Vac, 12 Spaces, 22 Ka, 12 Max. No. Of Tandem Breakers, 1 | CU4FQF 60UM09 QO112M100P14.9"1100A12120/240V AC22 kAIndoor1€380.52
SQUARE D QO116M100P Load Center, 100 A, 120/240 Vac, 16 Spaces, 22 Ka, 8 Max. No. Of Tandem Breakers | CU4FQG 60UM12 QO116M100P17.9"1100A8120/240V AC22 kAIndoor1€364.17
SQUARE D QO116M100PC Load Center, 100 A, 120/240 Vac, 16 Spaces, 22 Ka, 8 Max. No. Of Tandem Breakers, 1 | CU4FQH 60UM13 QO116M100PC17.94"1100A8120/240V AC22 kAIndoor1-
RFQ
SQUARE D QO120M100P Load Center, 100 A, 120/240 Vac, 20 Spaces, 22 Ka, 4 Max. No. Of Tandem Breakers | CU4FQJ 60UM16 QO120M100P17.9"1100A4120/240V AC22 kAIndoor1€352.13
