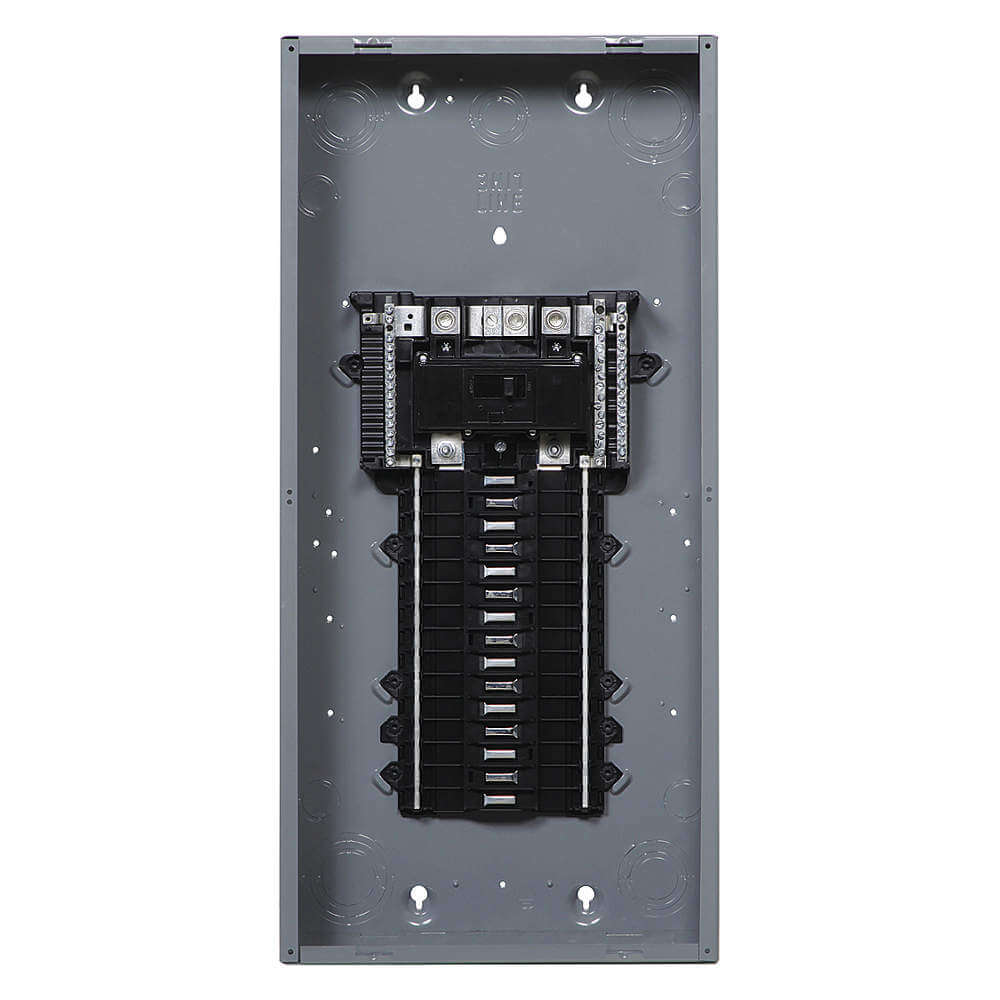

SQUARE D QO130M200P Load Center CB 200A 120/240VAC 1-Phase
Get it by Monday, Apr 6
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€656.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps | 200A |
| Amps Rating | 200A |
| Box No. | 9 |
| Bus Material | Tin Plated Copper |
| Busbar Material | Copper |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | QO |
| Color | Gray |
| Cover Type | Order Separately |
| Depth | 3 3/4" |
| Electrical Connection | Lugs |
| Enclosure Material | Steel , Welded Sheet Steel |
| Enclosure Nema Rating | 1 |
| Enclosure Rating | NEMA 1 Indoor Enclosure |
| Enclosure Surface Finish | Enamel |
| Feed Location | Bottom/Top |
| For Use With | Square D QO Circuit Breakers |
| Ground Bar | Grounding Bar (Ordered Separately) |
| Height | 29.8" , 29.84" |
| Included Enclosure Cover | Order Separately |
| Location | Indoor |
| Main Circuit Breaker Or Main Lug | Convertible, Main Circuit Breaker |
| Max. No. Of Single Pole Circuits | 40 |
| Max. No. Of Tandem Breakers | 0 , 10 |
| Max. Operating Temp. | 104°F |
| Max. Short Circuit Amps Rating | 22 kA |
| Min. Operating Temp. | 23°F |
| No. Of Spaces | 30 |
| Number Of Phases | 1 |
| Number Of Spaces | 30 |
| Phase | 1 |
| Pon Convertible Mains (lugs) | PoN Convertible Mains (Breaker) |
| Recommended Flush Cover | 1D435 |
| Recommended Ground Bar Kit | Mfr. No. Pk18Gta |
| Recommended Surface Cover | 1D436 |
| Returnability | Yes |
| Short Circuit Amps Rating | 22 kA |
| Short Circuit Current Rating | 22kA |
| Special Features | Mercury Free |
| Standards | Rohs Compliant, Ul Listed |
| Surface Finish | Baked Enamel Gray |
| Tightening Torque | 20 lbs.-in. |
| Voltage | 120/240V AC |
| Voltage Rating | 120/240V AC |
| Width | 14.3" |
| Wire Size | 4 AWG to 250 kcmil |
Shipping Info:
| Ship weight (kg) | 8.42 |
| Ship height (cm) | 75.79 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 36.2 |
| Country of Origin | US |
Product Details:
Square D QO130M200P load center takes electricity from the utility source and distributes it throughout a facility for reliable electrical distribution. It is used at the service entrance in commercial and industrial buildings.
Features:
- Square D QO130M200P load center distributes the main supply of power and has a main breaker to protect the circuit from overcurrents.
- This single-phase load center features NEMA compliant steel enclosure with an enamel finish for protection against corrosion and electromagnetic radiations.
- It can be converted to a main lug load center to work as a remote panel.
- This QO type load center has a neutral bar on either side of the bus bars for easy plug-in of compatible AFCI or GFCI breakers onto the bus and neutral bars.
Compatible Accessories:
/p/square-d/qo-gfi-circuit-breaker: These compact design circuit breakers protect sensitive electronic equipment from faulty currents.Standards and Approvals:
- RoHS
- UL
Frequently Asked Questions:
Q. Can this load center withstand extreme temperatures?
A. Square D QO130M200P load center has an operating temperature range of 23 to 104 degrees Fahrenheit.
Q. What material is used in the manufacturing of bus bars?
A. Square D load center bus bars feature tin-plated copper construction.
Q. What is the short circuit current rating of this load center?
A. Square D load center has a short circuit current rating of 22kA.
Product Variants
| Product | Model | Height | Phase | Amps | Voltage | Enclosure Material | Max. No. Of Tandem Breakers | Short Circuit Amps Rating | Bus Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO24L70F | 9.3" | 1 | 70A | 120/240V AC | Steel | 2 | 10 kA | Tin Plated Aluminum | €124.58 | |
 |
QO24L70S | 9.3" | 1 | 70A | 120/240V AC | Steel | 2 | 10 kA | Tin Plated Aluminum | €110.41 | |
 |
QO312L125G | 17.9" | 3 | 125A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Copper | €472.65 | |
|
QO318L200G | 29.84" | 3 | 200A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Copper | €685.49 | |
|
QO320L125G | 20.9" | 3 | 125A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Copper | €690.18 | |
|
QO330L200G | 30" | 3 | 200A | 120/208V/120/240V AC | Steel | - | 65 kA | - | €701.67 | |
|
QO403L60NF | 13.1" | 3 | 60A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Aluminum | €213.16 |
