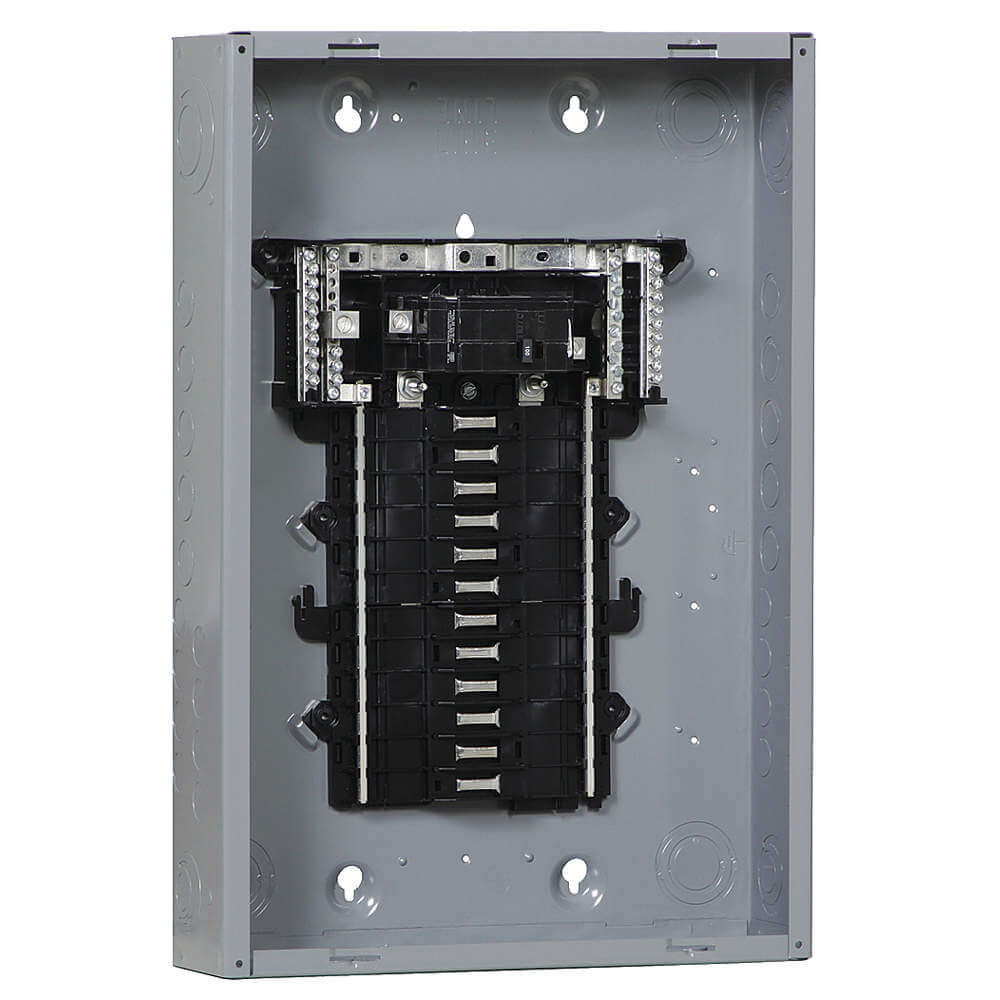

SQUARE D QO124M100P Load Center CB 100A 120/240VAC 1-Phase
Get it by Wednesday, Apr 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€495.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps | 100A |
| Amps Rating | 100A |
| Box No. | 7 |
| Bus Material | Tin Plated Copper |
| Busbar Material | Copper |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | QO |
| Color | Gray |
| Cover Type | Order Separately |
| Depth | 4 1/4" |
| Electrical Connection | Lugs |
| Enclosure Material | Steel , Welded Sheet Steel |
| Enclosure Nema Rating | 1 |
| Enclosure Rating | NEMA 1 Indoor Enclosure |
| Enclosure Surface Finish | Enamel |
| Feed Location | Bottom/Top |
| For Use With | Square D QO Circuit Breakers |
| Ground Bar | Grounding Bar (Ordered Separately) |
| Height | 20.9" , 20.91" |
| Included Enclosure Cover | Order Separately |
| Location | Indoor |
| Main Circuit Breaker Or Main Lug | Convertible, Main Circuit Breaker |
| Max. No. Of Single Pole Circuits | 34 |
| Max. No. Of Tandem Breakers | 10 |
| Max. Operating Temp. | 104°F |
| Max. Short Circuit Amps Rating | 22 kA |
| Min. Operating Temp. | 23°F |
| No. Of Spaces | 24 |
| Number Of Phases | 1 |
| Number Of Spaces | 24 |
| Phase | 1 |
| Pon Convertible Mains (lugs) | PoN Convertible Mains (Breaker) |
| Product Datasheet | square-d-qo124m100p.pdf |
| Recommended Flush Cover | 1D433 |
| Recommended Ground Bar Kit | Mfr. No. Pk15Gta |
| Recommended Surface Cover | 1D434 |
| Returnability | Yes |
| Short Circuit Amps Rating | 22 kA |
| Short Circuit Current Rating | 22kA |
| Special Features | Mercury Free |
| Standards | Rohs Compliant, Ul Listed |
| Surface Finish | Baked Enamel Gray |
| Tightening Torque | 20 lbs.-in. |
| Voltage | 120/240V AC |
| Voltage Rating | 120/240V AC |
| Width | 14 1/4" , 14.3" |
| Wire Size | 6 AWG to 2/0 AWG |
Shipping Info:
| Ship weight (kg) | 5.92 |
| Ship height (cm) | 11.71 |
| Ship length (cm) | 56.11 |
| Ship width (cm) | 37.11 |
| Country of Origin | US |
Product Details:
- Enclosure NEMA Rating : 1
- Main Circuit Breaker or Main Lug : Main Circuit Breaker, Convertible
- Max. No. of Tandem Breakers : 0
- Recommended Surface Cover : 1D434
- Bus Material : Shielded Tin Plated Copper
- Recommended Ground Bar Kit : Mfr. No. PK15GTA
- Recommended Flush Cover : 1D433
- Special Features: Plug-On Neutral, Split Branch Neutral Terminal, Top Or Bottom Feed
Documentation:
Product Variants
| Product | Model | Height | Phase | Amps | Voltage | Enclosure Material | Max. No. Of Tandem Breakers | Short Circuit Amps Rating | Bus Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO24L70F | 9.3" | 1 | 70A | 120/240V AC | Steel | 2 | 10 kA | Tin Plated Aluminum | €124.58 | |
 |
QO24L70S | 9.3" | 1 | 70A | 120/240V AC | Steel | 2 | 10 kA | Tin Plated Aluminum | €110.41 | |
 |
QO312L125G | 17.9" | 3 | 125A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Copper | €472.65 | |
|
QO318L200G | 29.84" | 3 | 200A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Copper | €685.49 | |
|
QO320L125G | 20.9" | 3 | 125A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Copper | €690.18 | |
|
QO330L200G | 30" | 3 | 200A | 120/208V/120/240V AC | Steel | - | 65 kA | - | €701.67 | |
|
QO403L60NF | 13.1" | 3 | 60A | 208/120/240V AC | Steel | - | 65 kA | Tin Plated Aluminum | €213.16 |
