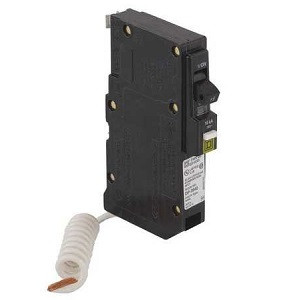

SQUARE D QO120VHPDF Miniature Circuit Breaker, 1 Phase, Arc-Fault Protection
Item: CE6HQKModel: QO120VHPDF
7 In Stock
Ships within 2 days via
5.00% off
€140.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ambient Rating | 104°F |
| Amps | 20A |
| Amps Rating | 20A |
| Circuit Breaker Type | Combination Arc-Fault And Ground Fault |
| Connections Terminals | Plug On Neutral |
| Depth | 2.9" |
| Electrical Connection | Pressure Plate |
| Frame Type | QO |
| Height | 4 4/5" |
| Interrupt Rating | 22 kA @ 120V AC |
| Mounting Type | Plug In |
| No. Of Panel Spaces | 1 |
| No. Of Poles | 1 |
| Number Of Poles | 1 |
| Ratings | HACR Rated |
| Returnability | Yes |
| Tightening Torque | 40.7 lbf.-in. |
| Voltage Rating | 120V AC |
| Voltage Type | AC |
| Width | 0.7" |
| Wire Size | 14 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 12.04 |
| Ship length (cm) | 7.21 |
| Ship width (cm) | 1.88 |
| Country of Origin | MX |
Product Details:
- Square D QO120VHPDF circuit breaker to detect overloads, short circuits and arc faults
- Thermal-magnetic trip element calibrated at an ambient temperature of 40 deg Celsius to provide long-time and instantaneous current limiting functions
- Visi-Trip indicator to offer visual indication of the tripping status
- Plug-in mount design with pressure plate terminals to offer single or two wire terminations, accommodates aluminium and copper wires of sizes ranging from 14 to 8 AWG
Product Variants
| Product | Model | Amps | Number Of Poles | Max. Air Rating | Ac Voltage Rating | Phase | Depth | Dc Voltage | Terminal Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO115 | 15A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €16.63 | |
 |
QO115HM | 15A | 1 | 10 kA At 120V AC | - | Single | 2.91" | 48V DC | Screw Clamp | €33.73 | |
 |
QO120 | 20A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €16.63 | |
 |
QO120HM | 20A | 1 | 10 kA At 120/240V AC | 120V AC | Single | 2.91" | Not Rated | Screw Clamp | €33.73 | |
 |
QO120VH | 20A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €43.81 | |
 |
QO130 | 30A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €17.18 | |
|
QO130VH | 30A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | Not Rated | Screw Clamp | €43.81 |
