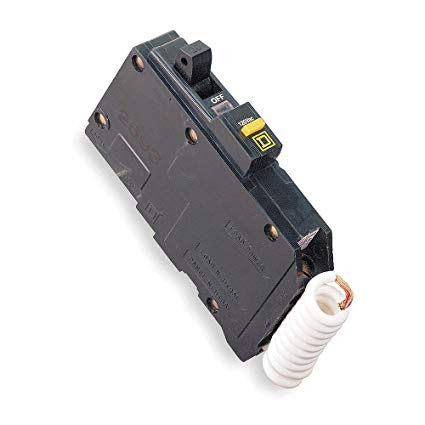

SQUARE D QO120EPD-2100 Miniature Circuit Breaker, Plug-in Mount, 120VAC, 1 Pole
Item: CE6HQNModel: QO120EPD-2100
7 In Stock
Ships within 2 days via
5.00% off
€410.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ambient Rating | 104°F |
| Amps | 20A |
| Amps Rating | 20A |
| Circuit Breaker Type | Ground Fault Protecting Class B 30 mA |
| Depth | 2.9" |
| Electrical Connection | Pressure Plate |
| Frame Type | QO |
| Height | 4.1" |
| Interrupt Rating | 10 kA @ 120V AC |
| Mounting Type | Plug In |
| No. Of Panel Spaces | 2 |
| No. Of Poles | 1 |
| Number Of Poles | 1 |
| Options | Alarm Switch 120V AC 1A |
| Ratings | Not Rated |
| Returnability | No |
| Tightening Torque | 35.4 lbf.in. @ 0.006 sq. in. to 0.03 sq. in. @ 12 AWG to 4 AWG |
| Voltage Rating | 120V AC |
| Voltage Type | AC |
| Width | 1.5" |
| Wire Size | 14 AWG to 8 AWG, 12 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 13.46 |
| Ship width (cm) | 10.41 |
| Country of Origin | US |
Product Details:
- Square D QO120EPD-2100 QO Series circuit breaker designed to protect sensitive circuits from excessive current flows causing overloads or short circuits
- Visi-Trip indicator, along with a 1A alarm switch to offer visual indication when the circuit breaker has tripped; the breaker can be reset by pushing the handle to OFF and then to ON
- Thermal-magnetic trip element calibrated for 40 deg C ambient temperature to provide long-time and instantaneous current limiting functions
- Class B ground fault protection for complete protection against accidental shocks, thereby eliminating electrical hazards
Product Variants
| Product | Model | Amps | Number Of Poles | Max. Air Rating | Ac Voltage Rating | Phase | Depth | Dc Voltage | Terminal Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO115 | 15A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €16.63 | |
 |
QO115HM | 15A | 1 | 10 kA At 120V AC | - | Single | 2.91" | 48V DC | Screw Clamp | €33.73 | |
 |
QO120 | 20A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €16.63 | |
 |
QO120HM | 20A | 1 | 10 kA At 120/240V AC | 120V AC | Single | 2.91" | Not Rated | Screw Clamp | €33.73 | |
 |
QO120VH | 20A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €43.81 | |
 |
QO130 | 30A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €17.18 | |
|
QO130VH | 30A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | Not Rated | Screw Clamp | €43.81 |
