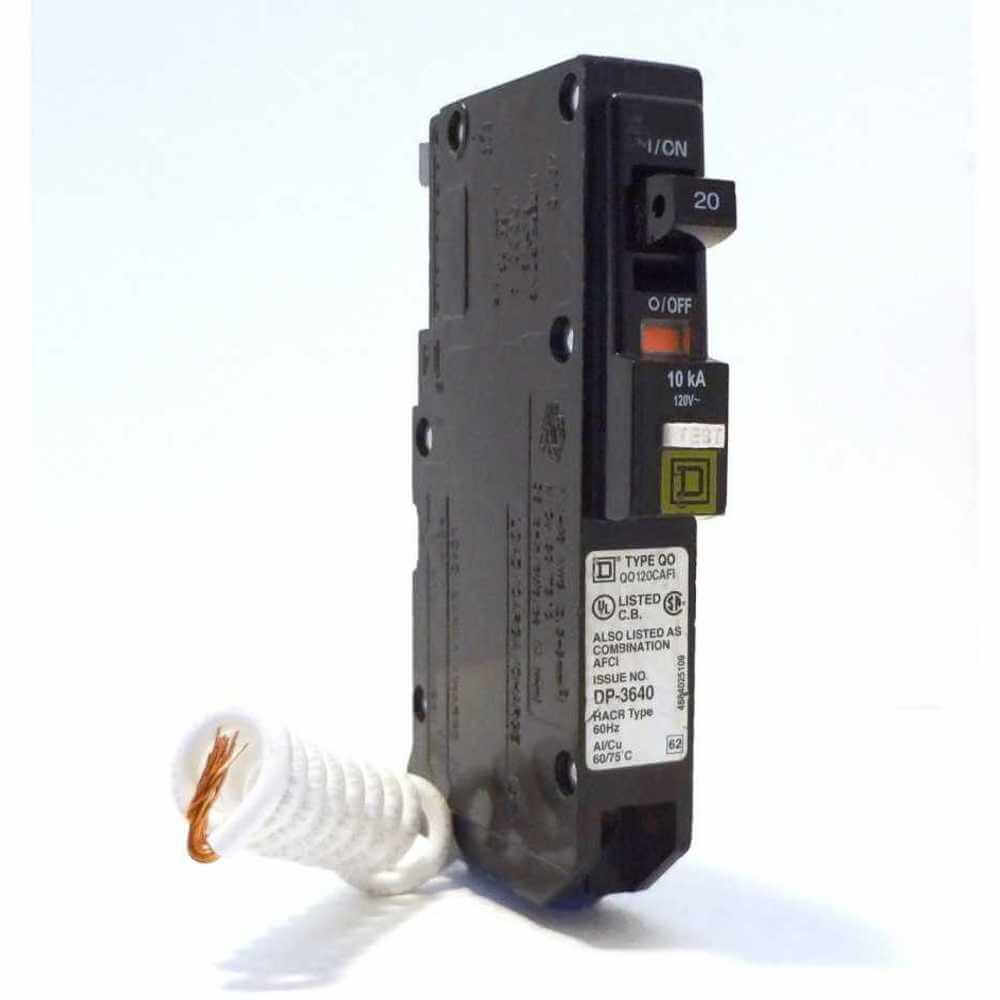

SQUARE D QO120CAFI Plug In Circuit Breaker 20a 1 Pole 10ka 120v
Item: AF6FXMModel: QO120CAFICross Ref: 12R455
7 In Stock
Ships within 2 days via
10.00% off
€347.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 20A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Combination Arc Fault Circuit Interrupter |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 2.91" |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A, QO |
| Length | 4 3/4" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 8 AWG |
| Minimum Wire Size | 12 AWG, 14 AWG |
| Number Of Poles | 1 |
| Phase | Single |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Screw Clamp |
| Width | 3/4" |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 10.16 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Ac Voltage Rating | Max. Air Rating | Depth | Terminal Connection | Terminal Connection Type | Circuit Breaker Actuator | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

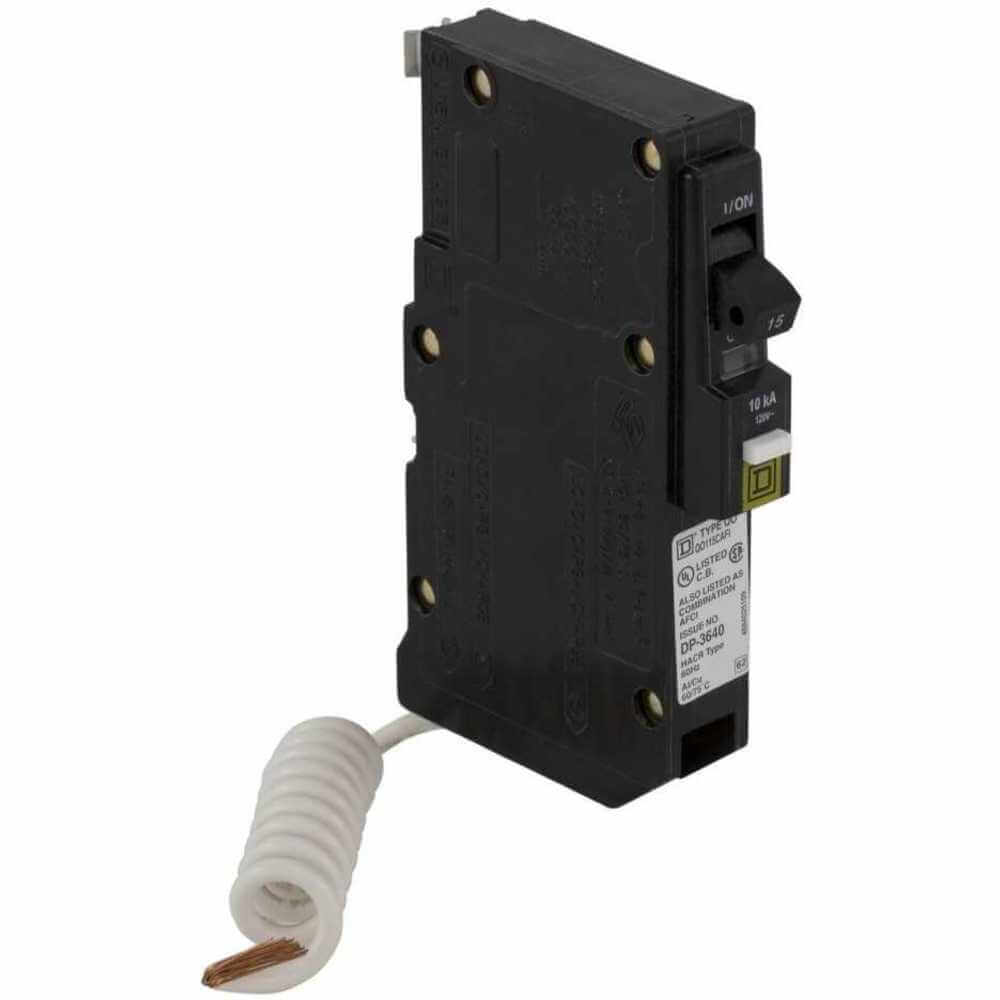

QO115CAFI | 15A | 120/240V AC | 10 kA At 120/240V AC | 2.91" | Screw Clamp | Screw Clamp | Toggle | Single | €373.26 | |
 |

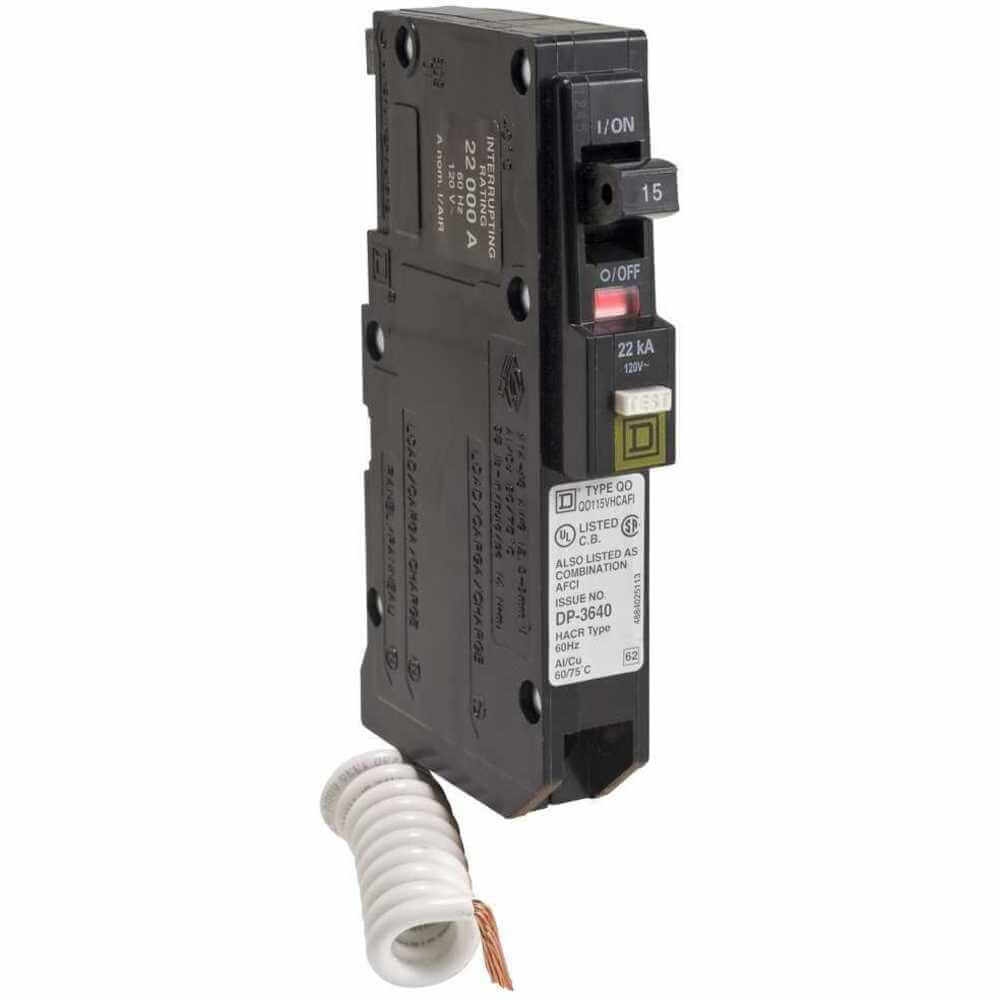

QO115VHCAFI | 15A | 120V AC | 22 kA At 120/240V AC | 2.91" | Screw Clamp | Screw Clamp | Toggle | Single | €681.55 | |
|
QO120VHCAFI | 20A | 120/240V AC | 22 kA At 120/240V AC | 2.91" | Pressure Plate | Screw Clamp | Paddle | Single | €692.10 | |
 |

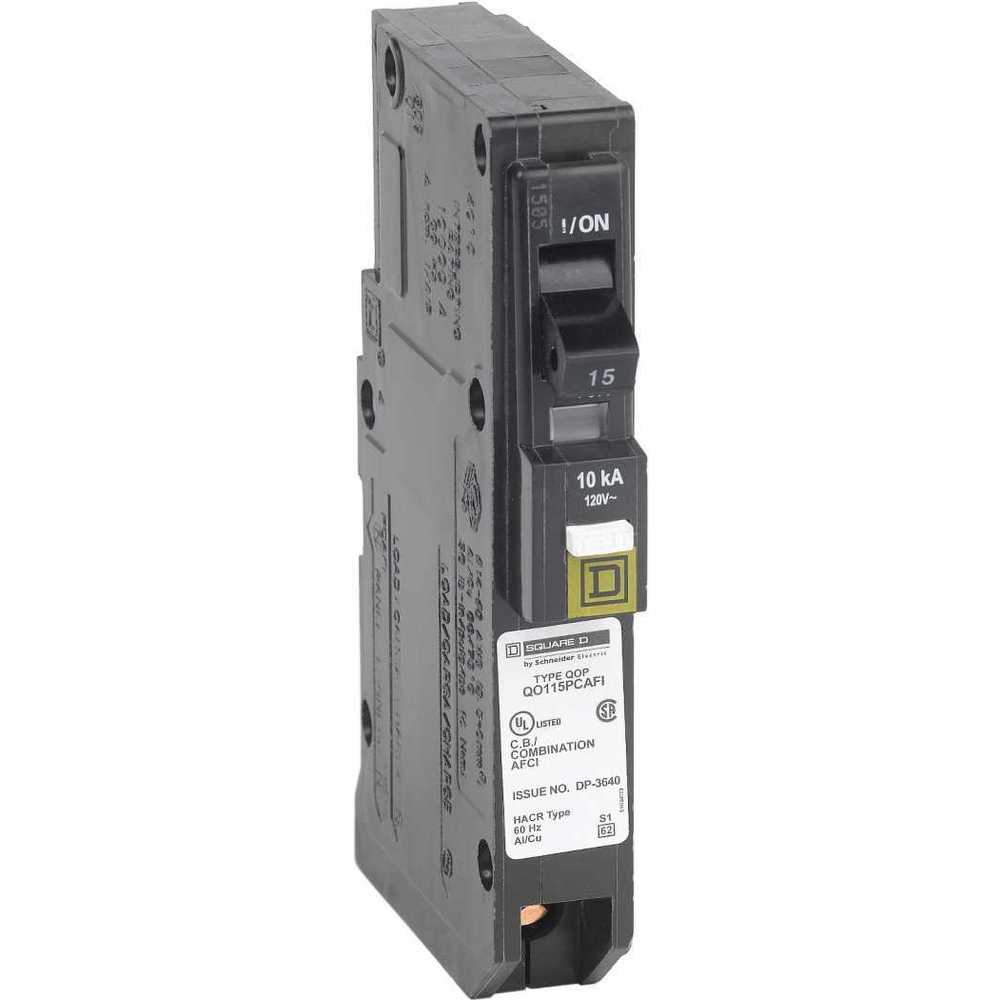

QO115PCAFI | 15A | 120V AC | 10 kA At 120V AC | 2.91" | Pressure Plate | Plug In | Toggle | Single | €78.73 | |
 |

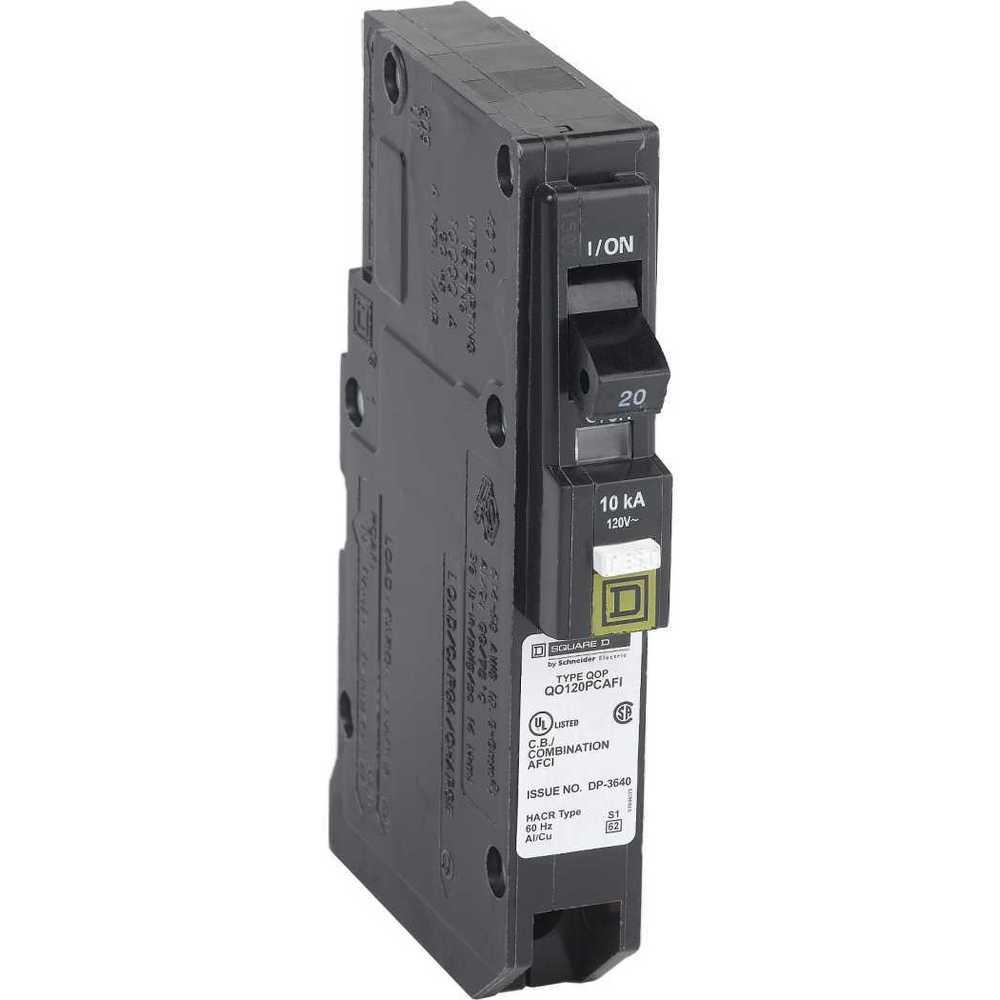

QO120PCAFI | 20A | 120V AC | 10 kA At 120V AC | 2.91" | Pressure Plate | Plug In | Paddle | Single | €80.25 | |
 |

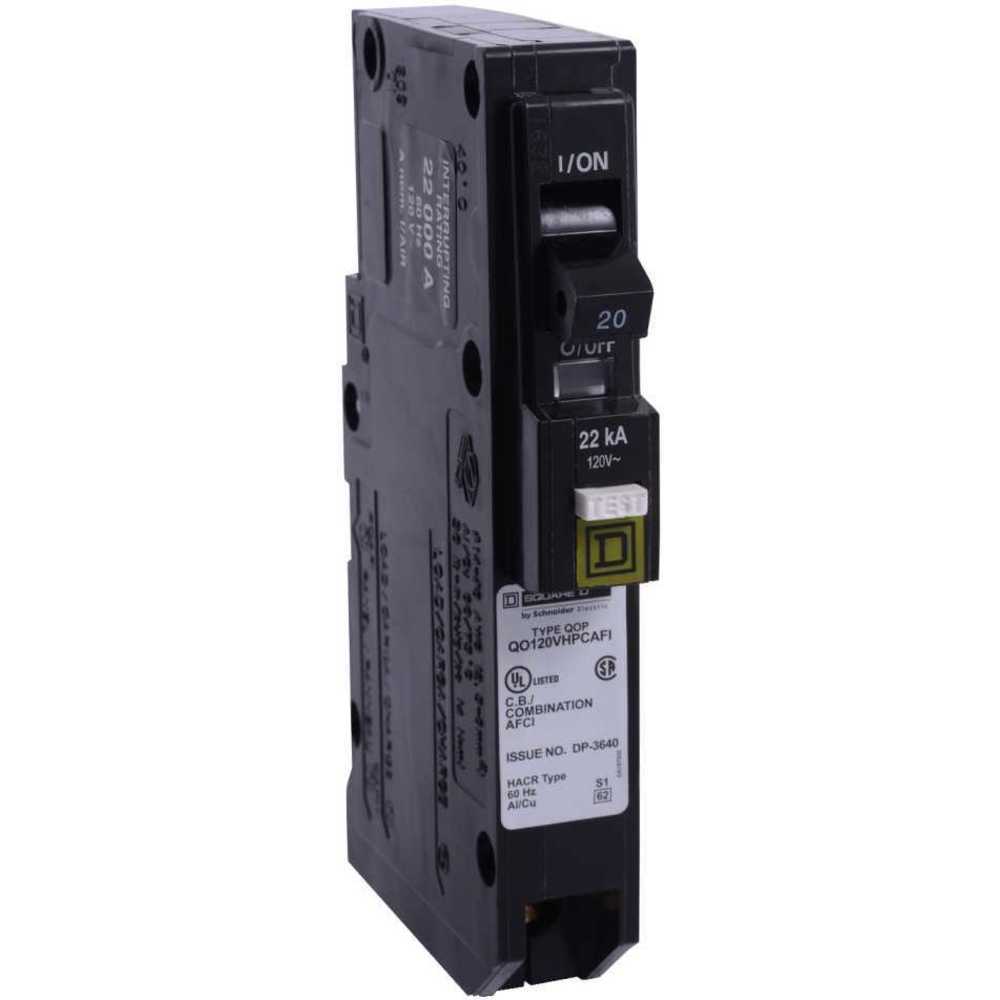

QO120VHPCAFI | 20A | 120V AC | 22 kA At 120V AC | 2.91" | Pressure Plate | Plug In | Paddle | Single | €726.63 |
