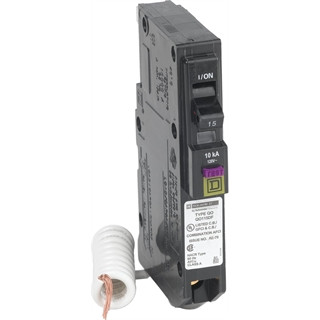

SQUARE D QO115DF Miniature Circuit Breaker, Dual Function, Pigtail, 15A
Item: CE6HPTModel: QO115DFCross Ref: 43WH66
7 In Stock
Ships within 2 days via
5.00% off
€133.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ambient Rating | 104°F |
| Amps | 15A |
| Amps Rating | 15A |
| Circuit Breaker Type | Combination Arc-Fault And Ground Fault |
| Connections Terminals | Pigtail Neutral |
| Depth | 2.9" |
| Electrical Connection | Pressure Plate |
| Frame Type | QO |
| Height | 4 4/5" |
| Interrupt Rating | 10 kA @ 120V AC |
| Mounting Type | Plug In |
| No. Of Panel Spaces | 1 |
| No. Of Poles | 1 |
| Number Of Poles | 1 |
| Ratings | HACR Rated |
| Returnability | Yes |
| Tightening Torque | 35.4 lbf.-in. |
| Voltage Rating | 120V AC |
| Voltage Type | AC |
| Width | 0.7" |
| Wire Size | 14 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.39 |
| Ship width (cm) | 3.81 |
| Country of Origin | MX |
Product Details:
- Square D QO115DF circuit breaker to provide overcurrent protection and switching in AC & DC systems
- Features plug in mounting which ensures easy connection to panelboards & switchboards
- Features reliable pressure plate terminal and VISI trip indicator for convenience
- Accommodates copper & aluminium wire sizes ranging from 14 to 8 AWG
- UL listed and CSA certified
Product Variants
| Product | Model | Amps | Number Of Poles | Max. Air Rating | Ac Voltage Rating | Phase | Depth | Dc Voltage | Terminal Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QO115 | 15A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €16.63 | |
 |
QO115HM | 15A | 1 | 10 kA At 120V AC | - | Single | 2.91" | 48V DC | Screw Clamp | €33.73 | |
 |
QO120 | 20A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €16.63 | |
 |
QO120HM | 20A | 1 | 10 kA At 120/240V AC | 120V AC | Single | 2.91" | Not Rated | Screw Clamp | €33.73 | |
 |
QO120VH | 20A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €43.81 | |
 |
QO130 | 30A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | €17.18 | |
|
QO130VH | 30A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | Not Rated | Screw Clamp | €43.81 |
