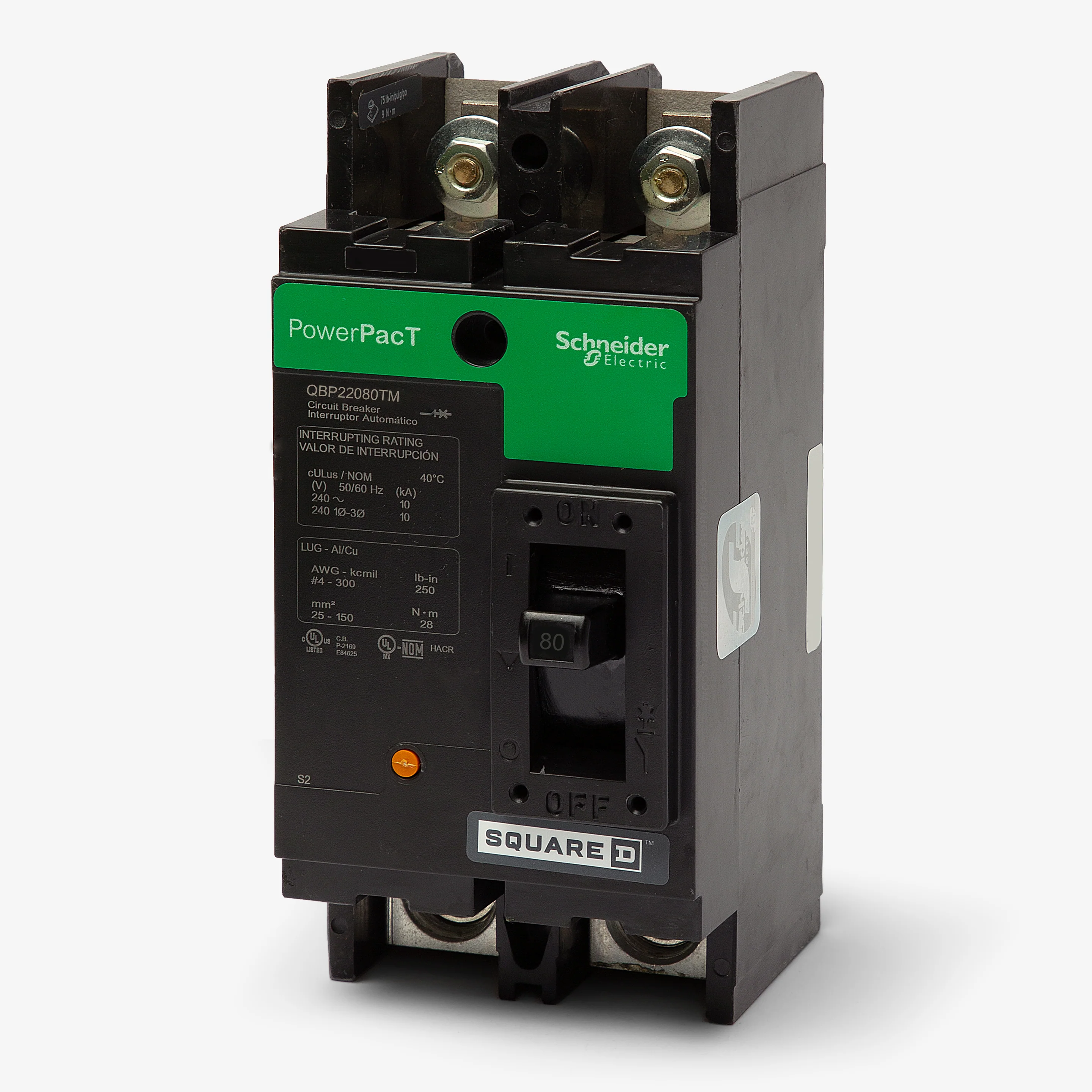

SQUARE D QBP22080TM Circuit Breaker, 80A, 240V, 2 Pole, QBP Frame Type
Item: EC2QGUModel: QBP22080TM
7 In Stock
Ships within 2 days via
5.00% off
€439.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | 40°C to 70°C |
| Breaking Capacity Code | B |
| Comm Code Enhanced | 32212 |
| Connection Type | Bolt-On |
| Continuous Amps | 80% |
| Control Type | Operating Handle |
| Depth | 3.93" |
| Discount Schedule | DE2A |
| For Use With | 225A MPL Lever Bypass Meter-Pak Metering Equipment |
| Frame Type | Qbp |
| Height | 6.47" |
| Interrupt Rating | 10 kAIC @ 240V |
| Magnetic Hold Amps | 1000A |
| Magnetic Tripping Amps | 1800A |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Mounting Type | Unit, Panel |
| No. Of Poles | 2P |
| Phase | 1 |
| Power Wire Stripping Length | 0.9" |
| Product Or Component Type | Circuit Breaker |
| Range | Powerpact |
| Series | QBP Series |
| Terminal Connection | Load Side Lug |
| Type | Thermal Magnetic, Branch |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 240V AC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.46 |
| Ship height (cm) | 14.12 |
| Ship length (cm) | 24.77 |
| Ship width (cm) | 14.76 |
| Country of Origin | MX |
