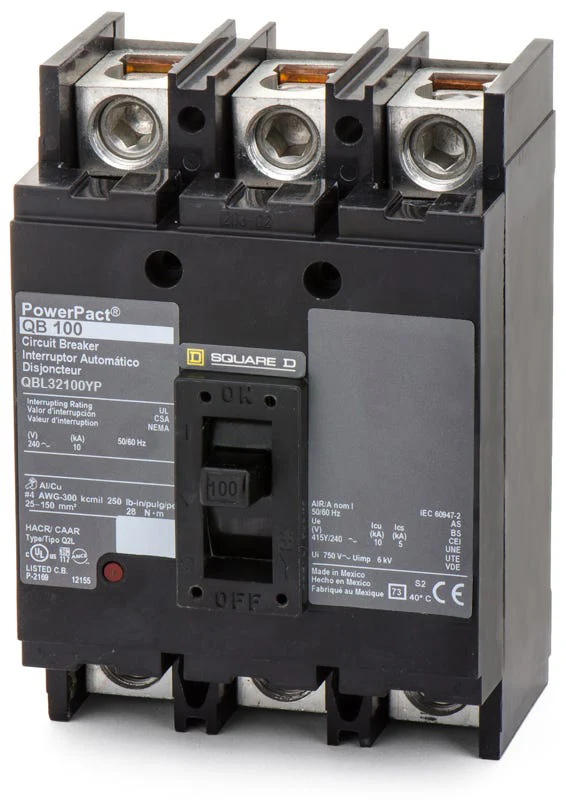

SQUARE D QBL32100YP Circuit Breaker, 100A, 240V, 3 Pole, QBL Frame Type
Item: EC2QGQModel: QBL32100YP
7 In Stock
Ships within 2 days via
5.00% off
€1,759.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Accessory/separate Part Type | Padlocking Device ON And OFF End |
| Ambient Air Temp. For Operation | 40°C to 70°C |
| Application | HACR Rated Applications, Distribution |
| Breaking Capacity Code | B |
| Circuit Breaker Mounting Style | Unit Mount Lug |
| Comm Code Enhanced | 32613 |
| Connection Type | Feed Thru |
| Continuous Amps | 80% |
| Depth | 3.93" |
| Discount Schedule | 0DE2 |
| Electrical Connection | Lugs, Load, Line |
| Frame Type | QBL |
| Height | 6.47" |
| Interrupt Rating | 10 kAIC @ 240V |
| Magnetic Hold Amps | 1200A |
| Max. Ac Voltage | 240V |
| Max. Air Rating | 10 kA |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Mounting Type | Unit |
| No. Of Poles | 3P |
| Power Wire Stripping Length | 0.9" |
| Product Or Component Type | Circuit Breaker |
| Range | Powerpact |
| Series | QBL Series |
| Temp. Rating | 104°F to 158°F |
| Terminal Connection | Line And Load Side Lug |
| Trip Type | Thermal Magnetic |
| Type | Molded Case, Thermal Magnetic |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Width | 4 1/2" |
Shipping Info:
| Ship weight (kg) | 2.17 |
| Ship height (cm) | 15.7 |
| Ship length (cm) | 24.61 |
| Ship width (cm) | 16 |
| Country of Origin | MX |
