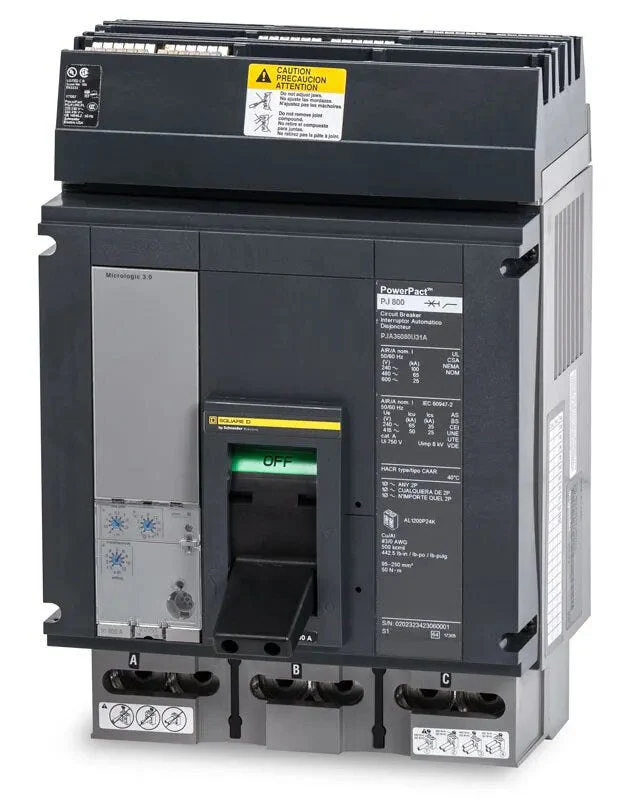

SQUARE D PJA36080U31A Circuit Breaker, 800A, 600V, 3 Pole, PJA Frame Type
Item: EC2QFYModel: PJA36080U31A
In Stock : 3 Units Get it by Friday, Aug 21
5.00% off
€13,067.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Breaking Capacity Code | J |
| Comm Code Enhanced | 32713 |
| Connection Type | I Line Style Plug In |
| Continuous Amps | 80% |
| Control Type | Toggle |
| Discount Schedule | 0DE2 |
| Family Series | Square D Miscellaneous |
| Frame Type | PJA |
| Height | 12.86" |
| Ics Rated Service Breaking Capacity | 35 kA 240V AC 50/60 Hz, 25 kA 380/415V AC 50/60 Hz |
| Interrupt Rating | 18 kA |
| Ip Degree Of Protection | Front Cover IP40 |
| Local Signalling | Overload 1 1 Led Amber) 1 Trip Indicator Green) |
| Mounting Height | 9" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| Mounting Type | I Line |
| No. Of Poles | 3P |
| No. Of Slots | 5 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 13123.36 ft. (4000m) With Derating |
| Phase Connection | ABC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Series | PJA Series |
| Terminal Connection | Lugs Load |
| Terminal Identifier | AL800M23K |
| Type | Molded Case, Standard |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 600V |
| Width | 8.27" |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 21.01 |
| Ship length (cm) | 32.66 |
| Ship width (cm) | 20.45 |
| Country of Origin | IT |
