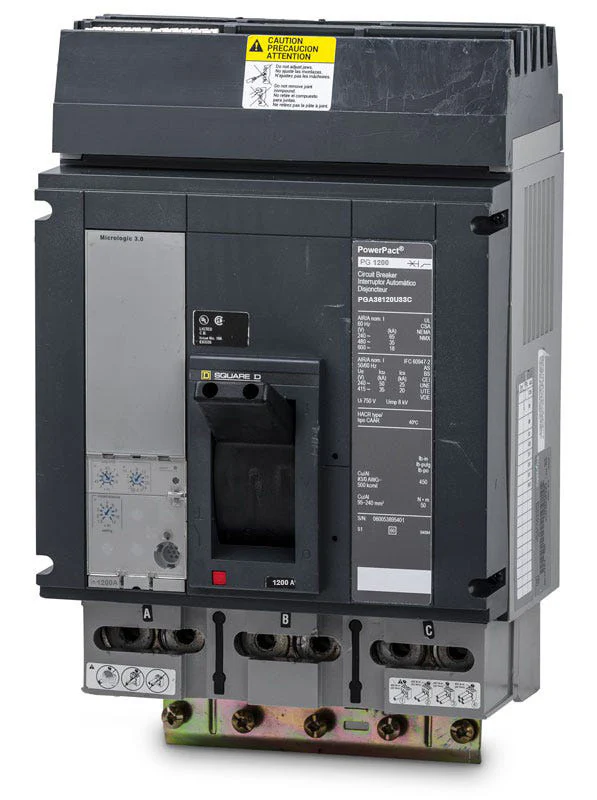

SQUARE D PGA36120U33C Circuit Breaker, 1200A, 600V, 3 Pole, PGA Frame Type
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Breaking Capacity Code | G |
| Connection Type | I Line Style Plug In |
| Continuous Amps | 80% |
| Depth | 8.05" |
| Discount Schedule | DE2 |
| Frame Type | PGA |
| Height | 16 4/25" |
| Ics Rated Service Breaking Capacity | 25 kA 240V AC 50/60 Hz, 20 kA 380/415V AC 50/60 Hz |
| Interrupt Rating | 35 kAIC @ 480V |
| Ip Degree Of Protection | Front Cover IP40 |
| Local Signalling | Overload 1 1 Led Amber) 1 Trip Indicator Green) |
| Mounting Height | 9" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| No. Of Poles | 3P |
| No. Of Slots | 5 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 13123.36 ft. (4000m) With Derating |
| Phase Connection | ABC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1 1/5" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Series | PGA Series |
| Terminal Connection | Line And Load Side Lug |
| Terminal Identifier | AL1200P25K |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 600V AC |
| Width | 8.27" |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 41 |
| Ship length (cm) | 20.4 |
| Ship width (cm) | 21.01 |
| Country of Origin | US |
