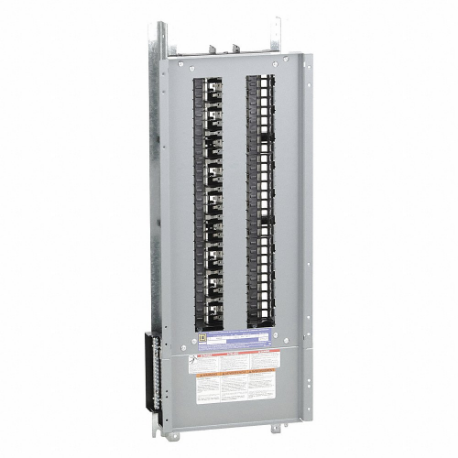

SQUARE D NQ454L2C Panel
Get it by Tuesday, Aug 18
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€2,761.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panel |
| Branch Circuit Breaker Type | QOB, QOB-VH, QHB |
| Busbar Material | Copper |
| Circuit Breaker Type | QOB, QOB VH, QHB |
| Connections Terminals | Lug Line 6 AWG to 350 kcmil Aluminium, Lug Neutral 6 AWG to 350 kcmil Aluminium , Lug Line AWG, 6-350 Kcmil Aluminium, Lug Neutral AWG, 6-350 Kcmil Aluminium |
| Discount Schedule | PE1A |
| Enclosure Nominal Depth | 5.75", 6.5" |
| Enclosure Nominal Height | 38" |
| Enclosure Nominal Width | 20" |
| Environmental Disclosure | ENVPEP1404010EN |
| Family Series | Square D Miscellaneous |
| Height | 33" , 838.2 mm |
| Iu Rated Interrupted Amps | 10/22/65A |
| Line Rated Amps | 225A |
| No. Of Phase | 3 |
| No. Of Spaces | 54 |
| Nominal Enclosure Width | 20" |
| Panelboard Type | Main Lugs |
| Product Or Component Type | Interiors |
| Rated Interrupted Amps | 10/22/65 kA |
| Reach Regulation | Free Of Substances Of Very High Concern Above The Threshold |
| Returnability | Yes |
| Series | NQ Series |
| Sustainable Offer Status | Green Premium Product |
| Tightening Torque | 40.005 lbf.in. to 50.007 lbf.in. @ 0.02 sq. in. to 0.10 sq. in. @ 6 AWG to 2/0 AWG, 100.01 lbf.in. @ 0.02 sq. in. to 0.10 sq. in. @ 6 AWG to 2/0 AWG, 274.99 lbf.in. @ 0.02 sq. in. to 0.3 sq. in. @ 6 AWG to 350 kcmil, 274.99 lbf.in. @ 0.02 sq. in. to 0.2 sq. in. @ 6 AWG to 250 kcmil AWG, 274.99 lbf.in. @ 0.2 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Voltage | 240V , 240V AC/48V DC |
| Width | 10.44" , 265.176 mm |
| Wiring Configuration | 4 Wire |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Height | Amps | Phase | Returnability | No. Of Spaces | Voltage | No. Of Phase | Busbar Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HCR86TS | 86" | - | - | Yes | - | - | - | - | €2,109.20 | |
 |
NQ484L4C | 63" | - | - | Yes | 84 | 240V AC/48V DC | 3 | Copper | €6,562.12 | |
 |
NQ472L2C | 39" | - | - | Yes | 72 | 240V AC/48V DC | 3 | Copper | €4,180.25 | |
 |
HCP54868SU | 65.4" | 800A | - | Yes | - | - | - | - | €7,408.18 | |
 |
HCP235912N | 39" | 1200A | - | Yes | - | - | - | - | €10,081.05 | |
 |
NQFTL4H | - | 400A | - | Yes | 54 | - | - | - | €902.75 | |
 |
NQFTL2L | - | 225A | - | Yes | 42 | - | - | - | €740.57 |
