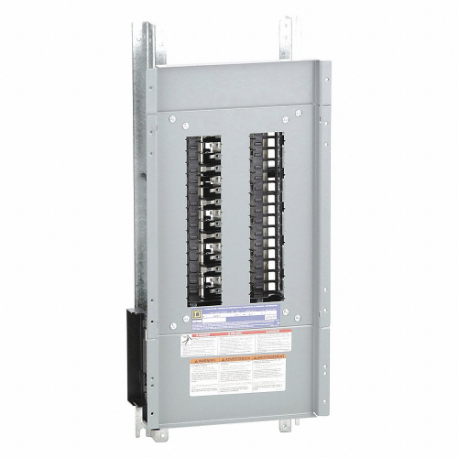

SQUARE D NQ430L2C Panelboard, 30 Spaces, 225 A, Copper, 27 Inch Height, 10.4375 Inch Width
Get it by Wednesday, Apr 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,657.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panelboard |
| Amps | 225A |
| Branch Circuit Breaker Type | QOB, QOB-VH, QHB |
| Bus Material | Copper |
| Busbar Material | Copper |
| Circuit Breaker Series | Series QHB, Series QOB, Series QOB-VH |
| Circuit Breaker Type | Plug In Miniature |
| Connections Terminals | Lug Line 6 AWG to 350 kcmil Aluminium, Lug Neutral 6 AWG to 350 kcmil Aluminium |
| Depth | 5 3/4" |
| Enclosure Nominal Depth | 5.75", 6.5" |
| Enclosure Nominal Height | 32" |
| Enclosure Nominal Width | 20" |
| For Use With | NQ Circuit Breakers |
| Height | 27" |
| Line Rated Amps | 225A |
| Main Circuit Breaker Adapter Kit | 4HHA3, 4HHA4, Mfr. No. NQMB2KI |
| Main Circuit Breaker Or Main Lug | Convertible, Main Lug |
| No. Of Spaces | 30 |
| Number Of Phases | 3 |
| Number Of Spaces | 30 |
| Panelboard Type | Main Lugs |
| Phase | 3 |
| Rated Interrupted Amps | 10/22/65 kA |
| Recommended Enclosure | 1D691 For Main Lug, 1D698 For Main Breaker |
| Recommended Flush Cover | 4HGZ9 For Main Lug, 4HHA1 For Main Breaker |
| Recommended Ground Bar Kit | 5B716 |
| Recommended Surface Cover | 3TX80 For Main Lug, 3TX84 For Main Breaker |
| Returnability | Yes |
| Short Circuit Amps Rating | 100000 RMS Symmetrical |
| Short Circuit Current Rating | 100000 Rms Symmetrical |
| Tightening Torque | 40.005-50.007 lbf.in (4.52-5.65 N.m) 0.02-0.10 sq. in., (13.30-67.43 sq. mm) (AWG 6 AWG to 2/0), 100 lbf.in (11.3 N.m) 0.02-0.10 sq. in., (13.30-67.43 sq. mm) (AWG 6 AWG to 2/0), 274.99 lbf.in (31.07 N.m) 0.02-0.3 sq. in., (13.30-177.3 sq. mm) (AWG 6 AWG to 350 kcmil), 274.99 lbf.in (31.07 N.m) 0.02-0.2 sq. in., (13.30-126.7 sq. mm) (AWG 6 AWG to 250 kcmil), 274.99 lbf.in (31.07 N.m) 0.2-0.2 sq. in., (107.2-152 sq. mm) (AWG 4 AWG to 300 kcmil) |
| Voltage | 120/208-240V AC |
| Voltage Rating | 240V AC/48V DC |
| Width | 10 7/16" , 10.44" |
Shipping Info:
| Ship weight (kg) | 7.58 |
| Ship height (cm) | 68.58 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 26.51 |
| Country of Origin | MX |
