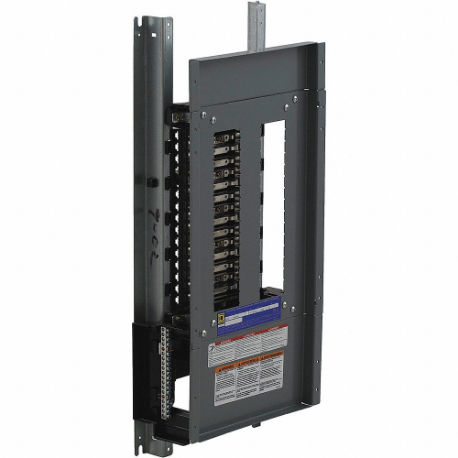

SQUARE D NQ430L1 Panelboard, 30 Spaces, 100 A, Aluminum, Qhb/Qob-Vh/Qob, 27 Inch Height
Get it by Monday, Aug 24
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,554.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panelboard |
| Amps | 100A |
| Branch Circuit Breaker Type | QOB, QOB-VH, QHB |
| Bus Material | Aluminum |
| Busbar Material | Aluminium |
| Circuit Breaker Series | Series QHB, Series QOB, Series QOB-VH |
| Circuit Breaker Type | Plug In Miniature |
| Connections Terminals | Lug Line 6 AWG to 2/0 AWG Aluminium, Lug Neutral 6 AWG to 2/0 AWG Aluminium |
| Depth | 5 3/4" |
| Enclosure Nominal Depth | 5.75", 6.5" |
| Enclosure Nominal Height | 32" |
| Enclosure Nominal Width | 20" |
| For Use With | NQ Circuit Breakers |
| Height | 27" |
| Line Rated Amps | 100A |
| Main Circuit Breaker Or Main Lug | Convertible, Main Lug |
| No. Of Phase | 3 |
| No. Of Spaces | 30 |
| Panelboard Type | Main Lugs |
| Phase | 3 |
| Rated Interrupted Amps | 10/22/65 kA |
| Recommended Enclosure | 1D691 For Main Lug, 1D698 For Main Breaker |
| Recommended Flush Cover | 4HGZ9 For Main Lug, 4HHA1 For Main Breaker |
| Recommended Ground Bar Kit | 5B716 |
| Recommended Surface Cover | 3TX80 For Main Lug, 3TX84 For Main Breaker |
| Returnability | Yes |
| Short Circuit Amps | 100000 RMS Symmetrical |
| Tightening Torque | 40.005 lbf.in. to 50.007 lbf.in. @ 0.02 sq. in. to 0.10 sq. in. @ 6 AWG to 2/0 AWG, 100.01 lbf.in. @ 0.02 sq. in. to 0.10 sq. in. @ 6 AWG to 2/0 AWG, 274.99 lbf.in. @ 0.02 sq. in. to 0.3 sq. in. @ 6 AWG to 350 kcmil, 274.99 lbf.in. @ 0.02 sq. in. to 0.2 sq. in. @ 6 AWG to 250 kcmil AWG, 274.99 lbf.in. @ 0.2 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Voltage | 120/208-240V AC , 240V AC/48V DC |
| Width | 10 7/16" , 10.44" |
Shipping Info:
| Ship weight (kg) | 6.86 |
| Ship height (cm) | 68.58 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 26.51 |
| Country of Origin | MX |
