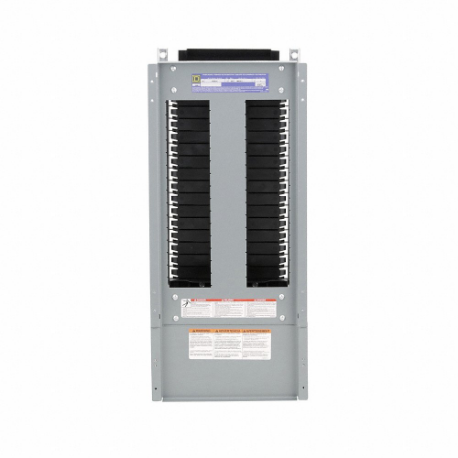

SQUARE D NF430L2C Panelboard, 30 Spaces, 250 A, Copper, 33 Inch Height, 10.4375 Inch Width
Get it by Tuesday, Mar 31
5.00% off
€3,026.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panelboard |
| Amps | 250A |
| Branch Circuit Breaker Type | EDB, EDG, EDJ |
| Bus Material | Copper |
| Busbar Material | Copper |
| Circuit Breaker Series | Series EDB, Series EDG, Series EDJ |
| Circuit Breaker Type | Bolt On |
| Connections Terminals | Lug Line 6 AWG to 350 kcmil Aluminium, Lug Neutral 6 AWG to 350 kcmil Aluminium |
| Depth | 5 3/4" |
| Enclosure Nominal Depth | 5.75", 6.5" |
| Enclosure Nominal Height | 38", 50" |
| Enclosure Nominal Width | 20" |
| For Use With | NF Circuit Breakers |
| Height | 33" |
| Iu Rated Interrupted Amps | 65 kA |
| Line Rated Amps | 250A |
| Main Circuit Breaker Or Main Lug | Convertible, Main Lug |
| No. Of Spaces | 30 |
| Number Of Phases | 3 |
| Number Of Spaces | 30 |
| Panelboard Type | Main Lugs |
| Phase | 3 |
| Recommended Enclosure | 1D700 For Main Breaker, 6B429 For Main Lug |
| Recommended Flush Cover | 4HGZ9 For Main Lug, 4HHA1 For Main Breaker |
| Recommended Surface Cover | 3TX80 For Main Lug, 3TX84 For Main Breaker |
| Returnability | Yes |
| Short Circuit Amps Rating | 100000 RMS Symmetrical |
| Short Circuit Current Rating | 100000 Rms Symmetrical |
| Tightening Torque | 40.005-50.007 lbf.in (4.52-5.65 N.m) 0.02-0.10 sq. in., (13.30-67.43 sq. mm) (AWG 6 AWG to 2/0), 100 lbf.in (11.3 N.m) 0.02-0.10 sq. in., (13.30-67.43 sq. mm) (AWG 6 AWG to 2/0), 274.99 lbf.in (31.07 N.m) 0.02-0.3 sq. in., (13.30-177.3 sq. mm) (AWG 6 AWG to 350 kcmil), 274.99 lbf.in (31.07 N.m) 0.02-0.2 sq. in., (13.30-126.7 sq. mm) (AWG 6 AWG to 250 kcmil), 274.99 lbf.in (31.07 N.m) 0.2-0.2 sq. in., (107.2-152 sq. mm) (AWG 4 AWG to 300 kcmil) |
| Voltage | 277/480V AC |
| Voltage Rating | 600/347V AC |
| Width | 10 7/16" , 10.44" |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 83.82 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 26.51 |
| Country of Origin | MX |
Product Variants
| Product | Model | Height | Phase | Amps | Bus Material | Voltage | Recommended Ground Bar Kit | Main Circuit Breaker Or Main Lug | Short Circuit Amps Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HCR86TS | 86" | - | - | - | - | - | - | - | €2,109.20 | |
 |
NQ484L4C | 63" | - | - | - | - | - | - | - | €6,562.12 | |
 |
NQ472L2C | 39" | - | - | - | - | - | - | - | €4,180.25 | |
 |
HCP54868SU | 65.4" | - | - | Copper | - | - | - | - | €7,408.18 | |
 |
HCP235912N | 39" | - | - | Copper | - | - | - | - | €10,081.05 | |
 |
NQFTL4H | - | - | - | - | - | - | - | - | €967.23 | |
 |
NQFTL2L | - | - | - | - | - | - | - | - | €793.48 |
