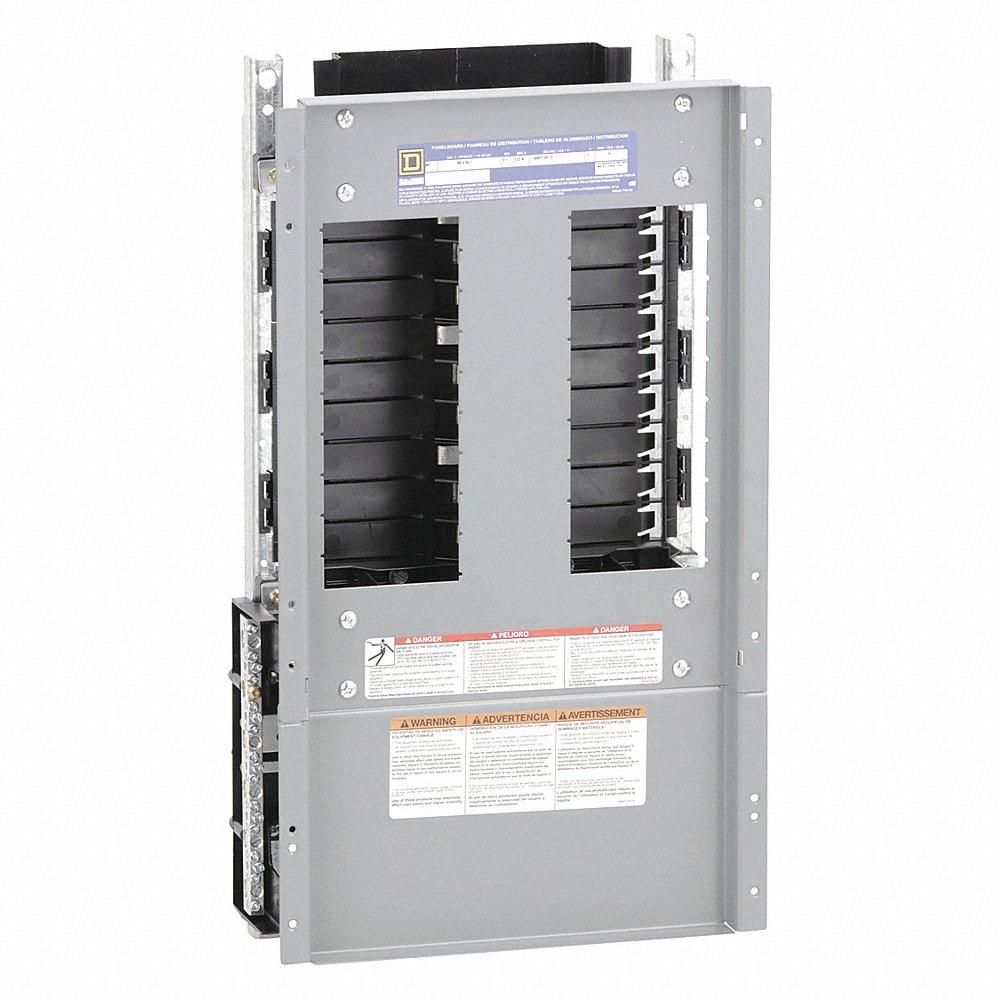

SQUARE D NF418L1 Panelboard, 18 Spaces, 125 A, Aluminum, 21 Inch Height, 10.4375 Inch Width
Get it by Tuesday, Mar 31
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,668.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panelboard |
| Amps | 125A |
| Branch Circuit Breaker Type | EDB, EDG, EDJ |
| Bus Material | Aluminum |
| Busbar Material | Aluminium |
| Circuit Breaker Series | Series EDB, Series EDG, Series EDJ |
| Circuit Breaker Type | Bolt On |
| Connections Terminals | Lug Line 6 AWG to 2/0 AWG Aluminium/Copper, Lug Neutral 6 AWG to 2/0 AWG Aluminium |
| Depth | 5 3/4" |
| Enclosure Nominal Depth | 5.75", 6.5" |
| Enclosure Nominal Height | 26", 38" |
| Enclosure Nominal Width | 20" |
| For Use With | NF Circuit Breakers |
| Height | 21" |
| Iu Rated Interrupted Amps | 65 kA |
| Line Rated Amps | 125A |
| Main Circuit Breaker Or Main Lug | Convertible, Main Lug |
| No. Of Spaces | 18 |
| Number Of Phases | 3 |
| Number Of Spaces | 18 |
| Panelboard Type | Main Lugs |
| Phase | 3 |
| Recommended Enclosure | 1D687 For Main Lug, 6B429 For Main Breaker |
| Recommended Flush Cover | 3TX77 For Main Lug, 3TX81 For Main Breaker |
| Recommended Surface Cover | 3TX78 For Main Lug, 3TX82 For Main Breaker |
| Returnability | Yes |
| Short Circuit Amps Rating | 100000 RMS Symmetrical |
| Short Circuit Current Rating | 100000 Rms Symmetrical |
| Tightening Torque | 40.005 lbf.in. to 50.007 lbf.in. @ 0.02 sq. in. to 0.10 sq. in. @ 6 AWG to 2/0 AWG, 100.01 lbf.in. @ 0.02 sq. in. to 0.10 sq. in. @ 6 AWG to 2/0 AWG, 274.99 lbf.in. @ 0.02 sq. in. to 0.3 sq. in. @ 6 AWG to 350 kcmil, 274.99 lbf.in. @ 0.02 sq. in. to 0.2 sq. in. @ 6 AWG to 250 kcmil AWG, 274.99 lbf.in. @ 0.2 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Voltage | 277/480V AC |
| Voltage Rating | 600/347V AC |
| Width | 10 7/16" , 10.44" |
Shipping Info:
| Ship weight (kg) | 6.48 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 26.51 |
| Country of Origin | MX |
