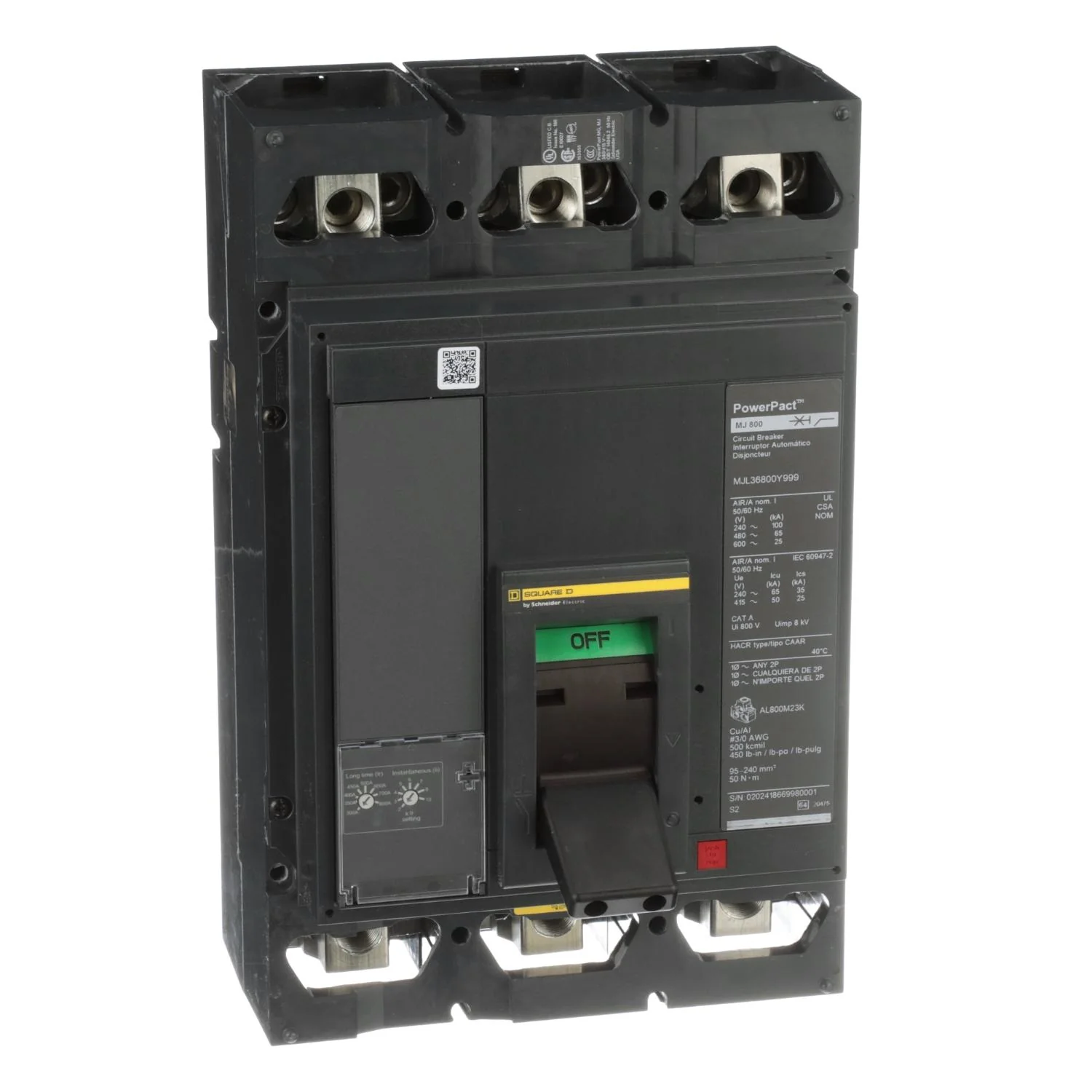

SQUARE D MGL36800E10 Circuit Breaker, 800A, 600V, 3 Pole, MGL Frame Type
Item: EC2QFNModel: MGL36800E10
In Stock : 8 Units Get it by Thursday, Aug 20
5.00% off
€7,287.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Accessory/separate Part Type | Communication Module |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Breaking Capacity Code | G |
| Color | Black |
| Comm Code Enhanced | 32732 |
| Communication Interface | Modbus |
| Connection Type | Feed Thru |
| Continuous Amps | 80% |
| Depth | 8.05" |
| Discount Schedule | 0DE2 |
| Electrical Connection | Lugs, Load, Line |
| Family Series | Square D Miscellaneous |
| Frame Type | Mgl |
| Height | 12.86" |
| Ics Rated Service Breaking Capacity | 25 kA 240V AC 50/60 Hz, 20 kA 380/415V AC 50/60 Hz |
| Interrupt Rating | 35 kAIC @ 480V |
| Ip Degree Of Protection | IP40 |
| Magnetic Tripping Amps | 1600/8000A |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Mounting Type | Unit |
| No. Of Poles | 3P |
| No. Of Slots | 4 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 13123.36 ft. (4000m) With Derating |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Series | MGL Series |
| Suitability For Isolation | Yes |
| Terminal Connection | Line And Load Side Lug |
| Terminal Identifier | AL800M23K |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 600V AC |
| Width | 8.27" |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 21.01 |
| Ship length (cm) | 32.66 |
| Ship width (cm) | 20.45 |
